In many FTTH and FTTx rollouts, the aerial fiber distribution box is treated as a routine accessory. It is smaller than a feeder cabinet and less expensive than a major splice closure, so it can be easy to leave the selection until the last stage of procurement. In field deployment, however, this box is often the handoff point between a planned optical distribution network and the real conditions faced by installers on poles, walls, building edges, and narrow outdoor routes.
A well specified aerial fiber distribution box helps crews route feeder and drop cables cleanly, protect splices, manage splitter modules, and reopen the network for maintenance without disturbing every subscriber connection. A poorly matched box can create cable stress, crowded trays, weak sealing, unclear port assignments, and extra truck rolls. For B2B buyers, contractors, and OEM/ODM telecom project teams, the right selection starts with understanding how the box will actually be used in the ODN.
Define the Role of the Box in the ODN

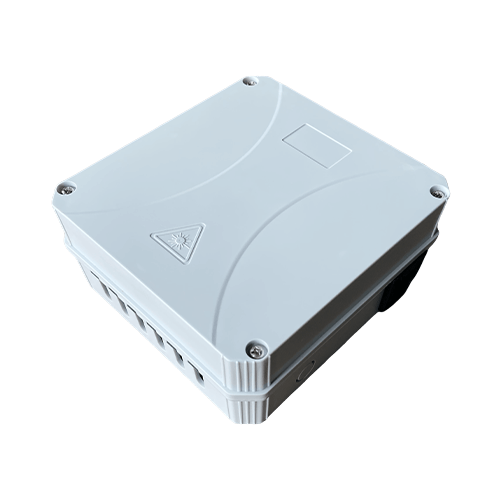

Before comparing models, confirm the network role. Some aerial boxes are used primarily as distribution points for drop cables. Others combine splicing, storage, splitter accommodation, and branch routing. A 48-fiber aerial distribution box, for example, may be used where a feeder route must serve multiple subscriber clusters while still leaving space for future activation.
The specification should answer four practical questions: how many feeder fibers enter the box, how many drop cables leave it, whether optical splitters are required inside, and how often technicians will need to reopen the enclosure. These questions shape the port count, tray layout, cable glands, and internal slack management. They also prevent overbuying a large enclosure where a compact terminal is enough, or under-sizing a box that will be overloaded within the first expansion phase.
Match Fiber Capacity to Real Subscriber Growth
Capacity should not be calculated only from the first installation phase. Aerial distribution points often remain in service for many years, while subscriber density can rise as take-up improves. If the initial design serves 12 or 24 drops but the area can realistically grow to 36 or 48 connections, the box should provide a clean upgrade path instead of forcing replacement work later.
For procurement teams, this means checking both rated fiber capacity and usable working space. A product may list a high fiber count, but the internal structure must still allow technicians to identify, splice, store, and inspect fibers without excessive bending or crossovers. Clear tray organization, stable splice holder positions, and visible routing channels are more important than a high number printed on a datasheet.
Check Cable Entry, Drop Ports, and Bend Radius
Aerial FTTH installations place special stress on cable management because the enclosure is exposed to gravity, wind movement, and repeated field handling. The cable entry system should secure feeder and branch cables without crushing the jacket. Drop ports should be arranged so installers can add or replace subscriber lines without forcing sharp turns around existing cables.
Bend-radius control is a key detail. Fiber damage is not always immediate; microbends can create intermittent loss that appears later as service instability. A suitable box guides the cable path from entry point to splice tray or adapter area with smooth curves and enough slack storage. When evaluating samples, project engineers should open the box and follow the complete cable route, not just inspect the outside housing.
Evaluate Sealing and Outdoor Durability
Outdoor aerial boxes must handle rain, dust, UV exposure, temperature changes, and sometimes insects or polluted air. The required protection level depends on local conditions, but buyers should always verify how the enclosure seals around cable entries and covers. A good shell design is only useful if the cable ports, locks, and gasket areas remain reliable after installation.
For coastal, tropical, or dusty regions, sealing quality becomes even more important. Field teams should avoid makeshift sealing methods that depend too heavily on tape or sealant. A repeatable mechanical sealing structure, matched cable glands, and clear installation instructions make it easier to achieve consistent quality across many sites and crews.
Consider Mounting Conditions Before Ordering
An aerial distribution box may be mounted on a pole, fixed to a wall, attached near a building facade, or installed on route hardware supplied by the operator. Mounting brackets and enclosure orientation should therefore be reviewed before mass procurement. The box should be stable, accessible, and positioned so cables enter naturally without pulling against the ports.
Maintenance access is part of the mounting decision. If the cover opens in a direction blocked by the pole or adjacent hardware, technicians may need more time on site or may disturb nearby cables. For projects with many repeated installations, a small ergonomic problem can become a significant labor cost. Procurement should ask for bracket drawings, installation photos, or samples when the mounting environment is unusual.
Plan for Splitters, Adapters, and Identification
Many FTTH distribution points require PLC splitters, adapters, or pre-assigned drop cable identification. If the aerial box is expected to hold a splitter, confirm the splitter type, package size, mounting position, and fiber routing path. The design should make it easy to distinguish feeder input, splitter output, reserved ports, and active subscriber drops.
Labeling also deserves attention. A clean identification system reduces mistakes during activation and maintenance. Port numbering should remain visible after cables are installed, and the internal structure should avoid crossing multiple drop fibers over the same working area. For OEM/ODM projects, buyers can often request customized labels, logos, color details, packaging, or installation accessories so that the product aligns with the operator's field standards.
Review Field Maintenance and Re-entry
Unlike some buried closures, aerial boxes may be reopened frequently as subscribers are added or repaired. The closure mechanism should support repeated access without damaging the gasket or loosening the shell. Screws, latches, hinges, and cover design all affect field productivity.
Technicians should be able to open the box, identify the target fiber, complete the work, and close the enclosure without disturbing unrelated service lines. This is why internal slack storage and tray separation matter. A box that looks compact and neat when empty may become difficult to service once every drop port is active.
Use Product Samples to Validate the Specification
Datasheets are useful, but field validation is stronger. Before committing to a large procurement program, ask suppliers for samples that can be checked against real cables, splice protectors, splitter modules, and mounting hardware. Run a small installation simulation: bring feeder cable into the box, route several drop cables, place splice sleeves, close the cover, and confirm that the fibers remain organized.
This process reveals practical issues early, such as tight cable glands, unclear tray access, insufficient slack space, or mounting hardware that does not match the site. It also gives installers a chance to provide feedback before the final purchase order. For telecom projects where delivery schedules are tight, confirming these details early can prevent delays during rollout.
Why Fibermint Supports Project-Based Selection
Fibermint supplies fiber distribution boxes, fiber access terminals, splice closures, wall outlets, floor boxes, and passive optical components for FTTH and FTTx applications. For aerial distribution points, the selection can be matched to project capacity, port layout, mounting method, cable type, and branding requirements.
For procurement teams and network planners, the goal is not simply to choose a box with the right fiber count. The goal is to specify an enclosure that installers can deploy efficiently and operators can maintain confidently over the full service life of the network. When capacity planning, cable management, sealing, and field access are reviewed together, the aerial fiber distribution box becomes a reliable part of the ODN rather than a future maintenance problem.
If your project requires a customized aerial fiber distribution box or a broader FTTH passive network product package, Fibermint can support model selection, OEM/ODM requirements, and project-oriented supply planning.
