Introduction to High-Capacity Fiber Splice Closures

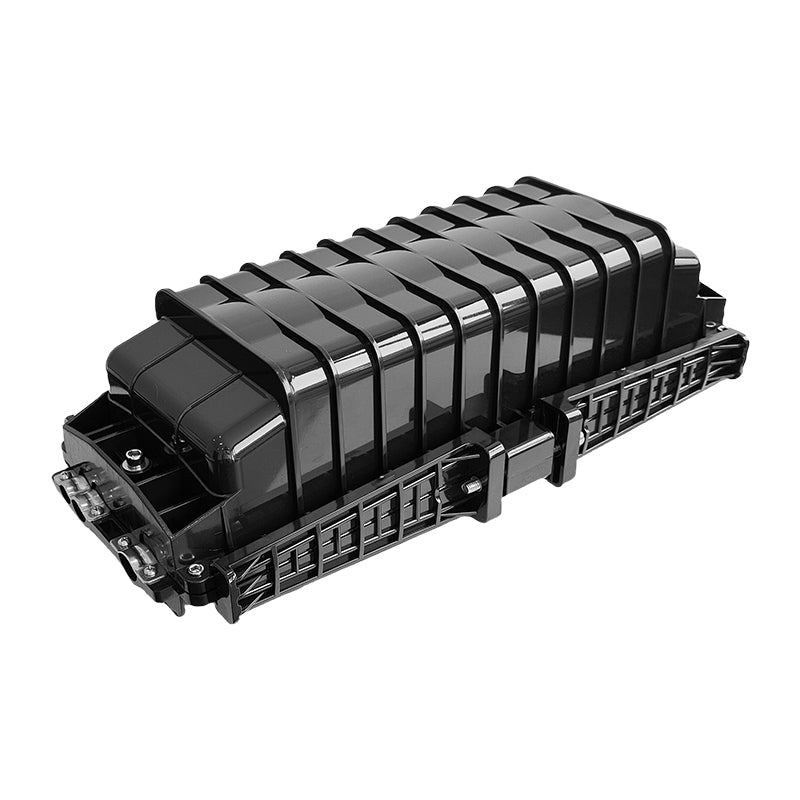

In the rapidly evolving landscape of fiber optic communications, network infrastructure demands components that combine reliability, capacity, and adaptability. The GJS-H3350C-12T 576F 3 Ports Fiber Optic Splice Closure emerges as a comprehensive solution designed to address the complex splicing requirements of modern FTTH (Fiber to the Home) deployments and broader telecommunications networks.
Key Features and Specifications
The GJS-H3350C-12T distinguishes itself through an impressive array of technical specifications that cater to demanding outdoor environments. At its core, the enclosure supports up to 576 fibers through 12 strategically designed splice trays, each accommodating 24-48 fusion splices. This exceptional capacity positions the closure as an ideal choice for backbone network installations and high-density distribution points.
The housing construction utilizes either PC (polycarbonate) or PC+ABS materials, selected for their outstanding resistance to environmental stressors. These engineering thermoplastics provide superior protection against UV radiation, temperature extremes, chemical exposure, and mechanical impacts—ensuring decades of reliable service in the harshest conditions.
Mechanical Specifications
- Part Number: GJS-H3350C-12T
- Dimensions: 495×175×160 mm (19.49×6.89×6.30 inches)
- Housing Material: PC or PC+ABS
- IP Rating: IP68 (dust-tight and waterproof)
- Cable Sealing: Rubber grommet system
- Mounting Options: Aerial or direct-buried installation
Optical Specifications
- Cable Ports: 3 ports (configurable as 3 inlets + 3 outlets)
- Cable Diameters: Mixed entry points (2×Ø16 mm + 4×Ø23 mm)
- Splicing Capacity: 576 fibers maximum
- Splice Trays: 12 trays
Applications in Modern Network Infrastructure
The versatility of the GJS-H3350C-12T enables deployment across diverse scenarios within telecommunications and broadband networks. Its primary applications include:
Outside Plant Networks
As fiber networks extend beyond central offices into outdoor environments, splice closures become critical infrastructure components. The GJS-H3350C-12T provides robust protection for fiber splices at junction points, serving as interconnection hubs between trunk and distribution cables. Its mechanical sealing technology eliminates the need for inflation valves, reducing maintenance requirements while maintaining reliable environmental protection.
FTTH Access Networks
The proliferation of FTTH deployments worldwide has created unprecedented demand for high-capacity splice enclosures at distribution points. The 576-fiber capacity of the GJS-H3350C-12T allows network architects to consolidate multiple distribution points into single, manageable locations—streamlining network topology while reducing infrastructure costs.
Telecom Backbone Extensions
For telecom operators expanding backbone infrastructure, the GJS-H3350C-12T offers an efficient solution for managing straight-through and branch splicing applications. Its flexible port configuration accommodates various cable sizes and configurations, simplifying the integration of new segments into existing networks.
Design Advantages for Network Operators
Dual Sealing Technology
The closure implements a sophisticated dual-sealing approach that ensures comprehensive environmental protection. Silicone seals at cable entry points work in conjunction with mechanical seals on the closure body, creating multiple barriers against moisture and particulate intrusion. This redundant protection system delivers the IP68 rating required for direct burial and underwater applications.
Installation Flexibility
Network construction teams benefit from the closure's adaptable installation options. The standard configuration supports aerial mounting via optional hanging kits, while the robust mechanical design accommodates direct burial without additional protection measures. This flexibility reduces inventory complexity and simplifies logistics for large-scale deployment projects.
Maintenance Efficiency
The transparent splice tray covers enable rapid visual inspection without disassembly, facilitating routine maintenance procedures. Reusable sealing components further reduce lifecycle costs by eliminating the need for replacement parts during routine access. These design considerations translate to lower total cost of ownership throughout the product's operational life.
Quality Assurance and Standards Compliance
As part of the FIBERMINT product family, the GJS-H3350C-12T undergoes rigorous quality testing to ensure consistent performance across production batches. The enclosure meets international standards for fiber optic closure performance, providing network operators with confidence in its long-term reliability.
Conclusion
For telecommunications professionals seeking a high-capacity, environmentally protected splice enclosure, the GJS-H3350C-12T delivers exceptional value through its comprehensive feature set and versatile deployment options. With 576-fiber capacity, IP68 environmental protection, and flexible installation configurations, this closure addresses the requirements of demanding FTTH and telecom infrastructure projects.
Ready to explore how the GJS-H3350C-12T can support your network deployment? Visit our product page for detailed specifications and technical documentation, or contact our sales team to discuss your project requirements.
