Why Splitter Ratio Selection Matters More Than Many Buyers Expect
In an FTTH or FTTX build, the passive optical splitter is not just a line item on a bill of materials. It directly shapes how the optical distribution network will be routed, how many splices and ports will be required, how much reserve capacity remains for future subscribers, and how much insertion loss the system must absorb. For procurement teams, EPC contractors, and network planners, choosing the wrong splitter architecture can create hidden cost long after the components arrive on site.
Many projects begin with a simple question: should the network use a single-stage split such as 1:32, or a cascaded split such as 1:4 followed by 1:8? The answer depends on subscriber density, feeder fiber availability, cabinet locations, and the service model. A dense greenfield community, a rural access extension, and a multi-dwelling unit deployment often require different splitter strategies even when they use the same OLT platform.
This is where disciplined specification matters. A well-chosen PLC splitter plan improves installation reliability, reduces unnecessary field rework, and gives operators a cleaner path for growth. It also helps sourcing teams compare products on meaningful criteria instead of focusing only on connector count or unit price.
Start with Network Topology, Not with the Splitter Catalog
The most practical way to choose a splitter ratio is to begin with the planned ODN topology. Before selecting any passive optical component, define where splitting will happen, how many homes or business endpoints are expected per service area, and whether future expansion needs to be preserved inside the same cabinet or terminal.
For example, centralized splitting usually places a larger ratio splitter in one accessible location, often an FDH, fiber distribution cabinet, or hub enclosure. This structure simplifies documentation and maintenance because technicians can trace most subscriber connections back to one site. It can also reduce the number of field locations that need splitter inventory. However, centralized designs may consume more distribution fibers and require larger cabinets.
Cascaded splitting distributes the split across two stages. A common example is a 1:4 splitter in the feeder segment followed by a 1:8 splitter closer to subscribers, creating an effective 1:32 architecture. This approach can conserve feeder fibers and improve routing flexibility in dispersed service areas. The tradeoff is higher design complexity, more splice planning, and stricter control of total loss budget and documentation quality.
That is why experienced buyers ask the topology question first: where will the network benefit from consolidation, and where will it benefit from flexibility?
How to Compare Common Split Ratios in Real Projects
1:4 and 1:8 for early-stage branching
Lower split ratios such as 1:4 and 1:8 are often used when planners want to preserve optical margin and retain flexibility deeper in the network. They are useful in staged builds, premium enterprise access, and first-stage cascade designs. Because insertion loss is relatively lower, these ratios help when route length, splice count, or connector count is already significant.
1:16 and 1:32 for balanced FTTH distribution
For many mainstream GPON and XGS-PON deployments, 1:16 and 1:32 remain the most practical choices. They provide a strong balance between subscriber density and optical performance. A 1:32 split is common in urban and suburban FTTH where take-up assumptions are clear and cabinet access is manageable. It supports efficient port utilization while remaining easier to engineer than very high split counts.
1:64 when density is high and the budget is disciplined
A 1:64 split can improve equipment efficiency in dense service zones, but it leaves less room for accumulated loss from connectors, splices, aging, and route variation. This ratio should be chosen only when planners are confident about optical budget, field workmanship, and future service expectations. In many cases, a slightly lower ratio produces a more robust network over the project lifecycle.
Optical Budget Discipline Should Drive the Final Decision
No splitter ratio should be approved in isolation. The practical decision must account for total end-to-end loss, including splitter insertion loss, fiber attenuation, splice loss, connector loss, engineering reserve, and maintenance margin. This is particularly important in cascaded architectures, where two passive split stages can quietly consume more budget than expected if field assumptions are optimistic.
Buyers working on OEM or ODM telecom projects should request realistic loss data, not only nominal values. Production consistency, connector quality, packaging method, and installation environment all affect deployed performance. A specification that looks acceptable on paper can become risky if there is no allowance for route changes, seasonal maintenance, or emergency restoration splicing.
For this reason, serious project teams often standardize a margin policy before procurement. They decide how much reserve must remain after normal design assumptions are applied, then select the split structure that still satisfies that policy. This approach leads to more reliable acceptance outcomes and fewer redesigns during construction.
Why Packaging Format Matters in ODN Cabinets, Boxes, and Closures
Once ratio and architecture are set, packaging becomes the next procurement priority. The same optical splitter function can be delivered in bare fiber, micro steel tube, ABS box, LGX cassette, or rack-mounted formats. The right choice depends on where the component will be installed and how technicians will manage slack, splicing, and routing.
For compact assemblies and custom integration, bare type micro PLC splitters are especially useful. They fit well inside splice closures, compact fiber distribution boxes, access terminals, and bespoke ODN modules where space efficiency matters. In OEM projects, they also give manufacturers more freedom to integrate splitter capacity into enclosure designs without wasting volume on oversized housing.

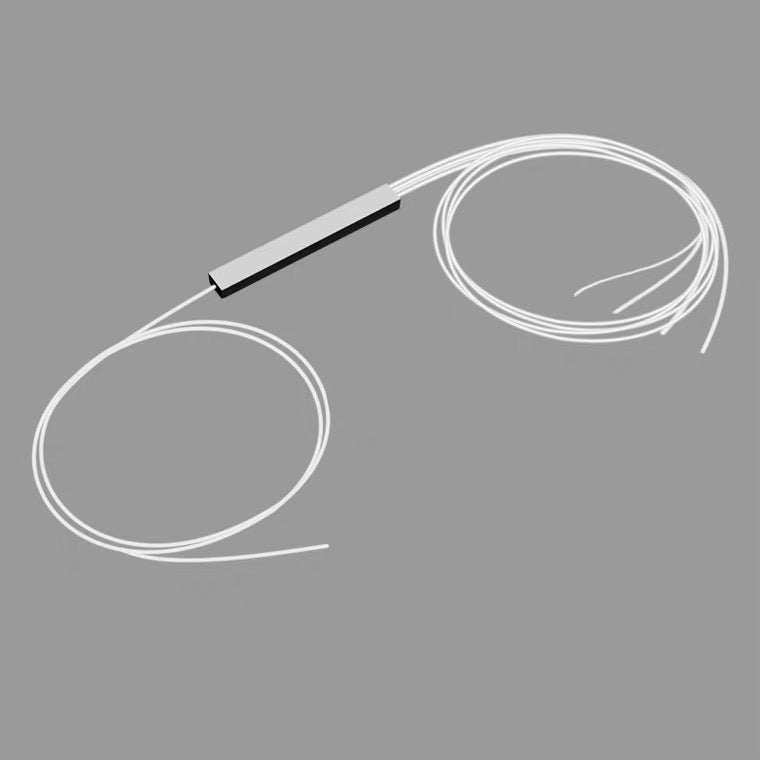

This is one reason Fibermint's bare type micro PLC splitter image is highly relevant to planners. It represents the packaging style often preferred when projects need a scalable passive core that can be adapted into different enclosure platforms. For buyers supplying multiple markets or private-label programs, that flexibility can simplify sourcing across several product families.
Questions B2B Buyers Should Ask Suppliers Before Ordering
Reliable procurement depends on more than ratio and price. Buyers should confirm fiber type, connector options, uniformity, return loss, wavelength range, operating temperature, and packaging tolerance. They should also ask whether the supplier can support labeling conventions, custom pigtail lengths, splitter placement diagrams, and integration into distribution boxes or closures intended for local market standards.
Lead time and assembly support matter just as much. If a contractor is sourcing a turnkey package that includes closures, FATs, wall outlets, and passive splitters, the best supplier is often the one that can align all passive components to one project schedule and one documentation workflow. That reduces interface risk and helps site teams install faster.
For larger telecom bids, it is also worth checking whether the supplier can support sample validation, OEM branding, carton labeling, and mixed-container planning. These details do not change optical theory, but they heavily influence whether a deployment stays on schedule.
A Practical Selection Framework for FTTH Procurement Teams
A useful framework is to evaluate splitter choices in five layers: service density, ODN topology, optical budget, installation environment, and expansion plan. If density is uncertain, avoid overspecifying a high split ratio too early. If cabinet space is limited, prioritize packaging formats that integrate cleanly. If field labor is scarce, favor architectures that reduce splice complexity and simplify documentation.
In many cases, the best commercial outcome comes from combining sound engineering with modular product selection. A standardized splitter family that can serve central cabinets, terminals, and closure assemblies makes future procurement easier and improves consistency across projects. This is particularly valuable for B2B buyers handling regional rollouts, subcontracted builds, or repeated OEM tenders.
Choosing PLC splitter ratios is ultimately about building a network that performs reliably after installation, not only passing an initial design review. When planners match ratio, packaging, and topology carefully, they gain a more resilient ODN and a more predictable procurement process.
