Mid-span access is a common way to branch fibers from an FTTH feeder cable without cutting every fiber in the cable. The installer opens a controlled section of the sheath, routes the required buffer tubes into splice trays, and leaves the remaining express fibers continuous. Done well, this method reduces splice loss, saves labor, and preserves capacity for later expansion. Done poorly, it can create cable stress, overcrowded trays, and a leak path at the closure entrance.
For procurement teams, the important point is that mid-span capability is not just a checkbox on a closure data sheet. Reliable performance depends on the relationship between the cable construction, entry-port geometry, sealing kit, internal routing space, and field procedure. The following criteria help buyers specify a fiber optic splice closure that can be installed consistently across an ODN project.
Start with the Actual Branching Scenario
Define where the closure sits and how technicians will use it. An aerial closure may face wind-driven movement and repeated temperature cycling. A handhole installation may experience standing water. A pole-mounted closure needs practical cable routing and secure bracket points. The same enclosure body can behave differently in each environment because cable movement, access space, and water exposure change.
Next, document the feeder cable and branch cables. Include outside diameter, jacket material, armor type, central strength member, buffer-tube count, fiber count, and minimum bend radius. State whether the feeder enters and exits as a loop or whether two separate cable ends are used. For a true mid-span loop, provide the required sheath-opening length and the maximum loop diameter that installers can prepare in the field.
Match Port Geometry to the Cable Loop
A closure may offer enough total ports but still be unsuitable for mid-span work. The feeder loop normally needs an oval port, split port, or another entrance designed to accept two parallel cable legs. Confirm the usable dimensions of that port after all seal components are installed. Nominal port size alone does not prove that two cables, armor layers, and sealing materials will fit.
Branch ports should be planned for the initial build and realistic growth. Reserve capacity is valuable, but unused ports must have purpose-designed plugs and the same environmental protection expected from active ports. Field-drilled holes and improvised fillers introduce avoidable variability. A clear port map in the project specification helps the factory supply the correct plugs, clamps, grommets, and accessories for every closure.
Select the Sealing Method for Field Conditions
Mechanical seals
Mechanical or gel-based seals can support fast installation and convenient re-entry. They are useful where crews need to add drops or branches over time. Buyers should verify supported cable-diameter ranges, whether grommets are split for uncut cables, and how compression is controlled. A seal designed for one cable diameter should not be stretched beyond its qualified range.
Heat-shrink seals
Heat-shrink systems can provide robust sealing when installed by trained technicians with the correct torch procedure and cable preparation. They may suit long-term feeder joints with fewer planned interventions. Procurement specifications should include the required sleeves, branch clips, cleaning materials, abrasion strips, and installation instructions. Local restrictions on open flames and confined-space work also need consideration.
Neither method is automatically superior. The better choice is the one that matches re-entry frequency, technician skills, approved tools, cable variation, and environmental exposure. For mixed networks, operators may standardize different closure configurations for feeder joints and frequently accessed distribution points.
Control Cable Loads Before They Reach the Seal
The seal should block water; it should not carry all axial and torsional cable loads. Each cable needs a compatible clamp, and strength members need positive anchoring. For armored cable, define whether the armor is bonded, isolated, or grounded according to the network design and local rules. Request photographs or drawings showing the complete retention path rather than only the external enclosure.
Inside the closure, buffer tubes should transition smoothly from the cable entry to the trays. Sharp turns near the port can create hidden attenuation, especially after the cover compresses internal components. Check the routing path with the maximum planned number of tubes, not an empty demonstration unit. Tube storage, protective sleeves, tie points, and bend-radius controls should remain usable after future branches are added.
Coordinate Splice Capacity with Express-Fiber Storage
A stated capacity of 144 or 288 fibers usually describes splice positions, but a mid-span application also needs space for continuous buffer tubes or ribbon units. Express storage can become the limiting factor before tray capacity is reached. Ask the supplier to validate the proposed configuration using the actual tube count and opening length.
Tray planning should separate active branches from reserved fibers in a logical sequence. Labels must remain readable, and technicians should be able to reach one tray without disturbing every stored loop. Confirm tray hinge direction, splitter accommodation if required, splice-protector type, and the capacity per tray. These small details affect restoration time and repeatability in the field.
Specify Environmental and Re-Entry Verification
Ingress-protection claims are useful, but project approval should include an assembled test with representative cables and the intended seal kit. Ask how the closure is pressure-tested or leak-checked after installation. Where repeated access is expected, determine which seal components are reusable and which must be replaced. Replacement kits should have traceable part numbers and be included in spare-parts planning.
Material resistance also matters. Housing plastics, stainless hardware, rubber components, and UV exposure should suit the deployment region. In coastal or industrial areas, corrosion resistance deserves specific attention. For underground applications, evaluate water immersion and the possibility of contaminants in handholes rather than relying only on an indoor-style inspection.
Build an Approval Sample That Mirrors the Project
For OEM or ODM telecom projects, approve a fully configured sample rather than a bare shell. The sample should include the correct tray count, port seals, cable clamps, strength-member hardware, grounding parts, mounting bracket, labels, plugs, and installation consumables. Use representative feeder and branch cable sections during evaluation.
A practical approval checklist should record cable diameters, loop-opening length, port allocation, sealing method, tray loading, express-storage method, closure dimensions, mounting orientation, and required tools. Technicians should perform at least one installation and re-entry trial. Their feedback often identifies access problems that drawings cannot show, such as difficult clamp screws or insufficient tube-routing clearance.
Reduce Total Project Risk Through Configuration Control
Many closure failures begin with a mismatch between a generic purchase description and the real field configuration. A model name and fiber count are not enough. The purchase order should reference an approved configuration code or bill of materials so the production unit contains exactly the components tested during approval.

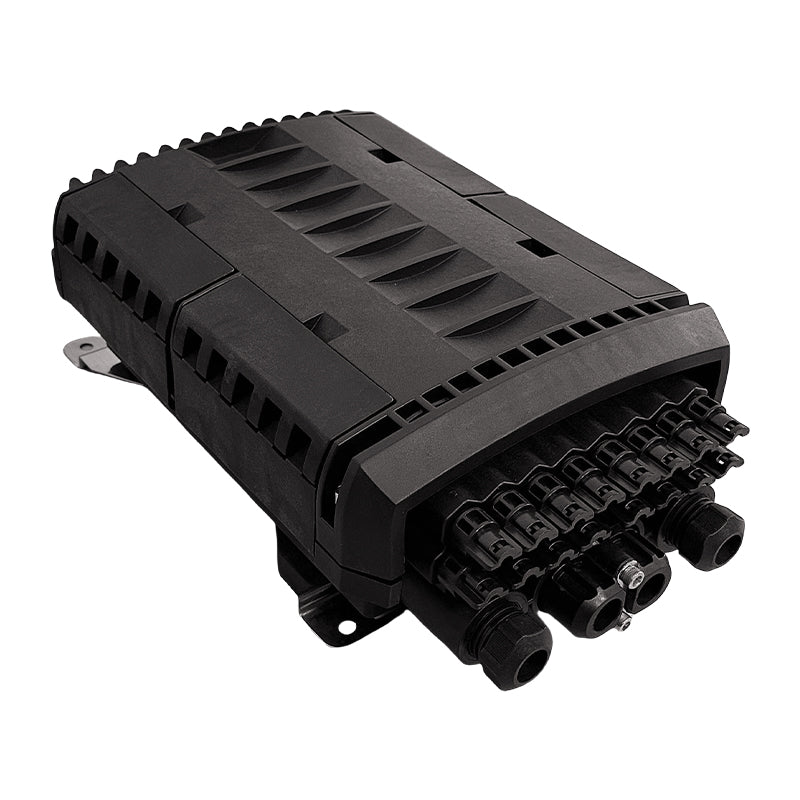

Fibermint supports fiber optic splice closure selection and OEM/ODM configuration for FTTH and FTTX networks. Sharing cable drawings, diameter ranges, fiber architecture, installation environment, and expected re-entry cycle early allows the enclosure and accessory kit to be reviewed as a complete system. That preparation helps contractors install consistently, protects the ODN from water and mechanical stress, and makes future branching easier to plan.
