Outdoor fiber distribution boxes are often treated as a simple enclosure purchase. In a live FTTH rollout, however, they protect the point where feeder fibers, splitters, drop cables, adapters, and splices must remain organized and accessible for years. A poorly specified box can turn routine weather exposure or a later subscriber connection into water ingress, strained fibers, difficult fault isolation, and expensive truck rolls.
For telecom contractors, network owners, and OEM/ODM buyers, the right question is not only “What core count do we need?” It is “What enclosure and internal configuration will keep this location serviceable throughout its operating life?” A disciplined specification aligns the box with the environment, cable architecture, installation method, and maintenance model before product comparison begins.
Start with the actual installation environment
Outdoor does not describe one condition. A wall-mounted box below a building eave faces a different risk profile from a pole-mounted box beside a coastal road or a cabinet installed in a hot, dusty industrial zone. Record the location type, sun exposure, rainfall pattern, humidity, wind-driven debris, salt fog, and likelihood of standing water or washdown. These details determine which protection claims deserve priority.
Ingress protection should be reviewed as part of the installation system. An IP-rated enclosure is only effective when all cable ports are correctly sealed, unused entries are plugged, door gaskets are clean, and the intended mounting orientation is maintained. Ask the supplier to state the IP rating for the fully configured box and to identify the cable diameter range supported by each gland or sealing solution. This avoids a common mismatch: a nominally weatherproof enclosure paired with field cables that do not fit its entry hardware.
Material and UV resistance matter
For non-metallic enclosures, UV-stabilized engineering plastics help prevent embrittlement, color degradation, and loss of sealing performance under long-term sun exposure. For metal designs, corrosion-resistant coatings, stainless hardware, and protected cut edges are important. In coastal or industrial locations, request evidence of corrosion resistance appropriate to the project environment. Material selection also affects impact behavior in cold weather, so the required operating-temperature range should be written into the procurement specification.
Match cable entry to the network architecture
Fiber distribution boxes must accommodate the real cable plan, not just a theoretical maximum core count. List the feeder cable type and diameter, the number of pass-through or branch cables, drop-cable quantities, and whether mid-span access is needed. A box designed for a single feeder termination may be unsuitable when the construction team needs to loop a cable through and distribute fibers locally.
Specify separate expectations for feeder entries, drop outputs, and any pre-connectorized leads. A good layout provides clear routing paths with adequate bend-radius control from the entry point through the splice area and toward the adapter panel. It also prevents incoming and outgoing cables from competing for the same sealing space. When installation teams use flat drop cable, round drop cable, or hardened connectors, confirm the exact interface rather than relying on generic “drop port” language.
Protect fibers during every service event
Future work is where many enclosure designs reveal their weaknesses. Technicians need enough room to open a tray, identify a circuit, clean a connector, or add a drop cable without disturbing protected fibers. Review internal routing diagrams, tray access, slack-storage provisions, and labeling zones. For high-turnover access networks, features such as hinged adapter panels, independently accessible compartments, and clear port numbering can reduce intervention time and connection mistakes.
Specify capacity as usable capacity
Nameplate capacity can be misleading if it does not account for splitter modules, adapters, pigtail length, splice sleeves, and technician access. Define the required number of feeder fibers, splice positions, adapter ports, splitter ratios or module footprints, and active drop connections for the initial phase. Then add a deliberate expansion margin based on the rollout plan.
For example, a 12-core enclosure may provide twelve theoretical splice positions but offer limited room once a PLC splitter and connectorized outputs are installed. Ask for a configuration drawing showing the proposed tray count, adapter type, splitter location, and cable-entry allocation. This makes competing quotations comparable and reduces late redesigns on site.
Choose connector and splitter configurations deliberately
Distribution boxes may be splice-only, adapter-based, splitter-integrated, or pre-terminated. Each approach changes field labor, test points, and replacement strategy. Adapter panels can accelerate subscriber activation when connector cleaning and dust-cap discipline are strong. Splice-based outputs may suit projects that prioritize lower component cost or have established fusion-splicing crews. Pre-terminated or hardened interfaces can shorten installation time in repeatable outside-plant deployments.
State the connector standard, polish type, adapter color, pigtail length, and splitter format required. For PON projects, confirm that the splitter ratio supports the optical budget and subscriber-density plan; the enclosure must provide secure routing and protection for that chosen module. Suppliers should be able to provide insertion-loss data for passive components separately from the enclosure specification.
Make mounting and access part of the purchase decision
A distribution box that is easy to install at bench height may be awkward on a pole or narrow building façade. Identify the intended mounting surface and include brackets, straps, back plates, or pole hardware in the requested configuration. Check door opening direction, locking method, clearance for splice work, and whether a technician can access the lowest cable ports safely from the expected working position.
For multi-region programs, standardizing a small number of mounting configurations can simplify crew training and spare-parts management. It is worth confirming whether the same enclosure platform can support wall and pole installation with documented accessory kits. This improves consistency while allowing local construction conditions to vary.
Use a practical acceptance checklist
Before accepting a production batch, inspect a configured sample rather than an empty enclosure. Verify material and workmanship, gasket seating, cable-entry seals, hardware, labels, adapter alignment, tray operation, bend-radius management, and completeness of mounting accessories. Confirm that unused entries are sealed and that the installed configuration matches the approved drawing.
During pilot installation, have field teams record how long it takes to route the intended cables, perform splicing or connectorization, close the box, and re-enter it for a simulated maintenance task. Their observations often expose issues that a datasheet cannot: limited hand clearance, confusing port identification, or difficult gland tightening. Feed those findings into the final bill of materials before volume release.
Build a repeatable supplier specification
The most reliable procurement packages combine performance requirements with configuration control. Include the environmental rating, material, operating range, feeder and drop cable sizes, entry count, usable splice and adapter capacity, splitter format, connector interfaces, mounting accessories, labeling, and required test documentation. Request product drawings, installation instructions, and sample approval before mass production.

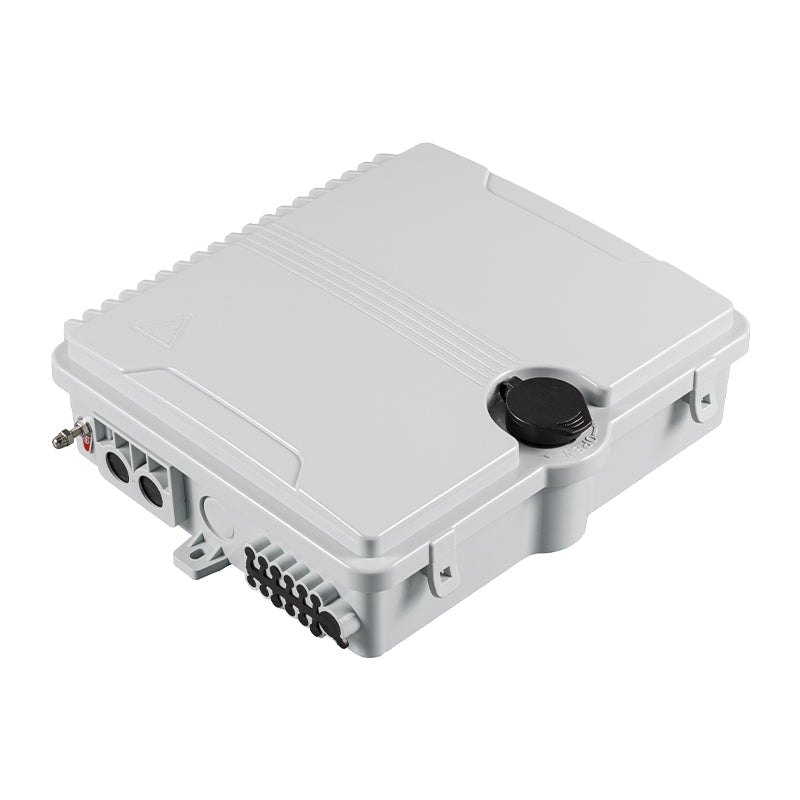

Fibermint fiber distribution box configurations can be adapted around FTTH network topology, cable interfaces, and project deployment practices. By specifying environmental protection together with usable internal capacity and installation workflow, buyers can protect the ODN investment long after the first subscriber is connected.
