Pre-connected fiber access terminals are becoming a practical choice for operators that need faster FTTH deployment, repeatable installation quality, and fewer field-splicing variables. Instead of treating the terminal as a simple enclosure, project teams should evaluate it as a complete interface between the distribution cable and subscriber drops. Connector type, port protection, cable routing, environmental sealing, and factory testing all affect long-term service reliability.
This guide explains how telecom buyers, network planners, and OEM project teams can specify and qualify a hardened fiber access terminal for real deployment conditions. The objective is not to select the highest port count on a datasheet. It is to match the terminal architecture to the network, installation method, workforce, and maintenance model.
Why Pre-Connected Terminals Change FTTH Installation
A conventional distribution point often requires enclosure preparation, cable stripping, fiber splicing, tray organization, adapter cleaning, and optical testing at the site. A pre-connected terminal moves more of this work into a controlled factory process. Technicians can install the terminal, route the feeder or branch cable, and connect hardened drop cables without opening the optical compartment for every activation.
This approach can reduce installation time and lower dependence on fusion-splicing resources. It also supports incremental subscriber activation because unused ports remain sealed until required. The benefit is especially relevant for aerial routes, pole-mounted networks, building exteriors, rural coverage, and projects where repeatable installation procedures are more valuable than maximum configuration flexibility.
Start with the Network Architecture
Define the terminal's role
Specify whether the terminal will be used as a distribution endpoint, a branch point, or a subscriber access point. Confirm whether the PLC splitter is located upstream, integrated inside the terminal, or omitted for point-to-point service. This decision affects internal space, splice capacity, optical loss budgeting, and maintenance access.
Match port count to take rate
Four-, eight-, ten-, and twelve-port terminals may all be technically suitable, but the correct choice depends on premises density and expected take rate. Oversizing every location increases equipment cost and leaves more unused interfaces in the field. Undersizing creates early augmentation work. Buyers should map each terminal location to passed homes, expected connections, spare capacity, and the physical reach of available drop cables.
Check connector compatibility
“Hardened connector” is not a complete specification. The procurement document should identify the exact interface family, optical polish, singlemode requirements, mating geometry, dust cap arrangement, and compatibility with the selected drop cable assembly. If interoperability with an existing network is required, request samples and complete physical mating plus insertion-loss tests before production approval.
Evaluate Mechanical and Environmental Design
The enclosure must protect fibers while remaining practical for installers. Review the ingress-protection target, UV resistance, operating temperature, material flame performance where applicable, and corrosion resistance of external hardware. The required level should reflect the real installation environment rather than a generic outdoor label.
Examine how the terminal manages cable tension and bending. Feeder anchoring should transfer mechanical load to the enclosure instead of the fiber path. Internal routing must maintain suitable bend radius from entry to splice tray, splitter, adapters, and output ports. Look for clear separation between storage, splicing, and connector areas so a technician cannot easily disturb live fibers during service.
Port caps are another critical detail. They should be tethered or otherwise controlled, easy to operate with gloves, and capable of maintaining the specified seal after repeated use. Mounting brackets and attachment points should support the intended pole, wall, strand, or pedestal installation without creating unstable loading.
Specify the Factory-Installed Optical Configuration
A useful request for quotation describes the optical configuration as a buildable assembly. Include feeder cable type and length, fiber count, pigtail and adapter format, splitter ratio when included, splice quantity, output connector type, and labeling scheme. State whether the terminal must arrive fully terminated and tested or whether limited field splicing is expected.
For OEM and ODM programs, define acceptable component brands or performance classes, housing color, molded or printed logos, barcode format, port numbering, packaging, and installation accessories. Golden samples should represent the approved bill of materials and workmanship standard. Any component substitution after approval should require written change control.
Build a Verification Plan Before Ordering
Optical inspection and measurement
Require documented insertion-loss and return-loss criteria that match the connector and network design. Test records should identify the unit or production lot, test wavelength, equipment, and pass criteria. End-face inspection and cleaning procedures are important because a factory-tested assembly can still fail in service if interfaces are contaminated during packaging or installation.
Environmental and mechanical qualification
Qualification should cover the risks relevant to deployment: water ingress, temperature cycling, UV exposure, cable pull, cable torsion, impact, connector retention, and repeated port operation. Not every order needs every laboratory test repeated, but the supplier should provide credible qualification evidence and maintain routine production controls.
Incoming inspection
Define sampling rules before shipment. Incoming checks can include model and label verification, accessory count, visual workmanship, cap engagement, mounting fit, random optical measurements, and packaging condition. A simple checklist shared between buyer and supplier prevents disputes about what “ready to install” means.
Use Installation Design to Protect Reliability
Even a well-qualified terminal depends on correct field practice. Installation instructions should specify mounting orientation, permitted cable entry direction, bend radius, slack storage, connector cleaning, cap handling, torque where relevant, and port activation sequence. Technicians need a clean method to open and close ports without transferring dust or moisture to the optical interface.
Asset identification also matters. A durable label or QR code can connect the terminal to GIS records, splitter paths, test results, and subscriber assignments. Consistent port numbering reduces activation errors and makes future fault isolation faster.
A Practical Procurement Checklist
Before approving a pre-connected FAT, confirm the network role, port count, splitter configuration, connector interface, cable assembly, environmental rating, mounting method, optical criteria, qualification evidence, production test records, labeling, accessories, packaging, and change-control process. Ask the supplier to explain each internal routing function on the golden sample rather than relying only on a specification sheet.

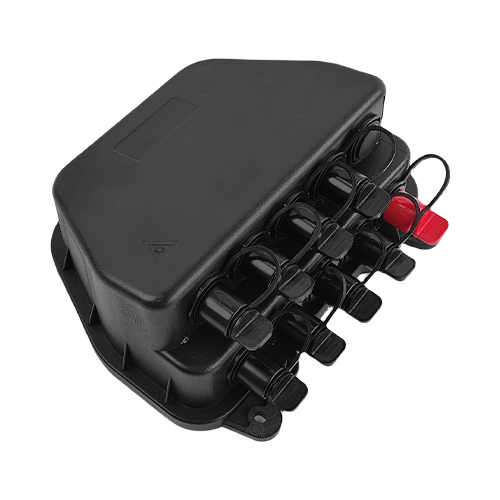

Fibermint's FAT-10B 10-port pre-connected fiber access terminal is an example of a compact access solution for FTTH distribution and subscriber connection points. For project-specific requirements, Fibermint can support configuration discussions covering ports, cable assemblies, labeling, packaging, and OEM or ODM needs. The strongest result comes from aligning the product configuration with the installation workflow and acceptance plan before volume production begins.
Conclusion
Pre-connected fiber access terminals can shorten field work and improve deployment consistency, but only when procurement covers the complete optical and mechanical system. Buyers should look beyond port count and enclosure appearance. A clear architecture, verified connector compatibility, controlled factory assembly, realistic environmental qualification, and disciplined installation procedure create the reliability that an FTTH project needs over its service life.
