Splice trays are easy to treat as a minor line item in an FTTH bill of materials. In practice, their capacity, routing geometry, and compatibility can determine whether a closure remains serviceable after years of expansion. A tray that looks adequate on a datasheet may become crowded once technicians add splitters, express fibers, repair loops, and new distribution cables. For B2B buyers, the right question is therefore not simply “How many splices fit?” but “How much usable capacity will remain under the actual operating plan?”
Start With the Network Function, Not the Maximum Fiber Count
Define what the enclosure must do at each location. A feeder joint may carry many pass-through fibers and relatively few active splices. A distribution point may require feeder-to-splitter, splitter-to-drop, and spare-fiber management in the same housing. A repair closure can require extra slack and irregular routing. These functions create different tray demands even when the cable fiber counts are identical.
Prepare a splice schedule for the initial build, the expected take-up stage, and the ultimate design. Separate active splices, reserved fibers, pass-through fibers, splitter pigtails, and restoration allowance. This turns tray selection into a capacity calculation rather than an assumption based only on the cable label.
Calculate Usable Capacity With an Engineering Reserve
A nominal 24-fiber tray should not automatically be planned for 24 field splices in every project. The practical utilization limit depends on protector size, fiber type, bend-radius control, entry direction, and whether components share the tray. Dense loading can slow identification and raise the risk of disturbing live fibers during maintenance.
For many access-network projects, reserving approximately 15 to 25 percent of the planned tray positions is a useful starting point. The correct reserve should reflect growth uncertainty and service-level requirements. A stable rural route with a fixed cable plan may need less headroom than an urban MDU network with frequent subscriber additions. Document the chosen utilization rule in the technical specification so every bidder sizes the assembly on the same basis.
A Simple Planning Example
Suppose a distribution closure requires 72 splices at launch and may reach 96 splices within three years. If the project limits normal tray utilization to 80 percent, four nominal 24-fiber trays provide only about 76 usable positions. Five trays provide about 96 usable positions, but no further working reserve. The buyer may choose six 24-fiber trays, or a different approved tray format, depending on enclosure space, expansion method, and maintenance policy. The important point is that nominal arithmetic alone can understate the required hardware.
Check Closure and Tray Compatibility as a System
Splice trays are mechanical parts, not universal accessories. Confirm tray dimensions, hinge or stacking method, mounting points, organizer clearance, and the maximum installed stack permitted by the closure. Also check whether technicians can open one tray without sharply bending fibers routed to another. A closure that technically holds the stack may still be difficult to work on when fully loaded.
Cable-entry geometry matters as well. Fibers should reach the tray through defined routing channels without crossing sealing hardware or being pinched by the cover. Ask the supplier for an assembly drawing showing the enclosure, tray stack, fiber path, and stated capacity together. For an OEM or ODM project, approve the complete configured sample rather than approving the closure shell and trays separately.
Specify Fiber Management Details
A procurement specification should identify the accepted splice protector dimensions, minimum bend-radius requirement, storage method for uncut or pass-through fibers, tray cover type, labeling area, and retention features. If PLC splitters or other passive components will be installed, state their dimensions and pigtail routing needs. Do not assume that a tray designed for fusion splices will safely hold every component format.
Labeling deserves special attention. Each tray should support a durable identification scheme that corresponds to cable, tube, fiber, circuit, or splitter-port records. Clear labels reduce restoration time and help technicians avoid opening unrelated trays. The label material and print method should remain readable under the temperature and humidity conditions expected inside the enclosure.
Evaluate Installation and Maintenance Workflow
Capacity is valuable only when it can be used consistently in the field. During sample evaluation, have an experienced technician route and splice a representative cable set. Observe how easily the tray opens, whether protectors remain seated, whether fibers cross hinges, and whether stored loops maintain a controlled radius. Repeat the inspection with the planned tray stack installed, not just one empty tray.
Consider future intervention: Can a technician add fibers without removing the entire organizer? Can a damaged tray be replaced without cutting unrelated circuits? Are spare trays and matching covers available throughout the project lifecycle? These questions directly affect mean time to repair and long-term operating cost.
Build Acceptance Criteria Into the Purchase Order
Include measurable checks in the purchase order or inspection plan. Verify tray model, quantity, nominal capacity, material, dimensions, mounting compatibility, cover retention, and protector slots. Confirm that the supplied configuration matches the approved drawing and sample. A packing-list check alone will not reveal an incompatible hinge, undersized organizer, or obstructed fiber path.
For larger telecom programs, require configuration control. Any proposed change to tray material, mold, dimensions, or mounting hardware should receive written approval before shipment. Lot traceability is also useful when the same enclosure family is delivered over multiple phases.
Use the Right Tray Format for the Project

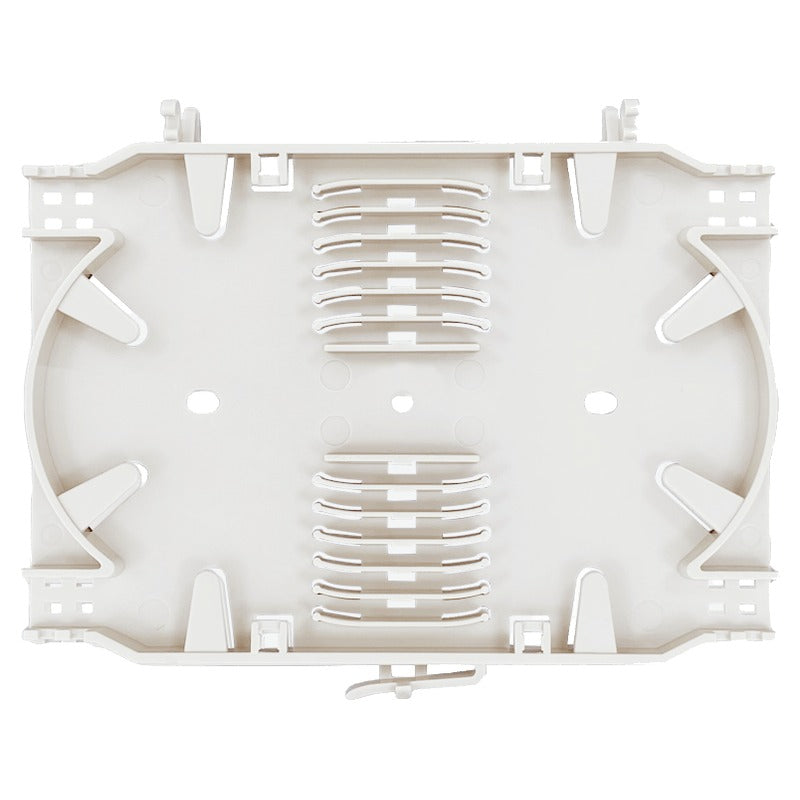

Fibermint offers splice-tray formats for different fiber counts and enclosure designs, including the FST-24S-042 24F Splice Tray used as the cover image for this guide. Product selection should be based on the complete closure configuration, routing plan, and capacity reserve rather than tray count alone. Fibermint can support OEM and ODM telecom projects with compatibility review, configured samples, and production documentation.
A disciplined tray plan protects more than fibers. It protects installation productivity, future expansion, and restoration speed. When buyers calculate usable capacity, verify the mechanical system, and define acceptance criteria before ordering, a small passive component becomes a reliable foundation for the entire ODN.
