Name: FDB-8BJ2 12F 2 Ports Fiber Distribution Box
Brand: FIBERMINT
Availability: InStock

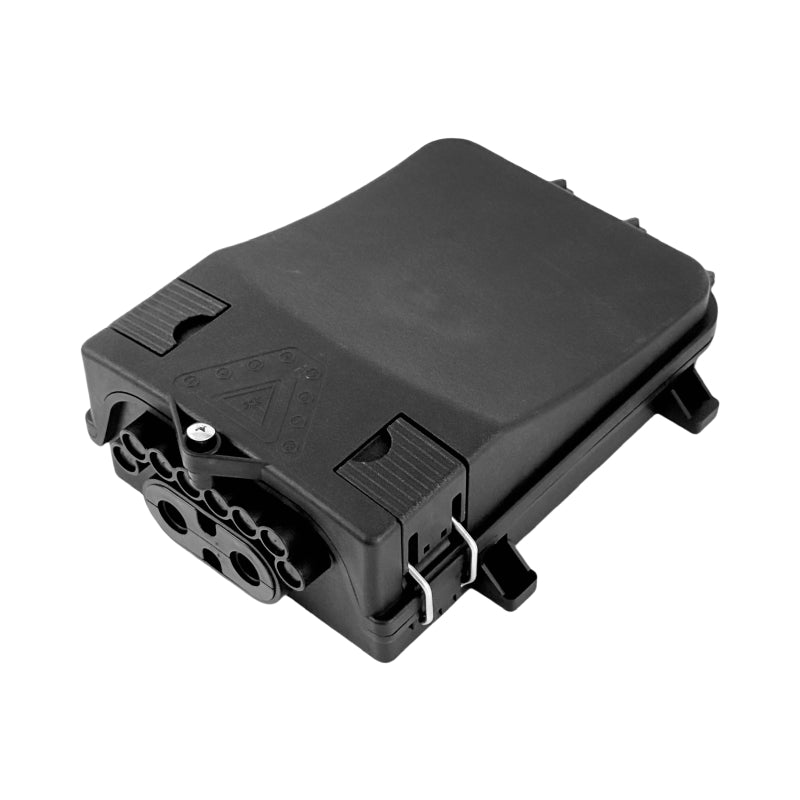

FDB-8BJ2 12F 2 Ports Fiber Distribution Box

B2B Inquiry

Request a Quote

Tell us what you need and the Fibermint team will reply with product options, MOQ, lead time, and OEM/ODM support.

Related Fiber Optic Products

Product Description

The FDB-8BJ2 12F 2 Ports Fiber Distribution Box is used as a fiber access and distribution point for terminating, splicing, splitting, and managing optical fibers between feeder cables and drop cables. It supports organized fiber management for FTTH, FTTx, and building access networks.

Application

Designed for fiber optic distribution in FTTH networks, serving as a termination and splicing point for main and drop cables.
IP55 Rated, suitable for wall-mounted and pole-mounted installations.

Key Features

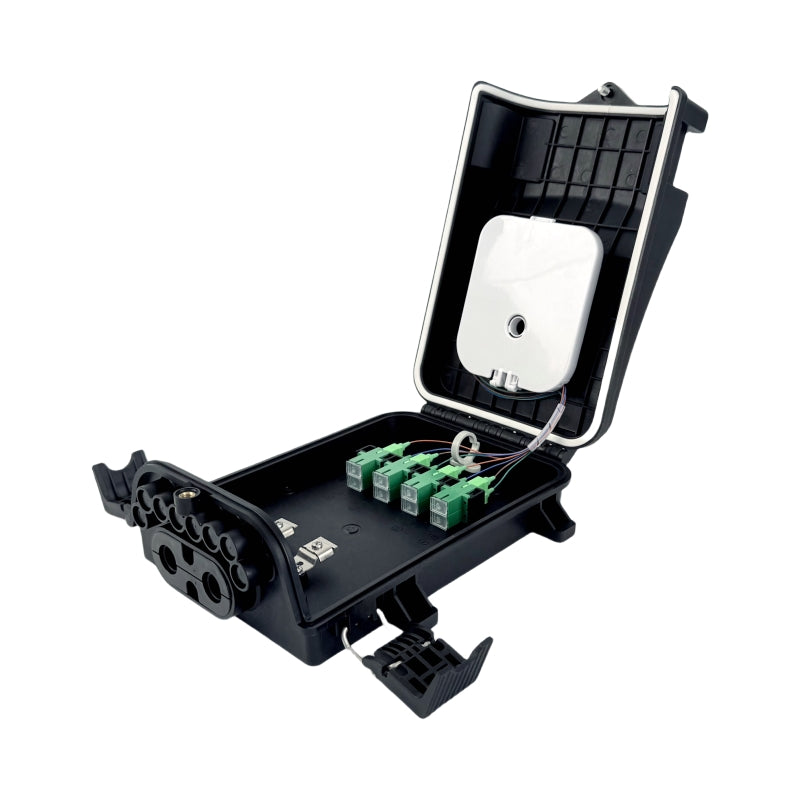

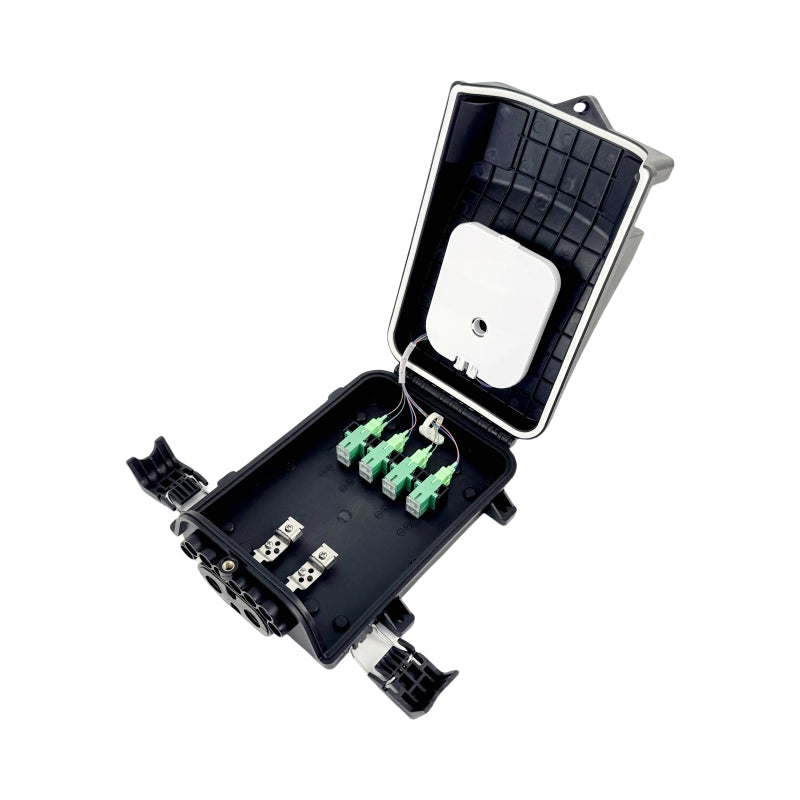

Integrated space for fiber splicing, routing, storage, and splitter installation.
Compact enclosure structure supports efficient drop cable access and maintenance.
Adapter ports and splice tray capacity can be configured for project requirements.
Designed for quick installation and organized fiber protection at access nodes.
Suitable for OEM branding and operator-specific FTTH deployment packages.

Specifications

Mechanical

Item	Specification
Part No.	FDB-8BJ2
Product Type	Fiber Distribution Box
Dimension	219×155×82 mm
Housing Material	CPP (PP Resin)
IP Rating	IP55
Mounting	Aerial / Wall / Pole Mount

Optical

Item	Specification
Cable Ports	2 ports
Splicing Capacity	12 fibers
Patching Capacity	8 SC Adapters
Suitable Splitter	1×8 Micro PLC splitters

Packing List

Item	Specification
Part No.	FDB-8BJ2
PCS/CTN	10
Carton Size (CM)	47×39×33 CM
GW/CTN (KG)	15 KGS

Frequently asked questions

Yes. We support OEM & ODM customization including logo printing, color, structure, packaging, cable configuration, and accessory options based on project requirements.
