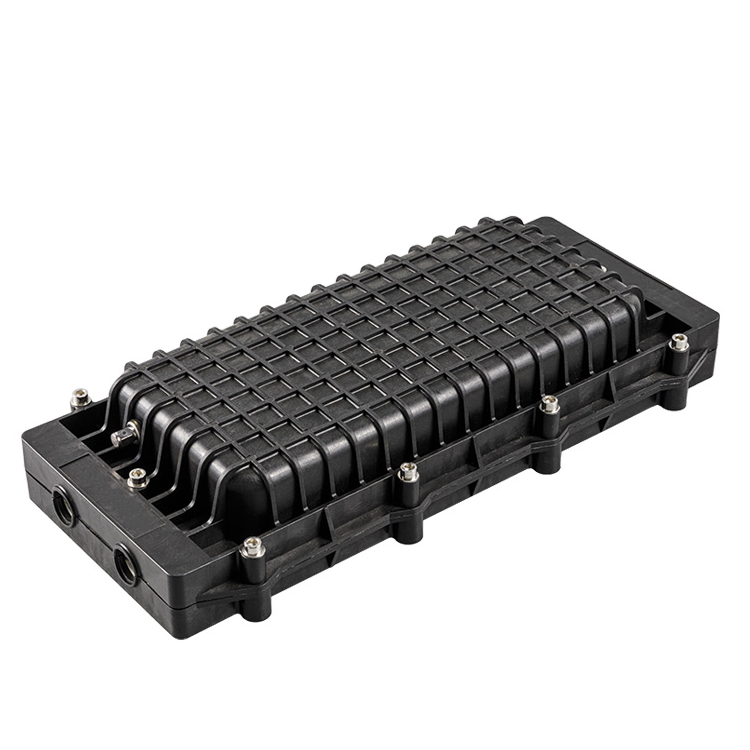

GJS-H2201 Boîtier d'épissure de fibre optique 96 FO

Product Description

The GJS-H2201 Inline Closure is designed to protect, organize, and manage optical fiber splices in outside plant and FTTH access networks. The enclosure provides a reliable sealed environment for straight-through and branch cable applications, helping maintain splice protection, fiber bend radius, and long-term network stability.

Application

• Designed for outdoor optical networks, providing secure splicing and protection for up to 96 fibers in harsh environments.
• IP68-rated for aerial (supports Figure 8 cables), manhole mounting, duct, and direct burial applications.

Key Features

• IP68 compliant, prevents dust/water ingress.

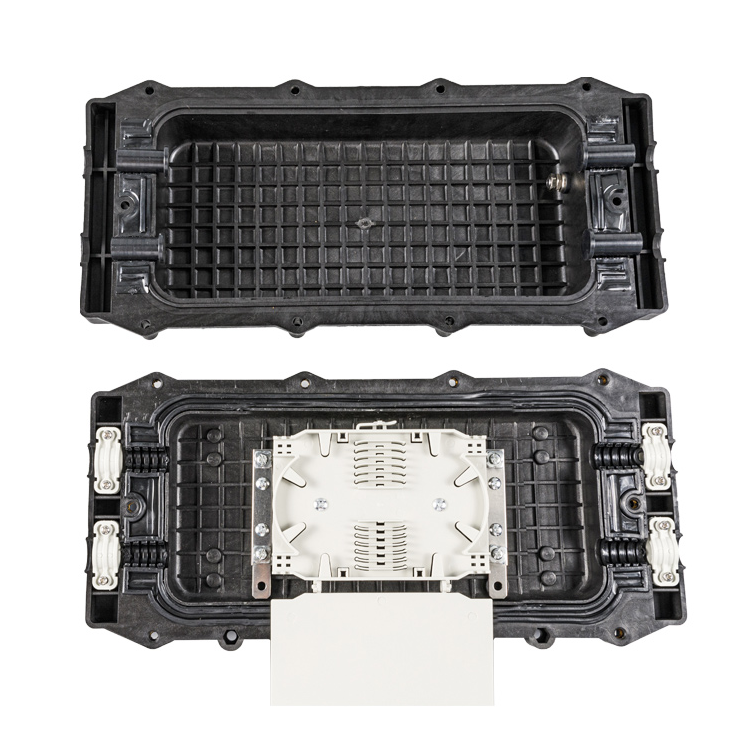

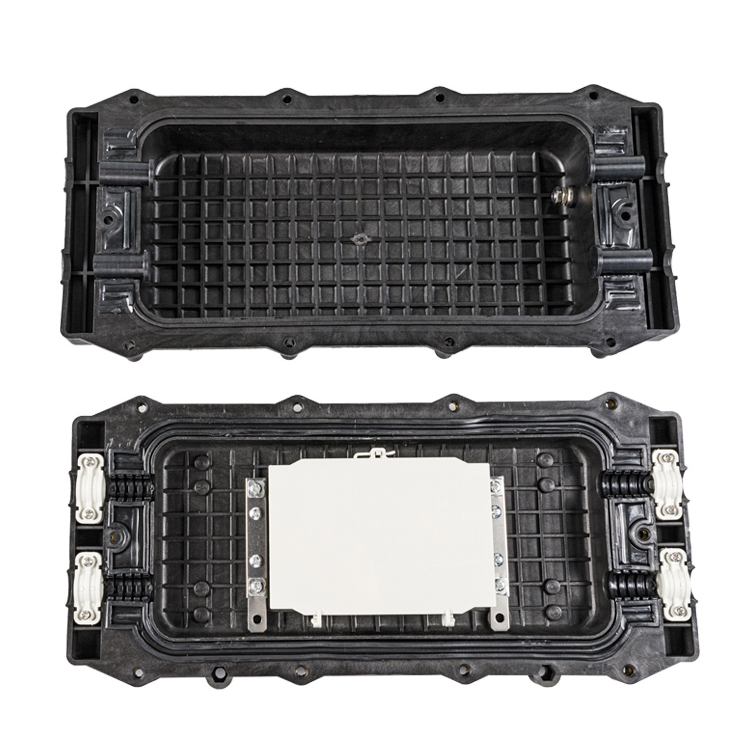

• Two-piece shell (upper/lower case) with reusable rubber seals.
• Max 96C Capacity - can accommodate up to 4 splice trays (24 fibers/tray), tool-free access.

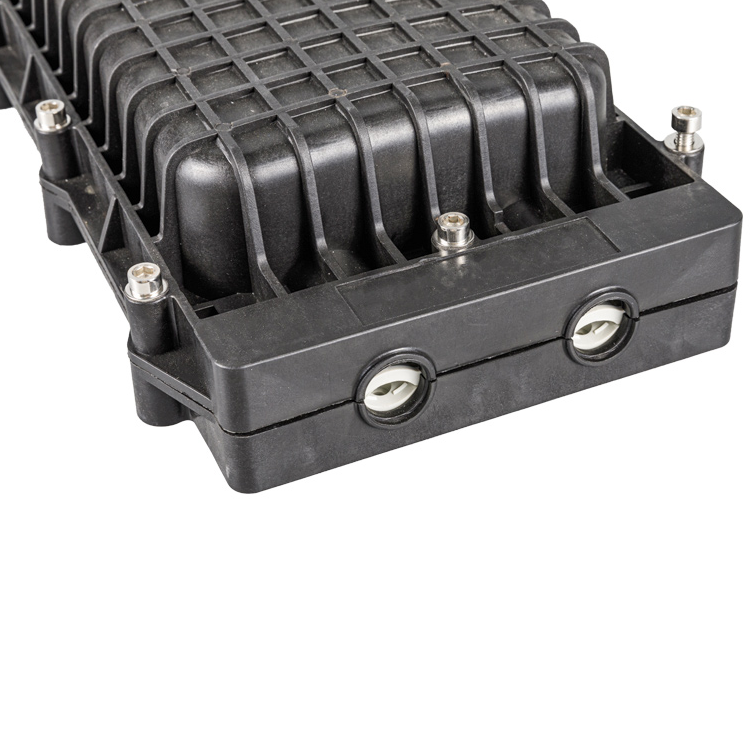

• 2+2 In-line ports (max. Ø17mm), automatic clamps, stainless steel strength member fixation.
• Single-Tool Operation - Hex bolt tightening for rapid sealing.

Specifications

Mechanical

Optical

Packing List
