Name: GJS-M5768C 576F 8 Ports Fiber Dome Closure
Brand: FIBERMINT
Availability: InStock

GJS-M5768C 576F 8 Ports Fiber Dome Closure

B2B Inquiry

Request a Quote

Tell us what you need and the Fibermint team will reply with product options, MOQ, lead time, and OEM/ODM support.

Related Fiber Optic Products

Product Description

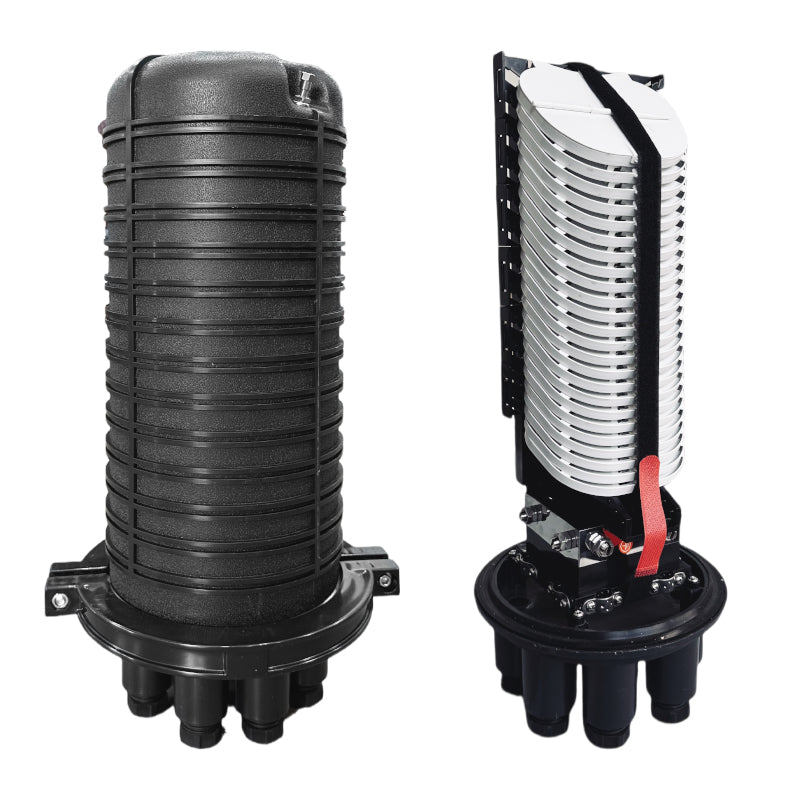

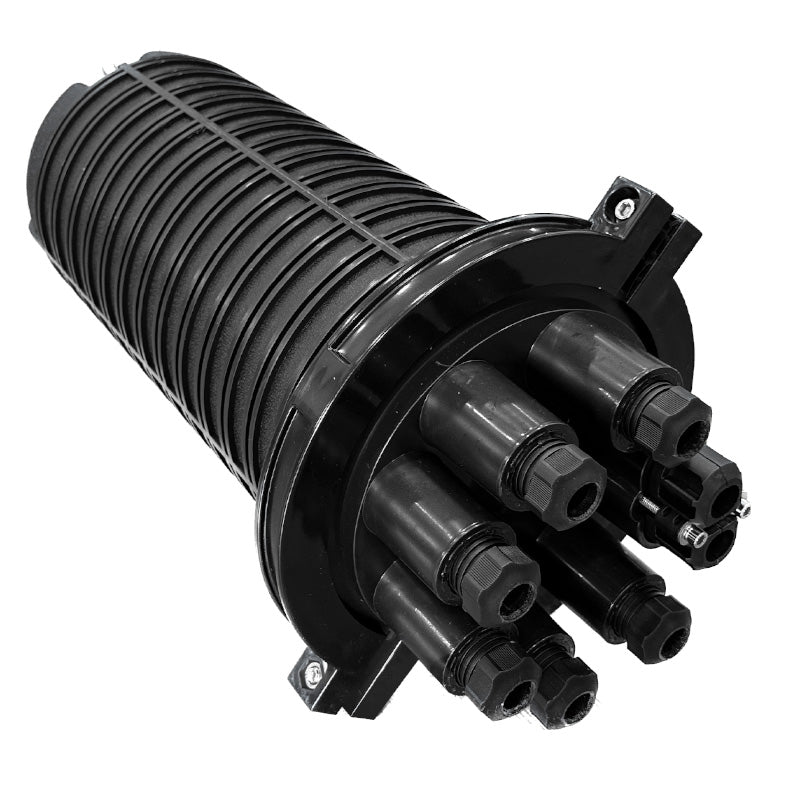

The GJS-M5768C 576F 8 Ports Fiber Dome Closure is a vertical fiber optic splice closure for protecting feeder and distribution cable splices in FTTH and outside plant networks. The dome structure supports compact fiber routing, tray stacking, and sealed cable access for demanding outdoor installations.

Application

The GJS-M5768C Fiber Optic Dome Closure safeguards fiber splice points from environmental factors (e.g., water permeation) in outdoor networks.
IP68-rated for reliable performance in aerial, pole-mounted, and direct-buried installations.

Key Features

Dome-style enclosure supports high-density fiber storage in a compact footprint.
Heat-shrink or mechanical sealing options are selected according to the model.

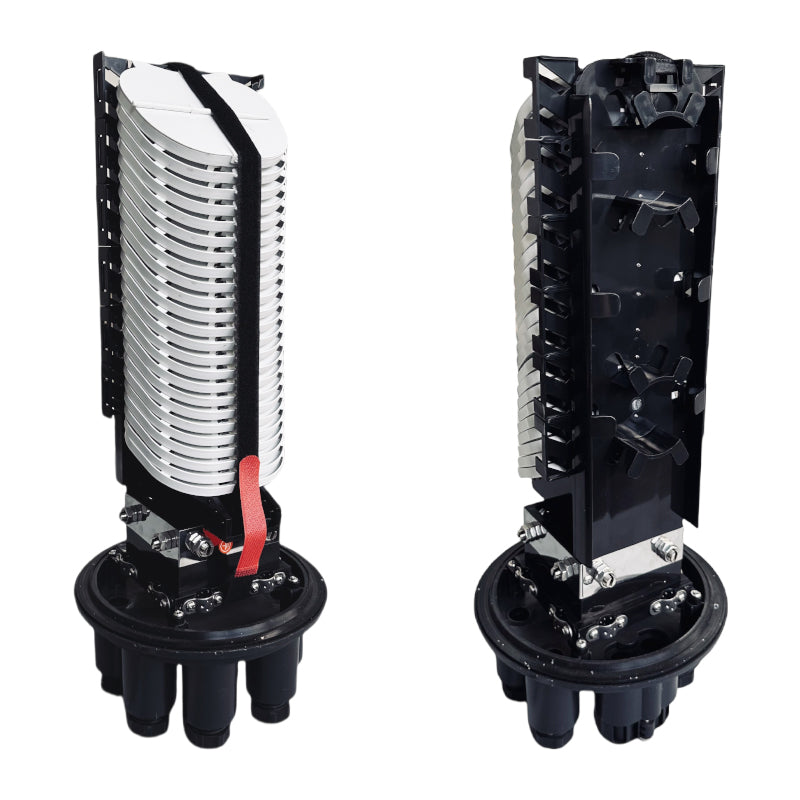

Stackable splice trays help simplify installation, inspection, and maintenance.
Cable port layout supports feeder cable pass-through and branch cable distribution.
Outdoor-rated structure for long service life in harsh access networks.

Specifications

Mechanical

Item	Specification
Part No.	GJS-M5768C
Product Type	Fiber Dome Closure
Dimension	550 × Ø305 mm (21.65 × Ø12.01 in)
Housing Material	PP+GF
Cable Sealing Method	Dome-to-base clamp with O-ring
Inflating Valve	Pre-installed (Optional)
Grounding Device	Not Supported
IP Rating	IP68
Mounting	Aerial / Wall Mount / Pole Mount / Duct / Buried

Optical

Item	Specification
Cable Ports	8 ports
Splicing Capacity	576 fibers
No. of Splice Tray	24 Trays
Suitable Splitter	1×8 or 1×16 micro PLC splitters

Packing List

Item	Specification
Part No.	GJS-M5768C
PCS/CTN	1
Carton Size (CM)	30x30x56 CM
GW/CTN (KG)	5.5 KG

Frequently asked questions

Yes. We support OEM & ODM customization including logo printing, color, structure, packaging, cable configuration, and accessory options based on project requirements.
