Part No.: FFB-T448-1P

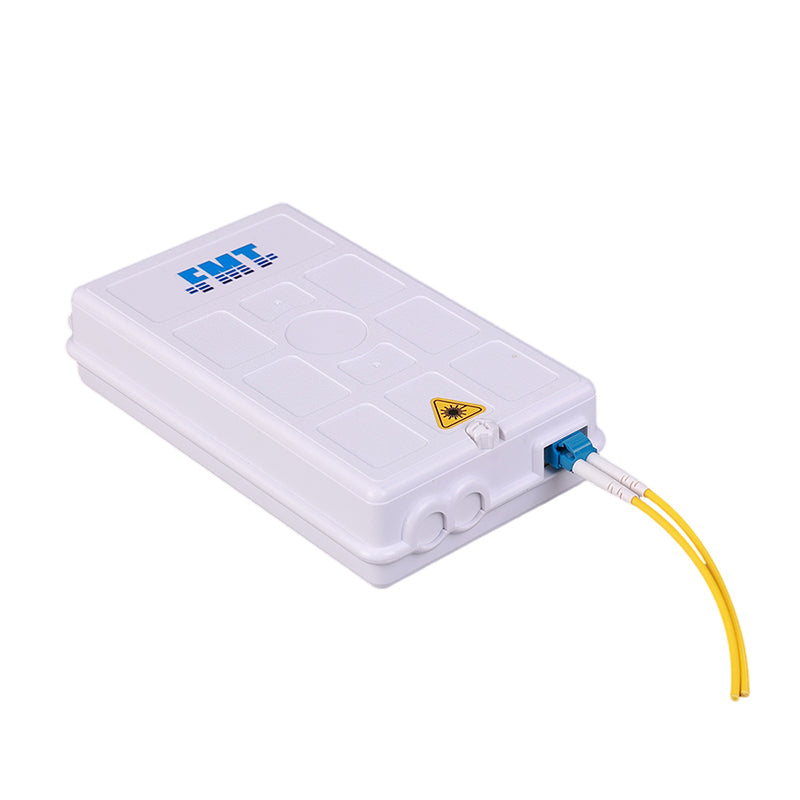

FFB-T448-1P Fiber Optic Terminal Box

FFB-T448-1P Fiber Optic Terminal Box

  • Designed for installation on each level of multi-dwelling unit (MDU) buildings in Fiber-to-the-Home (FTTH) networks.
  • Serves as a transition point between riser and horizontal cables, offering storage and splicing capabilities for over-length and terminated fibers.

Specification

Dimension (WxHxD): 198mm × 112mm × 45mm

Inlet / Outlet: 2 × Ø15mm / 1 SC or LC Duplex Adapter

Branch (Blind) ports: -

Splicing capacity: 6/12F

Patching capacity: 1 SC or LC Duplex Adapter

Suitable splitter: 1×2 Micro PLC Splitter

Packing List

Carton Size: 61x43x29CM

Pieces per Carton: 50PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FFB-T448-1P Fiber Optic Floor Terminal Box is a reliable solution for FTTH deployments in multi-dwelling unit (MDU) buildings. This compact box provides an efficient transition point between riser and horizontal cables, ensuring flexibility for operators. It offers secure storage for over-length and terminated fibers, as well as serving as a convenient splice point.

    Made from high-strength engineering plastic, the FFB-T448-1P is built to last, offering long service life and excellent protection with an IP43 rating. The removable cover with a special screw lock provides enhanced security, while the flip-design splice tray ensures easy access and maintenance. This floor terminal box is a smart choice for indoor fiber distribution in space-constrained environments.

  • Feature & Benifits

    Port capacities of the FFB-T448-1P Fiber Optic Terminal Box:
    • Splicing capacity: 6/12F
    • Patching capacity: 1 SC or LC Duplex Adapter
    • Splitter capacity: 1×2 Micro PLC Splitter
    Key features for the FFB-T448-1P Fiber Optic Terminal Box:
    • Durable Material: Constructed from high-strength engineering plastic for extended service life.
    • Secure Design: Removable cover with a special screw lock provides secure access.

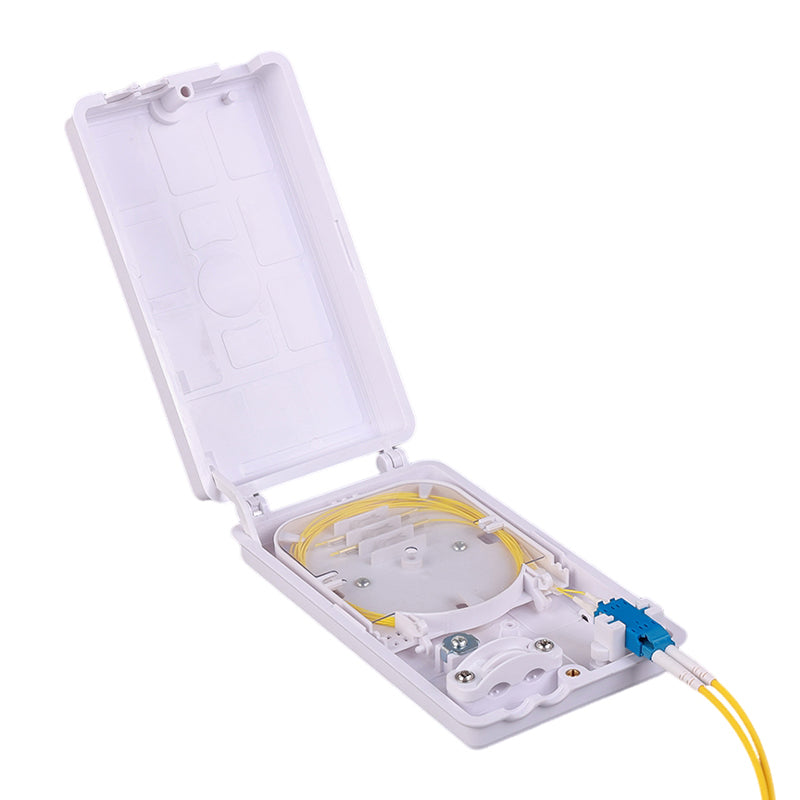

    • Splice Tray Flip Design: Allows easy access with a bend radius greater than 30mm to ensure fiber integrity.
    • Flexible Operation: Operating space is divided into two parts, one for loop-through cables and the other for pigtail splicing.
    • Compact and Reliable: Small footprint ideal for MDU installations, with an IP43 protection grade.

Specifications

Part No. FFB-T448-1P
Color Black / White / Gray / Light Gray
Dimension 198mm × 112mm × 45mm
Material of Housing ABS or PC/ABS
Protection class IP IP43
Main Cable Ports 2 × Ø15mm
Branch Cable Ports -
Drop Cable Ports 1 SC or LC Duplex Adapter
Fusion Splice 6/12F
Number of Splice Tray 1/2 Trays
Suitable Splitter 1×2 Micro PLC Splitter
Number of Adapters 1 SC or LC Duplex Adapter
Mount Way Wall Mount
