Part No.: GP-T408-12SC

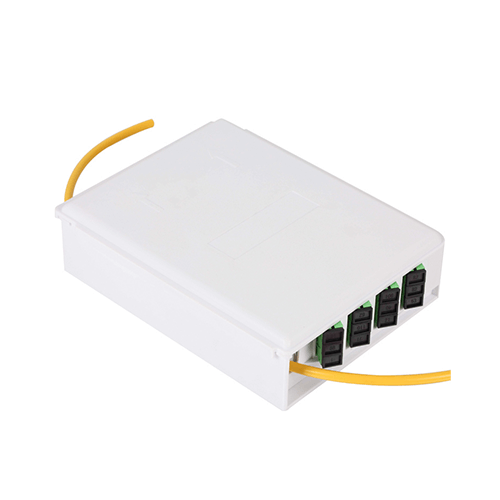

12-Core Fiber Floor Box

12-Core Fiber Floor Box

The GP-T408-12SC Optical Distribution Unit (ODU) is designed for efficient fiber management, providing reliable connections between optical fibers and pigtails. It is ideal for indoor installations or use in street cabinets, supporting full splicing, patching with 12 SC adapters, and splitting with micro PLC splitters.

Specification

Dimension (WxHxD): 158x204x54mm

Inlet / Outlet: 2 (In-line) / 12 (SC Connector)

Branch (Blind) ports: -

Splicing capacity: 48FO

Patching capacity: 12 SC Adapter

Suitable splitter: 1:4 or 1:8 micro PLC splitters.

Packing List

Carton Size: 46x36x34cm

Pieces per Carton: 20

Download File
Request for Quotation View full details

  • Description

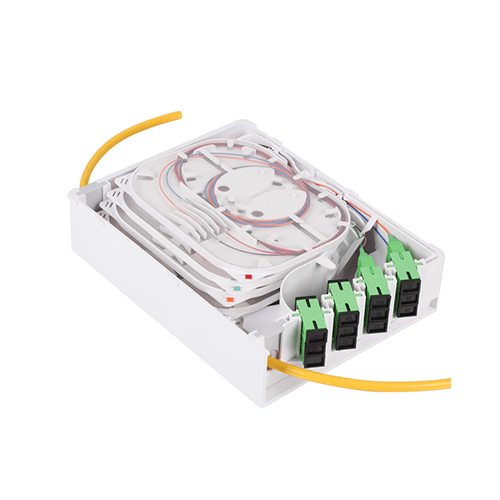

    The GP-T408-12SC Optical Distribution Unit (ODU) is a compact and durable solution for managing fiber optic connections in FTTX networks. Constructed from high-strength engineering plastic, it ensures long-lasting performance. The unit features a slide open-type structure with a secure locking mechanism, providing easy access for installation and maintenance. The internal space is divided to separate loop-through cables from pigtail splicing, optimizing organization and efficiency. With the ability to accommodate up to 12 SC adapters and micro splitters (1:4, 1:8), the GP-T408-12SC is perfect for managing multiple fiber connections in a neat and structured manner.

  • Feature & Benifits

    Port capacities of the 12-Core Fiber Floor Box:
    • Splicing capacity: 48FO
    • Patching capacity: 12 SC Adapter
    • Splitter capacity: 1:4 or 1:8 micro PLC splitters.
    Key features for the 12-Core Fiber Floor Box:
    • High-Strength Construction: Made from engineering alloy plastic for enhanced durability and a long service life.
    • Slide Open Design: Features a user-friendly slide mechanism with a click-lock to ensure secure closure.
    • Efficient Internal Organization: Divided operating space for loop-through cable and pigtail splicing, making installation and maintenance straightforward.
    • Flexible Splicing and Patching: Supports up to 12 SC adapters and can accommodate 1x4 or 1x8 micro PLC splitters in each tray.

    Adjustable Tray Angles: Splice trays can be set at 45 or 90 degrees for easy operation and maintenance.

Specifications

Part No. GP-T408-12SC
Color Black / White / Gray / Light Gray
Dimension 158x204x54mm
Material of Housing ABS or PC/ABS
Protection class IP IP54
Main Cable Ports 2 (In-line)
Branch Cable Ports -
Drop Cable Ports 12 (SC Connector)
Fusion Splice 48FO
Number of Splice Tray 4 (Max)
Suitable Splitter 1:4 or 1:8 micro PLC splitters.
Number of Adapters 12 SC Adapter
Mount Way Wall-mounted
