Part No.: FFB-T204

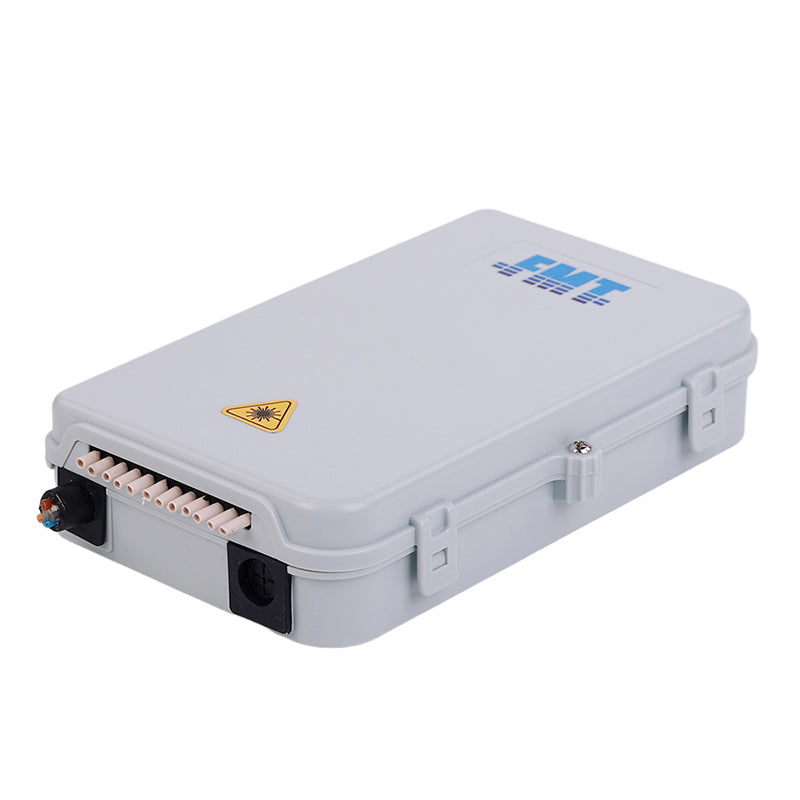

FFB-T204 Outdoor Fiber Optic Terminal Box

FFB-T204 Outdoor Fiber Optic Terminal Box

  • Designed for FTTx projects to provide robust mechanical protection for fiber management systems.
  • Suitable for splicing, patching, and passive component integration.
  • IP54-rated, making it ideal for both indoor and outdoor installations.

Specification

Dimension (WxHxD): 182mm × 123mm × 37mm

Inlet / Outlet: 3 × Ø 7mm / 12 × Ø 2mm

Branch (Blind) ports: -

Splicing capacity: 12F

Patching capacity: -

Suitable splitter: -

Packing List

Carton Size: 55x40x25CM

Pieces per Carton: 40 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FFB-T204 Outdoor Fiber Optic Terminal Box is a compact, versatile solution for managing fiber optic connections in FTTx projects. It supports straight-through and loop-through cable configurations, offering enhanced convenience and efficiency. With its IP54 protection rating, the terminal box is resilient in diverse environments, ensuring reliable performance for both indoor and outdoor applications. The flip design of its cover and splice tray simplifies installation and maintenance while maintaining a bend radius of over 30mm for optimal fiber protection.

  • Feature & Benifits

    Port capacities of the FFB-T204 Outdoor Fiber Optic Terminal Box:
    • Splicing capacity: 12F
    • Patching capacity: -
    • Splitter capacity: -
    Key features for the FFB-T204 Outdoor Fiber Optic Terminal Box:
    • Compact Design: Small footprint, saving installation space.

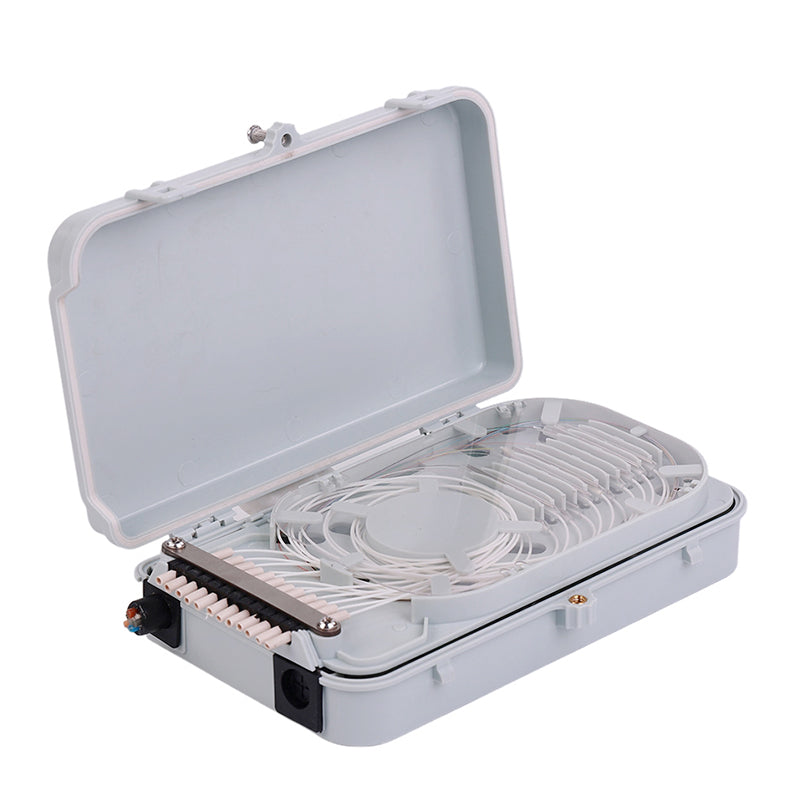

    • Flip Design: 90° opening angle for easy access to the splice tray and cover.
    • Dual Operating Spaces: Accommodates both straight-through and loop-through cables.
    • Fiber Protection: Ensures a bend radius greater than 30mm to prevent damage.
    • Multiple Ports: Supports 3 main cables (Ø 7mm) and 12 drop cables (Ø 2mm).
    • Durable and Secure: IP54 rating for reliable indoor and outdoor use.

Specifications

Part No. FFB-T204
Color Black / White / Gray / Light Gray
Dimension 182mm × 123mm × 37mm
Material of Housing ABS or PC/ABS
Protection class IP IP54
Main Cable Ports 3 × Ø 7mm
Branch Cable Ports -
Drop Cable Ports 12 × Ø 2mm
Fusion Splice 12F
Number of Splice Tray 1 Tray
Suitable Splitter -
Number of Adapters -
Mount Way Wall Mount
