Part No.: GP-T404-12F

12FO 12 Drop ports Fiber Floor Termial Box

12FO 12 Drop ports Fiber Floor Termial Box

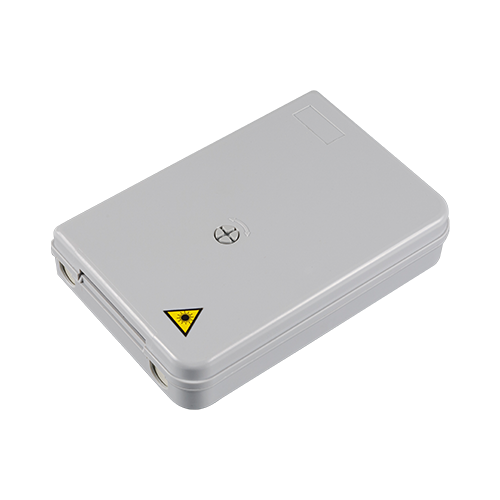

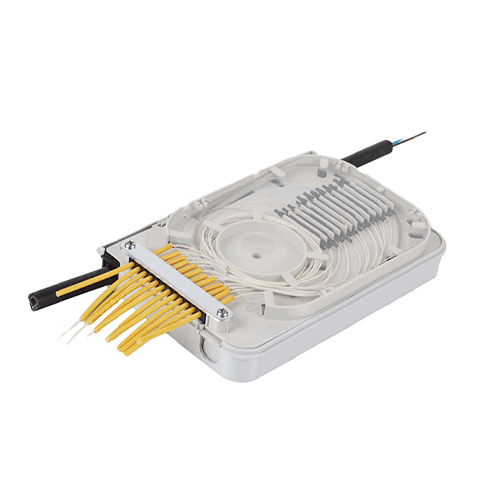

The GP-T404-12F Fiber Optic Floor Terminal Box is specifically designed for installation on each level of a multi-dwelling unit (MDU) building for fiber-to-the-home (FTTH) applications. It serves as the transition point between the riser and horizontal cables, providing operators with optimal flexibility. The box offers storage for both overlength and terminated fibers, as well as acting as a splice point.

Specification

Dimension (WxHxD): 123 × 183 × 37 mm

Inlet / Outlet: 3 / 12

Branch (Blind) ports: N/A

Splicing capacity: 12/24 Fibers

Patching capacity: N/A

Suitable splitter: N/A

Packing List

Carton Size: 55.0*40.0*25.0CM

Pieces per Carton: 40 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    This GP-T404-12F Floor Boxes are designed with flexibility in applications - A box can have two or more different configurations to fit slightly different of requirements. These boxes usually used for Indoor fiber-to-the-Home (FTTH) deployments.

  • Feature & Benifits

    Port capacities of the 12FO 12 Drop ports Fiber Floor Termial Box:
    • Splicing capacity: 12/24 Fibers
    • Patching capacity: N/A
    • Splitter capacity: N/A
    Key features for the 12FO 12 Drop ports Fiber Floor Termial Box:
    • Removable Cover with Screw Lock: Ensures secure access and easy maintenance.
    • Dual Operating Space: Divided into two parts, suitable for both straight-through and loop-through cable configurations.

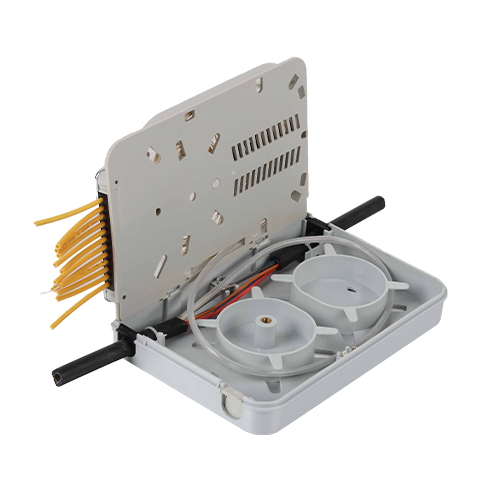

    • Splice Tray Flip Design: Allows a 90-degree opening angle with a bend radius of over 30mm, facilitating efficient fiber management.
    • High Splice Capacity:** Supports up to 12 fiber optic splices, providing ample capacity for various applications.
    • Compact Dimensions: With outside dimensions of 123×183×37 mm, it is ideal for installation on each level of multi-dwelling units (MDUs).
    • Versatile Application: Specifically designed for FTTH MDU solutions, providing a transition point between riser and horizontal cables.

Specifications

Part No. GP-T404-12F
Color Black / White / Gray / Light Gray
Dimension 123 × 183 × 37 mm
Material of Housing ABS or PC/ABS
Protection class IP IP43
Main Cable Ports 3
Branch Cable Ports N/A
Drop Cable Ports 12
Fusion Splice 12/24 Fibers
Number of Splice Tray 1 PC (Max.)
Suitable Splitter N/A
Number of Adapters N/A
Mount Way Wall-mounted
