Part No.: FFB-T404S8

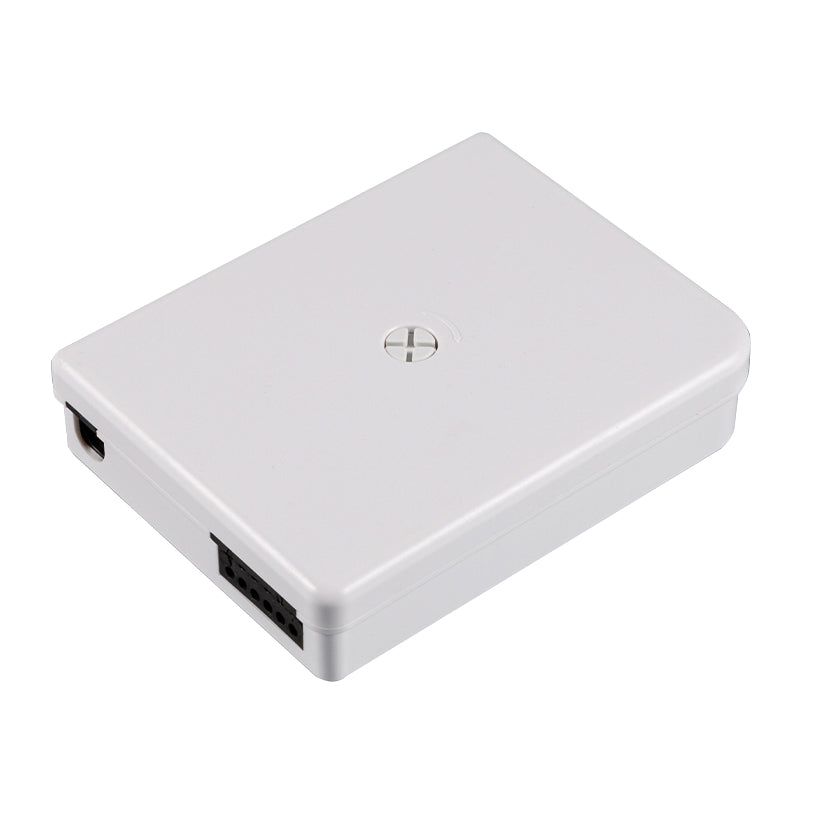

FFB-T404S8 12F Fiber Optic Floor Box

FFB-T404S8 12F Fiber Optic Floor Box

  • Designed for FTTH (Fiber to the Home) installations in multi-dwelling unit (MDU) buildings.
  • Serves as the transition point between riser and horizontal cables, ensuring seamless connectivity.
  • Provides storage for over-length and terminated fibers while functioning as a secure splice point.

Specification

Dimension (WxHxD): 103mm × 133mm × 30mm

Inlet / Outlet: 2 × Ø 13mm (In-line) / 8+12 × Ø 3mm (In-line)

Branch (Blind) ports: -

Splicing capacity: 6/12F

Patching capacity: -

Suitable splitter: -

Packing List

Carton Size: 30x25x33cm

Pieces per Carton: 40 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FFB-T404S8 Fiber Optic Floor Terminal Box is an efficient and reliable solution for managing fiber connections in MDU buildings. Constructed from high-strength engineering alloy plastic, it offers durability and long service life. The box features a removable cover with a special screw-lock mechanism for secure access, and its flip splice tray design ensures a safe bend radius of over 30mm. With dual-operating spaces, it supports both loop-through cable and pigtail splicing, making it a versatile choice for FTTH applications. Rated at IP43, it provides reliable protection in diverse environments.

  • Feature & Benifits

    Port capacities of the FFB-T404S8 12F Fiber Optic Floor Box:
    • Splicing capacity: 6/12F
    • Patching capacity: -
    • Splitter capacity: -
    Key features for the FFB-T404S8 12F Fiber Optic Floor Box:
    • Durable Construction: Made from high-strength engineering alloy plastic for extended service life.
    • Secure Access: Removable cover with a special screw lock for added security.

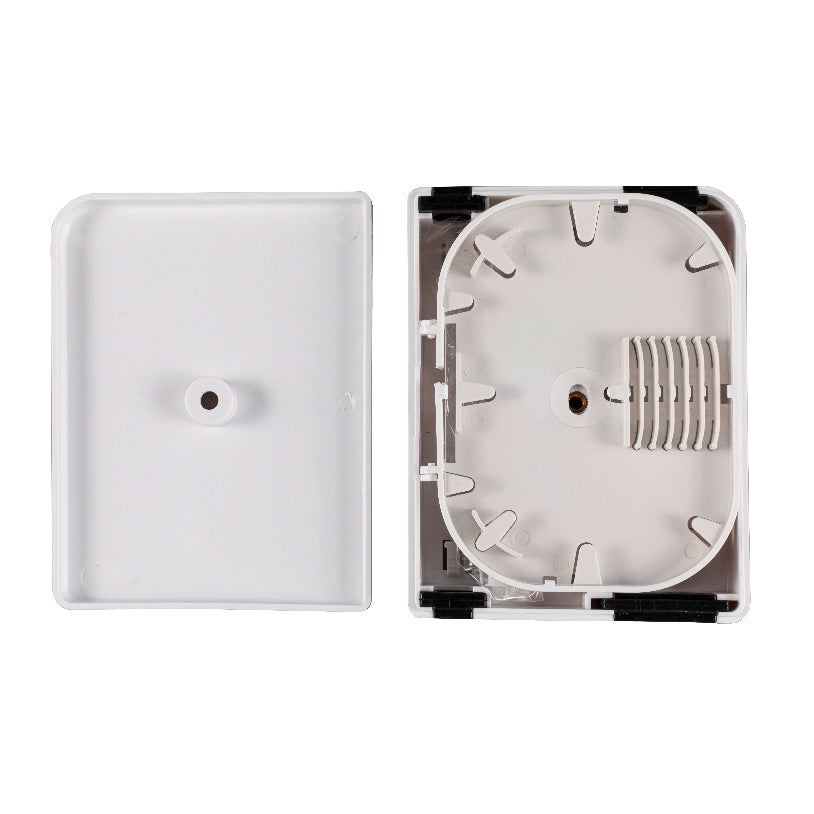

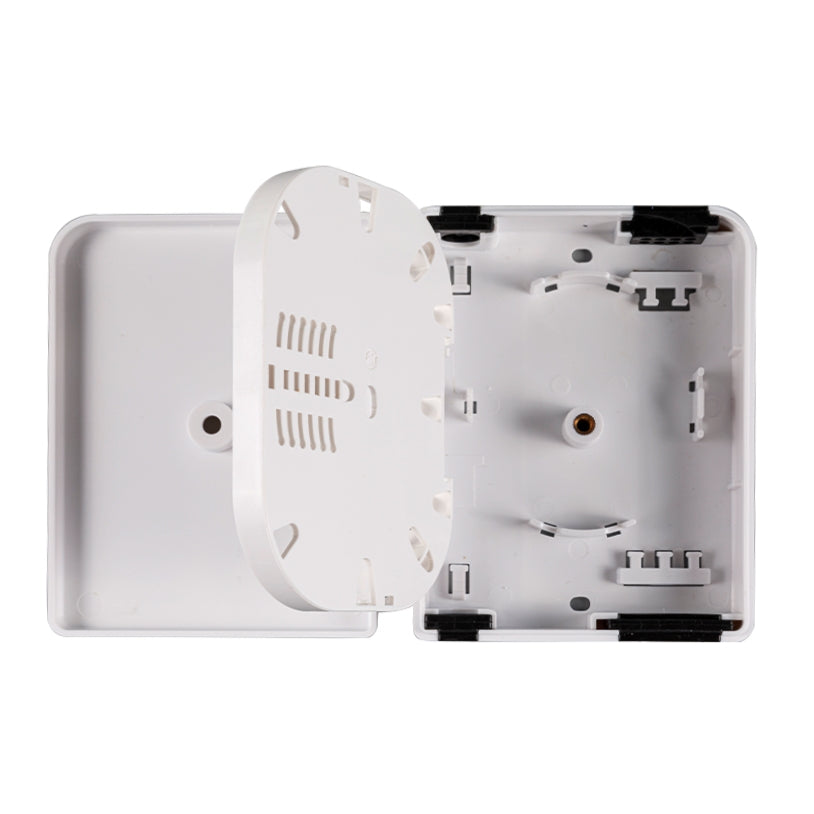

    • Flip Splice Tray Design: Ensures a 30mm+ bend radius for optimal fiber protection.
    • Dual Operating Spaces: Simplifies installation with dedicated areas for loop-through cable and pigtail splicing.
    • IP43 Protection Grade: Offers reliable environmental resistance.
    • Compact Design: Saves space with dimensions of 103mm × 133mm × 30mm.

Specifications

Part No. FFB-T404S8
Color Black / White / Gray / Light Gray
Dimension 103mm × 133mm × 30mm
Material of Housing ABS or PC/ABS
Protection class IP IP43
Main Cable Ports 2 × Ø 13mm (In-line)
Branch Cable Ports -
Drop Cable Ports 8+12 × Ø 3mm (In-line)
Fusion Splice 6/12F
Number of Splice Tray 1
Suitable Splitter -
Number of Adapters -
Mount Way Wall Mount
