Part No.: FFB-T449-18P

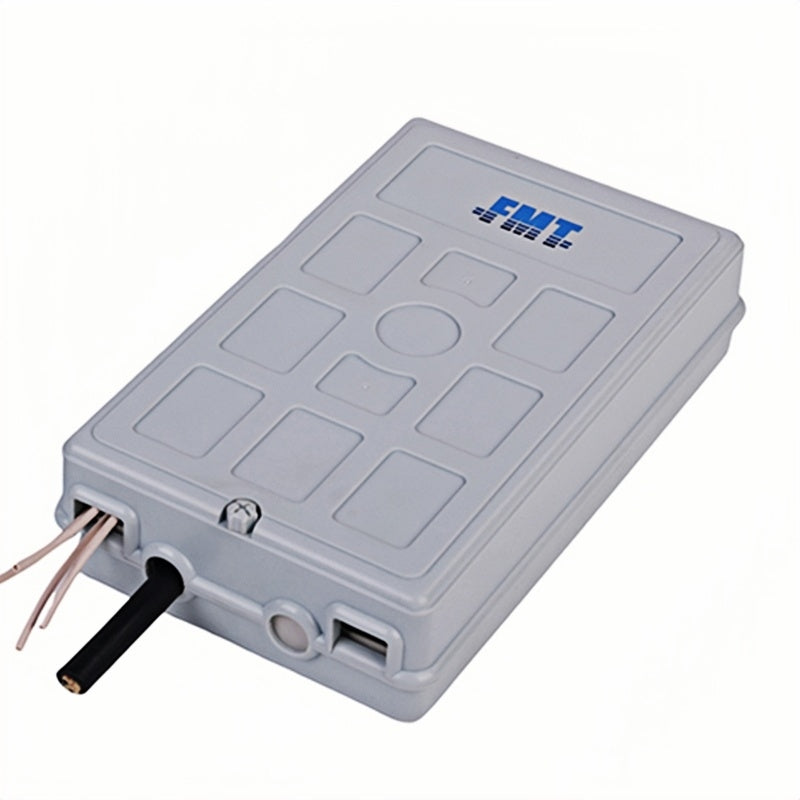

FFB-T449-18P Indoor FTTH Termination Box

FFB-T449-18P Indoor FTTH Termination Box

  • Designed for Fiber-to-the-Home (FTTH) projects, providing mechanical protection and efficient fiber management, including splicing and fiber retention.
  • Suitable for indoor wall-mounting or cabinet installations, offering flexibility and scalability for various fiber optic networks.

Specification

Dimension (WxHxD): 265mm × 153mm × 55mm

Inlet / Outlet: 2 × Ø16mm / 24 × Ø3mm

Branch (Blind) ports: -

Splicing capacity: 6/12F

Patching capacity: 18 SC Adapter

Suitable splitter: -

Packing List

Carton Size: 56x34x36CM

Pieces per Carton: 20PCS/CTN

Download File
Request for Quotation View full details

  • Description

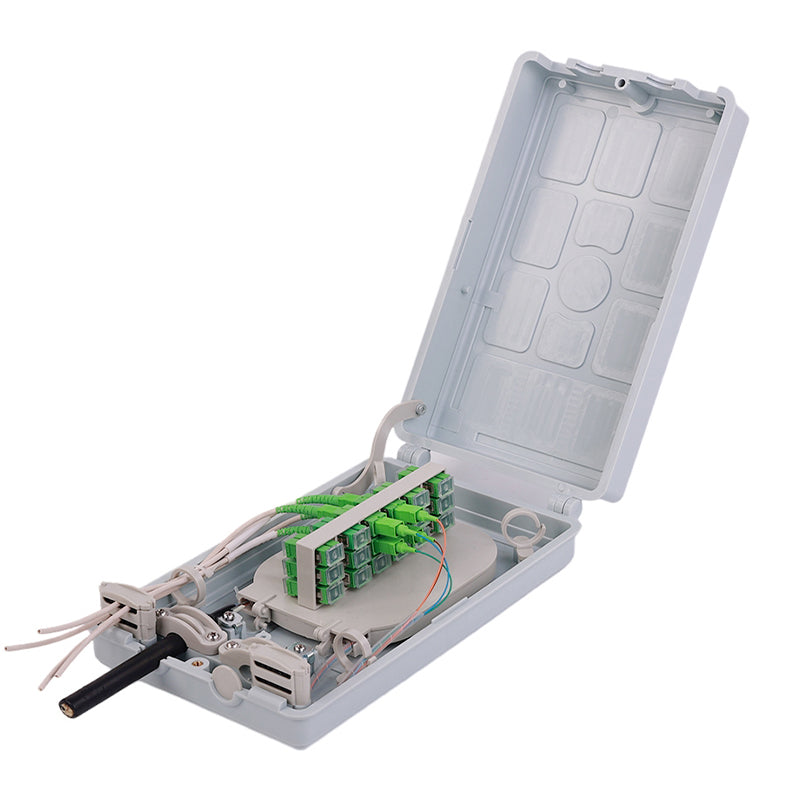

    The FFB-T449-18P Indoor FTTH Termination Box is a robust and versatile solution for modern fiber optic installations. Designed for high-capacity FTTH applications, it supports up to 18 SC adapters and provides ample space for splicing and fiber retention. Its stackable splice tray structure simplifies fiber organization and ensures a bending radius greater than 30mm to maintain optimal signal performance.

    Made from high-strength, ultra-durable plastic, this box combines durability with an elegant appearance. Its screw-lock design ensures secure access, while the built-in grounding feature adds safety for installations. With sufficient space for fiber storage and efficient cable management components, the FFB-T449-18P is ideal for professional indoor fiber deployments.

  • Feature & Benifits

    Port capacities of the FFB-T449-18P Indoor FTTH Termination Box:
    • Splicing capacity: 6/12F
    • Patching capacity: 18 SC Adapter
    • Splitter capacity: -
    Key features for the FFB-T449-18P Indoor FTTH Termination Box:
    • Durable and Attractive Design: Constructed from high-strength, ultra-viscous plastic for enhanced durability and a sleek appearance.
    • High Capacity: Supports up to 18 SC adapters and 24 drop cables, accommodating large-scale FTTH deployments.
    • Stackable Splice Trays: Flip-over design allows trays to open at a 90° angle for easy installation and maintenance.
    • Secure and Organized: Includes components for fixing cables, routing rings, and strength member anchoring, ensuring neat and reliable fiber management.
    • Grounding Feature: Built-in grounding for added safety in fiber installations.
    • Large Storage Space: Ample room for fiber retention and cable bending, with a bending radius greater than 30mm.
    • Flexible Installation: Designed for wall-mounted or cabinet installations, making it adaptable to various indoor environments.

Specifications

Part No. FFB-T449-18P
Color Black / White / Gray / Light Gray
Dimension 265mm × 153mm × 55mm
Material of Housing ABS or PC/ABS
Protection class IP IP43
Main Cable Ports 2 × Ø16mm
Branch Cable Ports -
Drop Cable Ports 24 × Ø3mm
Fusion Splice 6/12F
Number of Splice Tray 1 Tray
Suitable Splitter -
Number of Adapters 18 SC Adapter
Mount Way Wall Mount
