Part No.: GP-T867

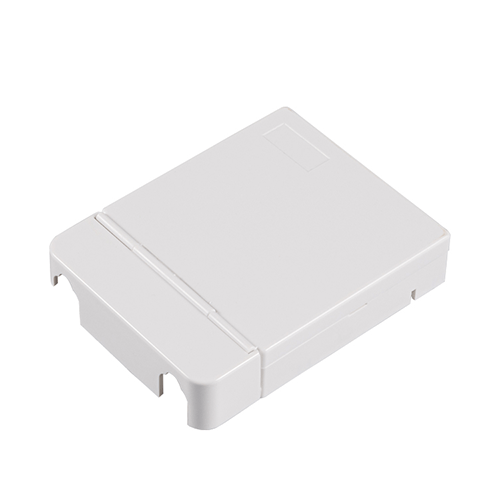

GP-T867 2-Core Fiber Optic Outlet

GP-T867 2-Core Fiber Optic Outlet

The GP-T867 2-Core FTTH Fiber Optic Wall Outlet is an terminal box designed for compact FTTH indoor installations. This wall-mounted outlet is rated IP20, making it ideal for home or office applications requiring secure and organized fiber terminations.

Specification

Dimension (WxHxD): 112x86x23mm

Ports: 2 Connector ports

Branch (Blind) ports: -

Splicing capacity: 2/4 fusion splice (Max.)

Patching capacity: 2 SC or LC Connectors

Packing List

Carton Size: 47x47x27CM

Pieces per Carton: 200PCS

Download File
Request for Quotation View full details

  • Description

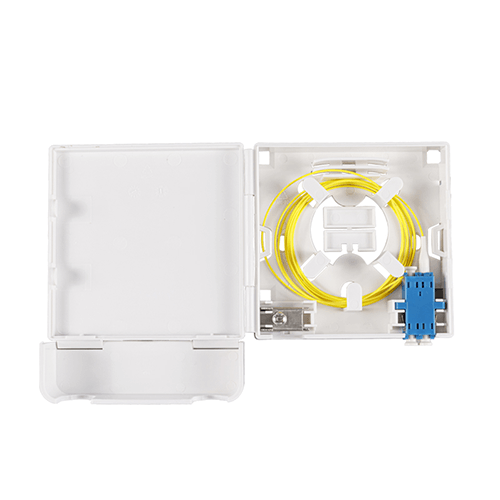

    The GP-T867 Indoor Fiber Optic Terminal Box is a lightweight and compact solution for FTTH networks. It supports up to 2 SC or LC duplex adapters and allows for up to 2 fusion splices, ensuring efficient cable management in a minimal space. Constructed from durable ABS material and designed with a dust cover to protect cable entries, this wall-mounted outlet is both functional and easy to install.

  • Feature & Benifits

    Port capacities of the GP-T867 2-Core Fiber Optic Outlet:
    • Splicing capacity: 2/4 fusion splice (Max.)
    • Patching capacity: 2 SC or LC Connectors
    • Splitter capacity:
    Key features for the GP-T867 2-Core Fiber Optic Outlet:
    • Compact Design: Small and lightweight structure (112x86x23mm) for efficient indoor installations.
    • Adapter Support: Holds 2 SC or LC duplex adapters, supporting 2 to 4 fiber optic connections.
    • Easy Installation: Wall-mounted design with included mounting kit for simple setup.
    • Durable Protection: IP20-rated with ABS construction and dust cover to protect fiber entries.
    • Accessories Included: Comes with cable ties and splice sleeves for easy installation and secure connections.

Specifications

Part No. GP-T867
Color White
Dimension 112x86x23mm
Material of Housing ABS or UL-94 V0 ABS
Main Cable Ports 2 Connector ports
Branch (Blind) Cable Ports -
Number of Adapters 2 SC or LC Connectors
Fusion Splice 2/4 fusion splice (Max.)
Number of Splice Tray No tray, the fusion splice slots is on base
Protection class IP IP20
Mount Way Wall-mounted
