Part No.: GP-T862

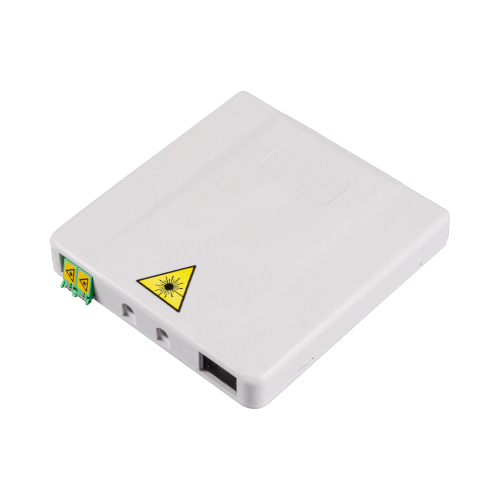

GP-T862 2-Core Fiber Optic Wall Outlet

GP-T862 2-Core Fiber Optic Wall Outlet

The GP-T862 Fiber Optic Outlet is a flexible indoor wall outlet suitable for end-user installations. Rated IP20, suitable for managing fiber optic cable fusion, termination, and pigtail organization in indoor settings.

Specification

Dimension (WxHxD): 100x95x16mm

Ports: 2 SC or LC Duplex Adapters

Branch (Blind) ports: 2

Splicing capacity: 2/4 fusion splices

Patching capacity: 2 SC or LC Connectors

Packing List

Carton Size: 30x31x24cm

Pieces per Carton: 180PCS/CTN

Request for Quotation View full details
  • Description

    The GP-T862 Fiber Optic Outlet offers a simple and compact design that ensures effective fiber management for indoor installations. It accommodates two SC auto-shutter adapters and supports up to 4 fibers for fusion splicing. The engineered fiber routing within the box protects the bend radius, ensuring signal integrity. Its wall-mountable design is compatible with G.657 fiber, making it a reliable choice for end-user FTTH setups. The outlet also features entry points for cables from both the bottom and rear, providing flexibility during installation.

  • Feature & Benifits

    Port capacities of the GP-T862 2-Core Fiber Optic Wall Outlet:
    • Splicing capacity: 2/4 fusion splices
    • Patching capacity: 2 SC or LC Connectors
    • Splitter capacity: -
    Key features for the GP-T862 2-Core Fiber Optic Wall Outlet:
    • Termination and Splicing: Supports fiber termination, splicing, and storage for FTTH applications.
    • Compact Design: Simple structure with sufficient working space for easy cable management.
    • Bend Radius Protection: Ensures fiber integrity with proper bend radius engineering.
    • Adapter Support: Compatible with two SC auto-shutter adapters.
    • Cable Entry Options: Offers 2+2 cable entry points (bottom and rear), accommodating cables up to 5mm in diameter.

Specifications

Part No. GP-T862
Color White
Dimension 100x95x16mm
Material of Housing ABS or UL-94 V0 ABS
Main Cable Ports 2 SC or LC Duplex Adapters
Branch (Blind) Cable Ports 2
Number of Adapters 2 SC or LC Connectors
Fusion Splice 2/4 fusion splices
Number of Splice Tray -
Protection class IP IP20
Mount Way Wall-mounted
