Part No.: GP-T861

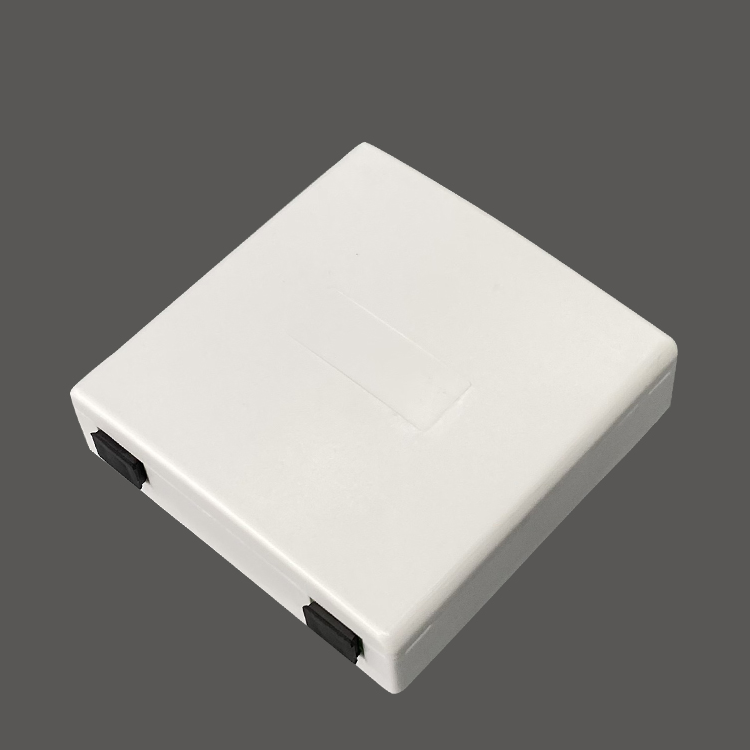

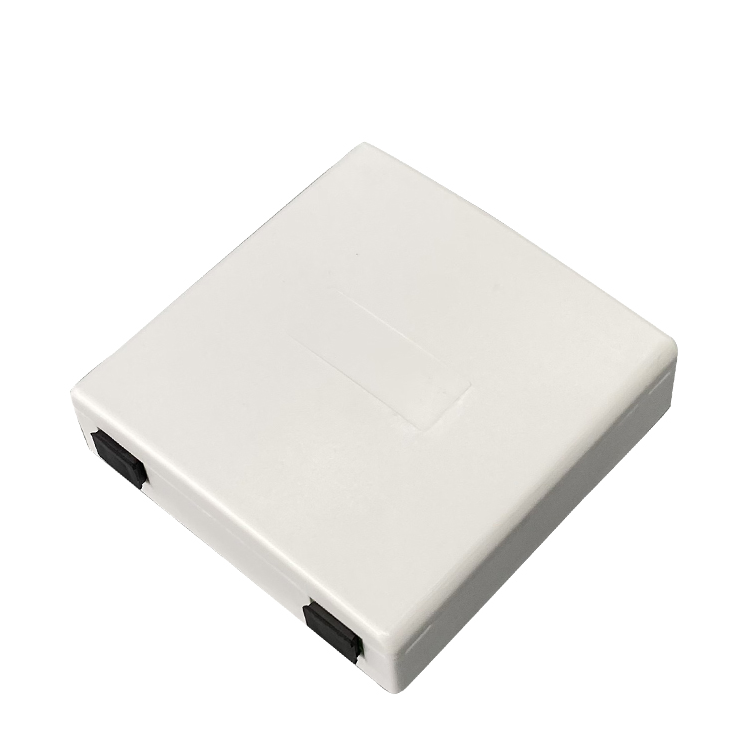

GP-T861 2 Cores Fiber Optic Wall Outlet

GP-T861 2 Cores Fiber Optic Wall Outlet

The GP-T861 Fiber Optic Outlet is a versatile indoor termination box designed for end-user installations. It supports both wall-mounted and floor-mounted configurations, making it ideal for handling fiber optic cable fusion, termination, and pigtail management in indoor environments.

Specification

Dimension (WxHxD): 86 x 86 x 21.5 mm

Ports: 2 SC or LC Duplex Adapters

Branch (Blind) ports: N/A

Splicing capacity: 2 fusion splice (Max.)

Patching capacity: 2 SC or LC Connectors

Packing List

Carton Size:

Pieces per Carton:

Download File
Request for Quotation View full details

  • Description

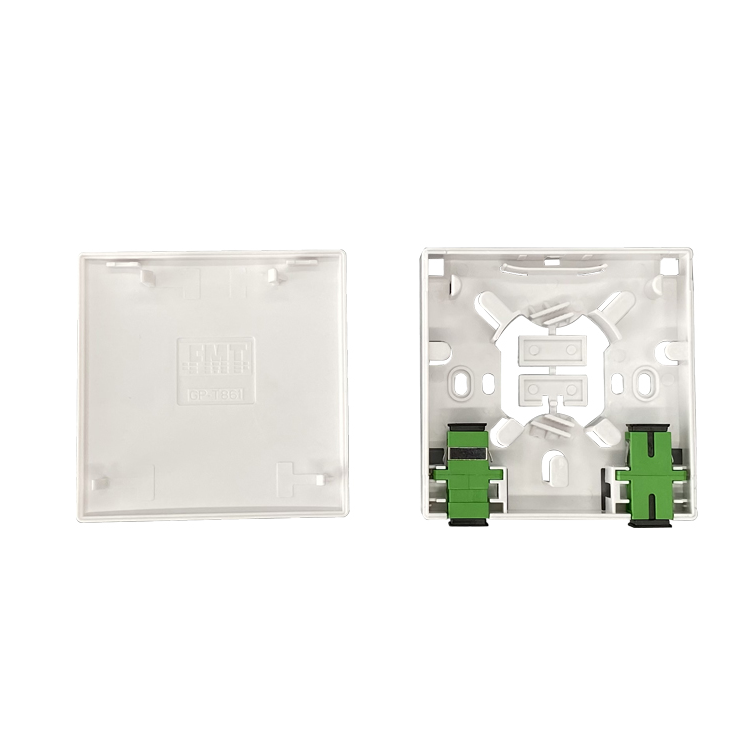

    The GP-T861 is a compact and efficient fiber optic outlet that facilitates termination, splicing, and storage of fiber optic cables. Engineered with excellent fiber routing design, it ensures the bend radius is protected to maintain signal integrity. This box is compatible with SC adapters and can accommodate up to 2 fusion splices. It is designed for indoor installations and is compatible with G.657A1 and G.657B3 fibers, ensuring reliable performance in FTTH networks.

  • Feature & Benifits

    Port capacities of the GP-T861 2 Cores Fiber Optic Wall Outlet:
    • Splicing capacity: 2 fusion splice (Max.)
    • Patching capacity: 2 SC or LC Connectors
    • Splitter capacity: N/A
    Key features for the GP-T861 2 Cores Fiber Optic Wall Outlet:
    • Lightweight, easy wall mounting.
    • Suitable for two adapters SC/APC configuration.
    • Compatible with G.657A1 and G.657B3.
    • Two flangeless SC adapters are available.
    • Engineered fiber routing protects bend radiusthrough the unit to ensure signal integrity.
    • Easy to install and connect. No special tools are required.

Specifications

Part No. GP-T861
Color White
Dimension 86 x 86 x 21.5 mm
Material of Housing ABS or UL-94 V0 ABS
Main Cable Ports 2 SC or LC Duplex Adapters
Branch (Blind) Cable Ports N/A
Number of Adapters 2 SC or LC Connectors
Fusion Splice 2 fusion splice (Max.)
Number of Splice Tray No tray, the fusion splice slots is on base
Protection class IP IP20
Mount Way Wall-mounted
