Part No.: FFB-T434-4SC

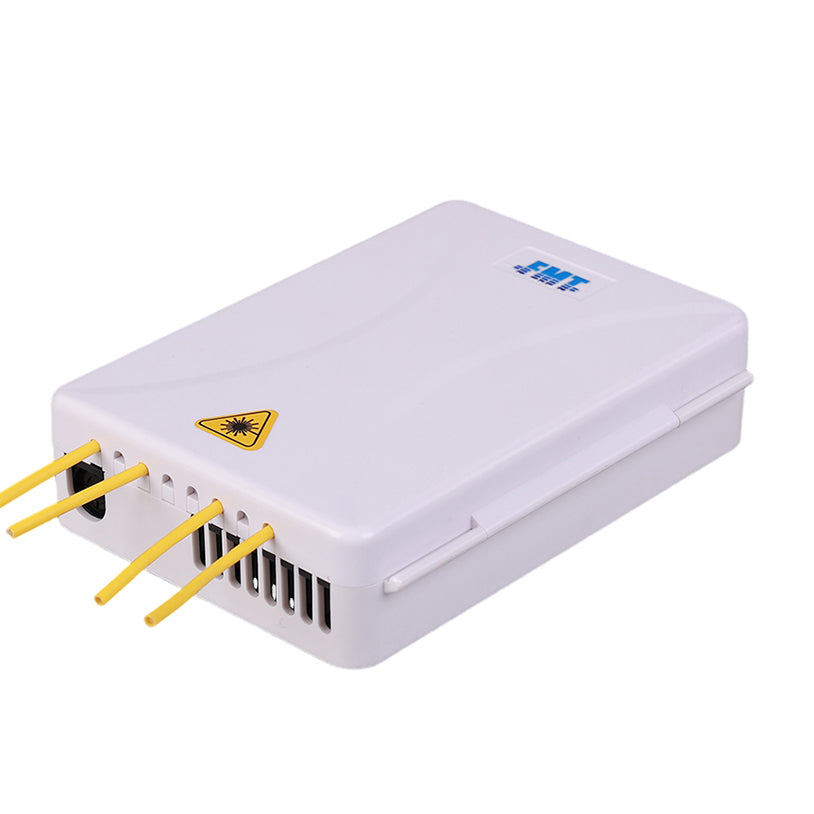

FFB-T434-4SC Fiber Optic Distribution Box

FFB-T434-4SC Fiber Optic Distribution Box

  • Designed for connecting optical fibers to pigtails, offering complete splice management and efficient fiber routing.
  • IP43 rated, making it suitable for indoor applications where compact size and organized fiber management are essential.

Specification

Dimension (WxHxD): 150mm × 108mm × 35mm

Inlet / Outlet: 1+1(In-line) × Ø13mm / 8 × Ø3mm

Branch (Blind) ports: -

Splicing capacity: 8F

Patching capacity: 4 SC Adapters

Suitable splitter: 1x4 or 1x8 Micro PLC Splitter per Tray

Packing List

Carton Size:

Pieces per Carton:

Download File
Request for Quotation View full details

  • Description

    The FFB-T434-4SC Fiber Optic Distribution Box is a compact, versatile solution for fiber optic installations. This model is an upgraded version of the FFB-T433, designed specifically for fiber splicing and adapter management. It features one splice tray capable of holding up to 8 fibers and one adapter tray that can accommodate 4 SC adapters. This makes it an ideal choice for installations requiring both fiber splicing and adapter functionality in a single unit.

    Made from high-quality LSZH plastic, the FFB-T434-4SC ensures durability and safety, offering a reliable solution for fiber management in indoor environments. The box includes a dedicated space for uncut cables or reserved cable storage, and the clear fiber function area helps maintain organized fiber routing. The hinged cover design allows for easy installation and access.

  • Feature & Benifits

    Port capacities of the FFB-T434-4SC Fiber Optic Distribution Box:
    • Splicing capacity: 8F
    • Patching capacity: 4 SC Adapters
    • Splitter capacity: 1x4 or 1x8 Micro PLC Splitter per Tray
    Key features for the FFB-T434-4SC Fiber Optic Distribution Box:
    • Compact Design: Space-efficient, designed for fiber splicing and adapter management in a single compact box.
    • 4 SC Adapters: Includes an adapter tray capable of holding 4 SC adapters, providing flexibility for fiber distribution.
    • Splice Tray: Comes with a splice tray that can hold up to 8 fibers, supporting both splicing and cable management.
    • Clear Fiber Routing: Clear division of fiber function areas helps ensure organized and efficient fiber routing.
    • Reserved Cable Storage: Special area for storing uncut or reserved cables, improving fiber management.
    • Hinged Cover: Easy to install and access, simplifying maintenance and operations.
    • Micro Splitter Compatibility: Special slot in the splice tray for a 1:8 micro PLC splitter, enhancing flexibility for fiber connections.

Specifications

Part No. FFB-T434-4SC
Color Black / White / Gray / Light Gray
Dimension 150mm × 108mm × 35mm
Material of Housing ABS or PC/ABS
Protection class IP IP43
Main Cable Ports 1+1(In-line) × Ø13mm
Branch Cable Ports -
Drop Cable Ports 8 × Ø3mm
Fusion Splice 8F
Number of Splice Tray 1 Tray (8F/Tray)
Suitable Splitter 1x4 or 1x8 Micro PLC Splitter per Tray
Number of Adapters 4 SC Adapters
Mount Way Wall Mount
