Part No.: FFB-T423

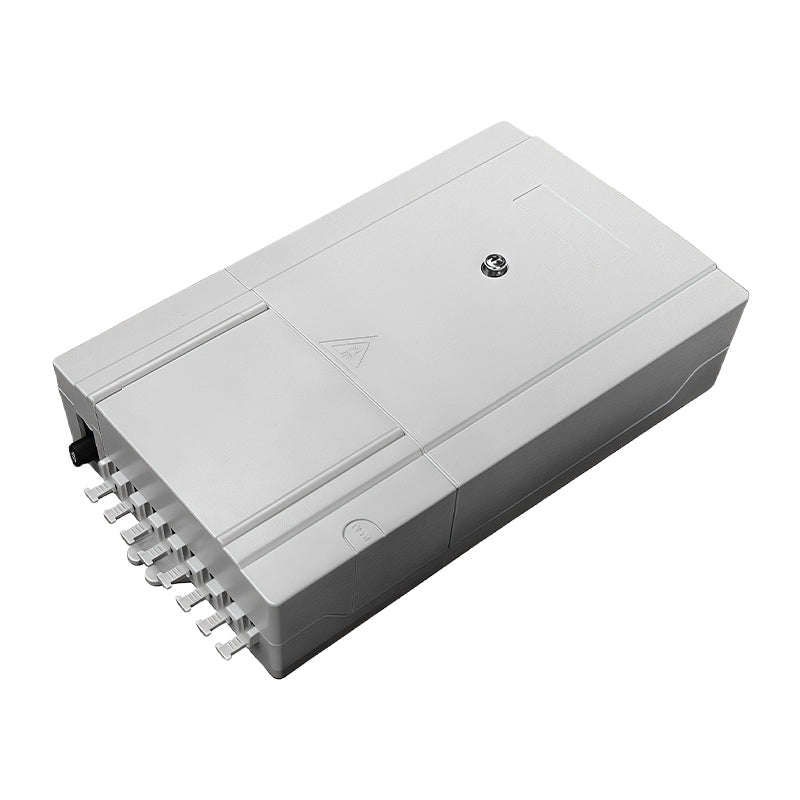

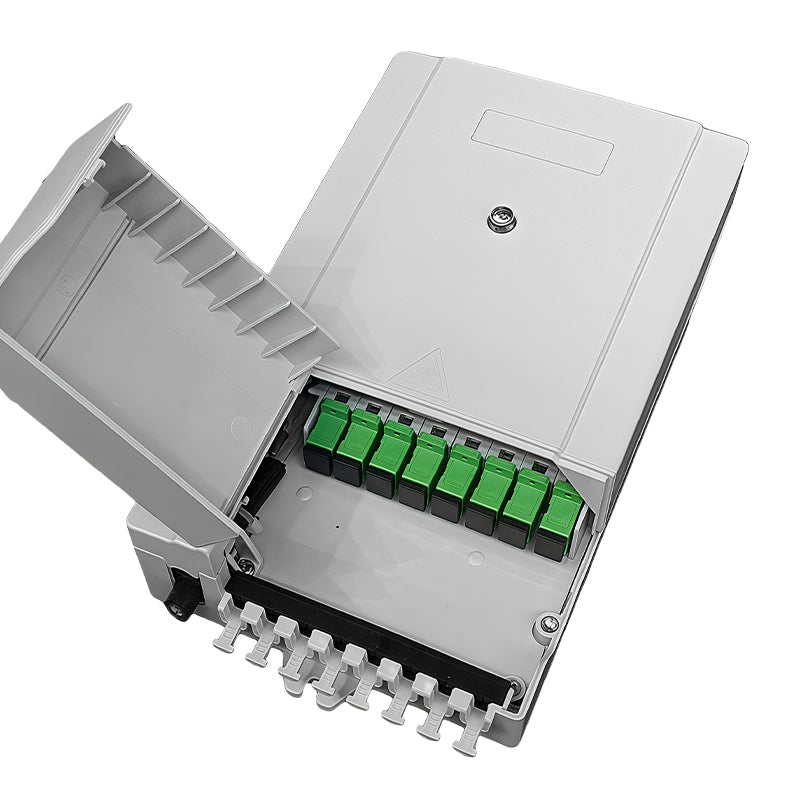

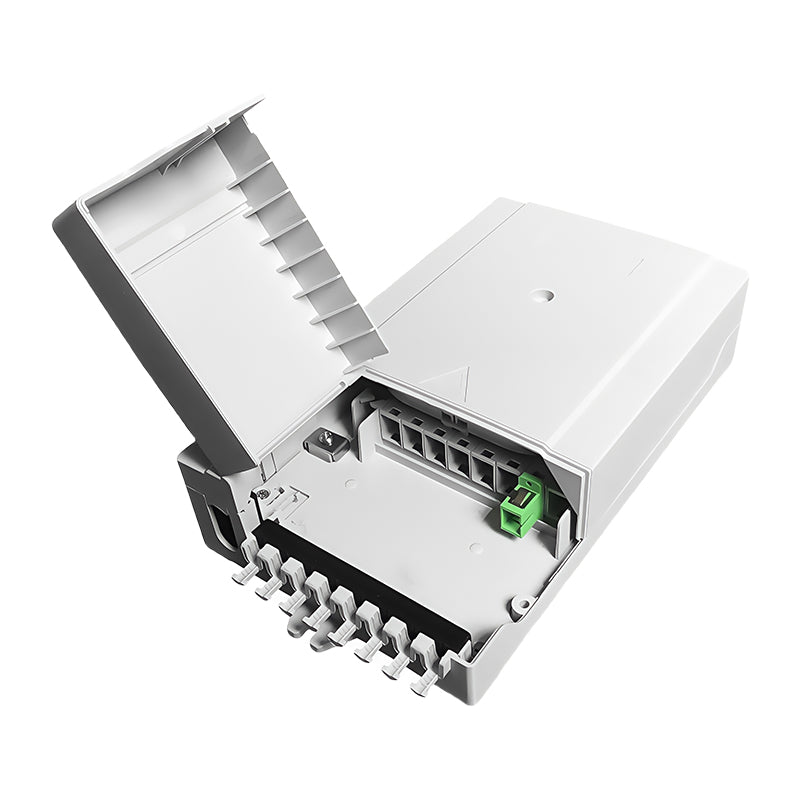

FFB-T423 8-Core Fiber Floor Box

FFB-T423 8-Core Fiber Floor Box

  • Ideal for outdoor FTTx fiber optic networks, providing secure and organized fiber distribution.
  • Suitable for pole-mounted, wall-mounted, or direct-buried installations in urban or industrial environments.

Specification

Dimension (WxHxD): 235mm x 126mm x 52mm

Inlet / Outlet: 2+2(In-line) × Ø15mm / 8 × Ø3mm

Branch (Blind) ports: -

Splicing capacity: 24FO

Patching capacity: 8 SC

Suitable splitter: 1x8 Micro PLC Splitter

Packing List

Carton Size: 56x25x34CM

Pieces per Carton: 20PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FFB-T423 Fiber Floor Box is a compact and reliable solution for fiber optic distribution in indoor FTTx networks. Designed to accommodate 8 SC adapters and 2 splice trays for up to 24 fiber splices, each supporting up to 12 fibers. and can be equipped with a 1x8 micro PLC splitter, making it perfect for environments that require fiber management and distribution.

    Built with high-quality ABS material, the FFB-T423 offers IP54-rated protection, ensuring resistance to dust and water in moderate indoor environments. This versatile and space-efficient box is ideal for use in offices, data centers, and other indoor spaces where fiber connectivity is crucial.

  • Feature & Benifits

    Port capacities of the FFB-T423 8-Core Fiber Floor Box:
    • Splicing capacity: 24FO
    • Patching capacity: 8 SC
    • Splitter capacity: 1x8 Micro PLC Splitter
    Key features for the FFB-T423 8-Core Fiber Floor Box:
    • IP54 Protection: Provides dustproof and water-resistant protection for fiber splices in moderate indoor environments.

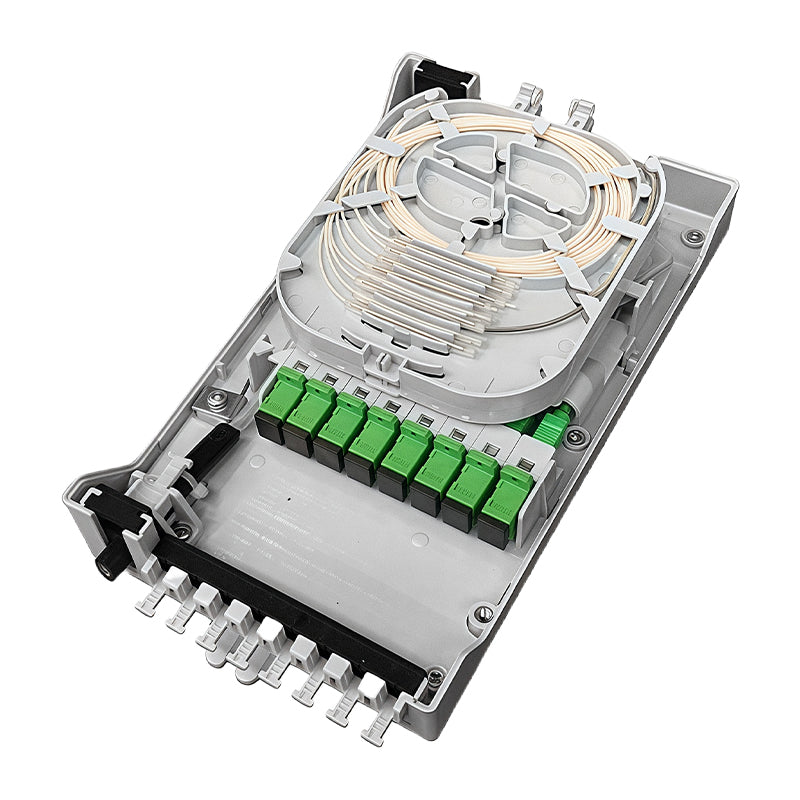

    • Supports Up to 24 Fiber Splices: Two trays, each supporting 12 fibers, ideal for medium-density fiber networks.
    • Can Accommodate 1x8 Micro PLC Splitter: Allows for efficient fiber distribution and splitting in a compact form factor.
    • Durable ABS Construction: Built from high-quality ABS material for long-lasting reliability and impact resistance.
    • Compact and Space-Efficient: Ideal for installations in confined indoor spaces like offices or data centers.
    • Easy Installation: Simple to install in various indoor environments, offering a neat and organized fiber management solution.

Specifications

Part No. FFB-T423
Color Black / White / Gray / Light Gray
Dimension 235mm x 126mm x 52mm
Material of Housing ABS or PC/ABS
Protection class IP IP54
Main Cable Ports 2+2(In-line) × Ø15mm
Branch Cable Ports -
Drop Cable Ports 8 × Ø3mm
Fusion Splice 24FO
Number of Splice Tray 2 Trays
Suitable Splitter 1x8 Micro PLC Splitter
Number of Adapters 8 SC
Mount Way Wall Mount
