Part No.: GP-T427

8-Core Fiber Floor Box

8-Core Fiber Floor Box

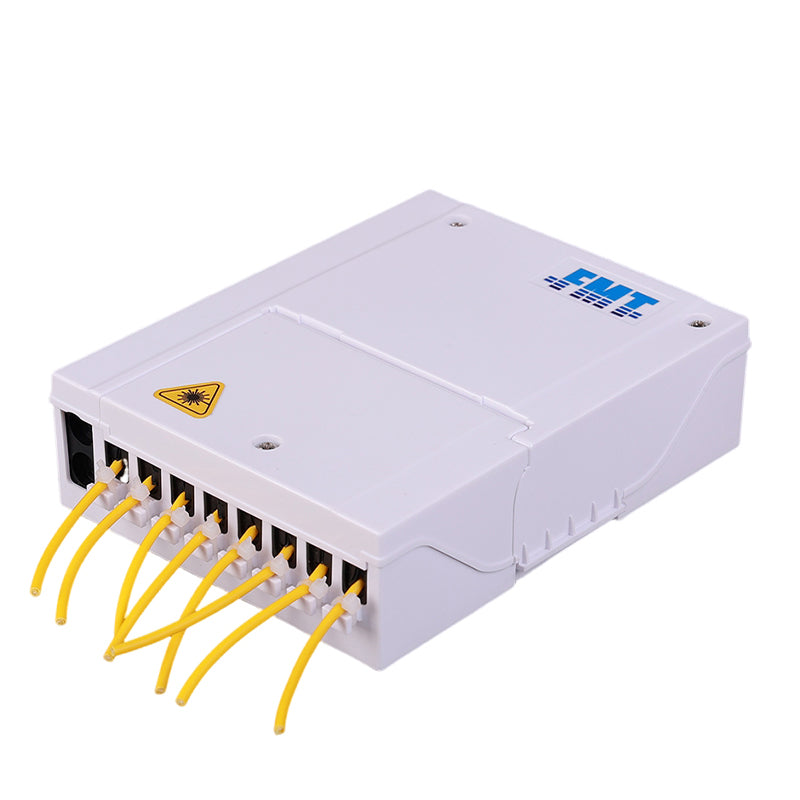

The GP-T427 Optical Distribution Unit (ODU) is designed for secure and efficient fiber-to-pigtail connections, making it ideal for indoor installations or use within cabinets. Its compact design and clamshell cover provide easy access and superior fiber management, making it a perfect choice for space-constrained environments.

Specification

Dimension (WxHxD): 169x130x44mm

Inlet / Outlet: 2 & 2 (In-line) / 8

Branch (Blind) ports: -

Splicing capacity: 8FO

Patching capacity: 8 SC

Suitable splitter: 1:8 Micro PLC Splitter

Packing List

Carton Size: 59.5x42x31.5CM

Pieces per Carton: 40 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GP-T427 Optical Distribution Unit (ODU) is a compact and durable fiber management solution, ideal for indoor or cabinet installations. Constructed from high-quality LSZH plastic, the unit offers enhanced safety with low smoke and zero halogen emissions. The box features a clamshell design for easy access, along with a special drop cable access window that eliminates the need to open the entire box during maintenance. Inside, the fiber management is optimized with clear routing paths and a dedicated slot for a micro PLC splitter. The unit supports up to 8 fiber splices and accommodates 8 SC adapters, making it a reliable and organized solution for fiber distribution.

  • Feature & Benifits

    Port capacities of the 8-Core Fiber Floor Box:
    • Splicing capacity: 8FO
    • Patching capacity: 8 SC
    • Splitter capacity: 1:8 Micro PLC Splitter
    Key features for the 8-Core Fiber Floor Box:

    Compact and Durable: Made from brand new LSZH plastic for safety and long-term reliability.

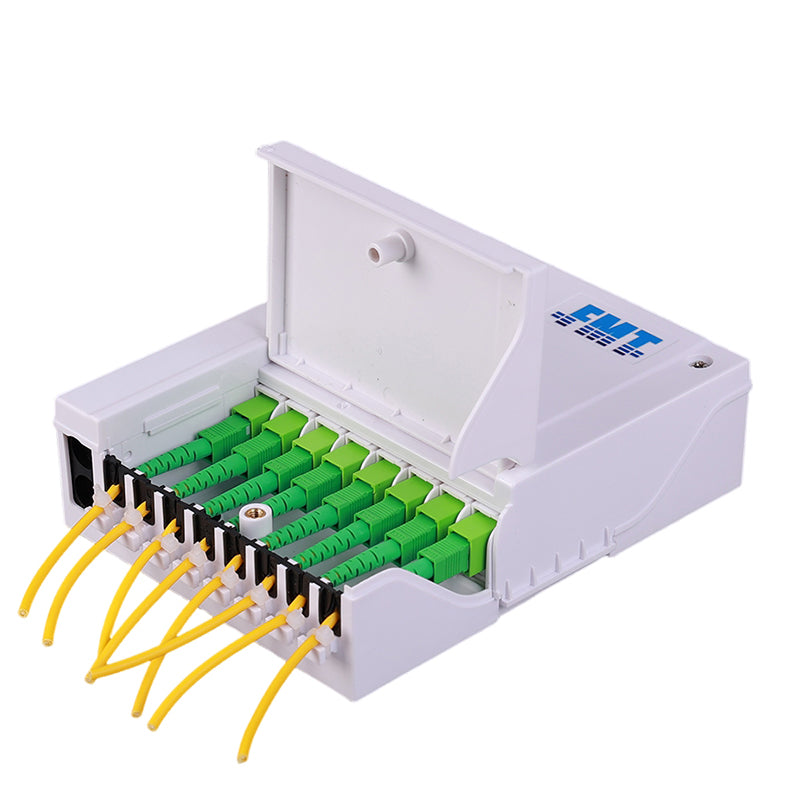

    Clamshell Design with Access Window: Easy access to fibers without opening the entire box, ideal for quick maintenance.

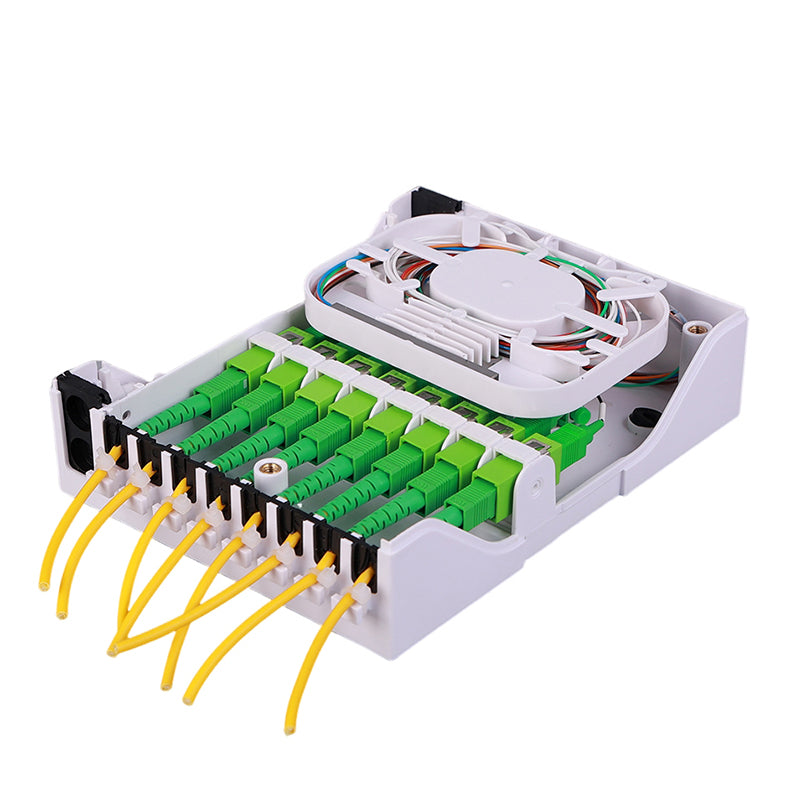

    Efficient Fiber Management: Clear division of fiber function areas with organized routing paths and a slot for a micro PLC splitter.

    High Capacity: Supports up to 8 fiber splices and accommodates 8 SC adapters for efficient fiber distribution.

    Wall-Mounted Installation: Designed for easy and secure wall-mounted setups, perfect for indoor environments and cabinets.

Specifications

Part No. GP-T427
Color Black / White / Gray / Light Gray
Dimension 169x130x44mm
Material of Housing ABS or PC/ABS
Protection class IP IP43
Main Cable Ports 2 & 2 (In-line)
Branch Cable Ports -
Drop Cable Ports 8
Fusion Splice 8FO
Number of Splice Tray 1
Suitable Splitter 1:8 Micro PLC Splitter
Number of Adapters 8 SC
Mount Way Wall-mounted
