Part No.: FFB-T428

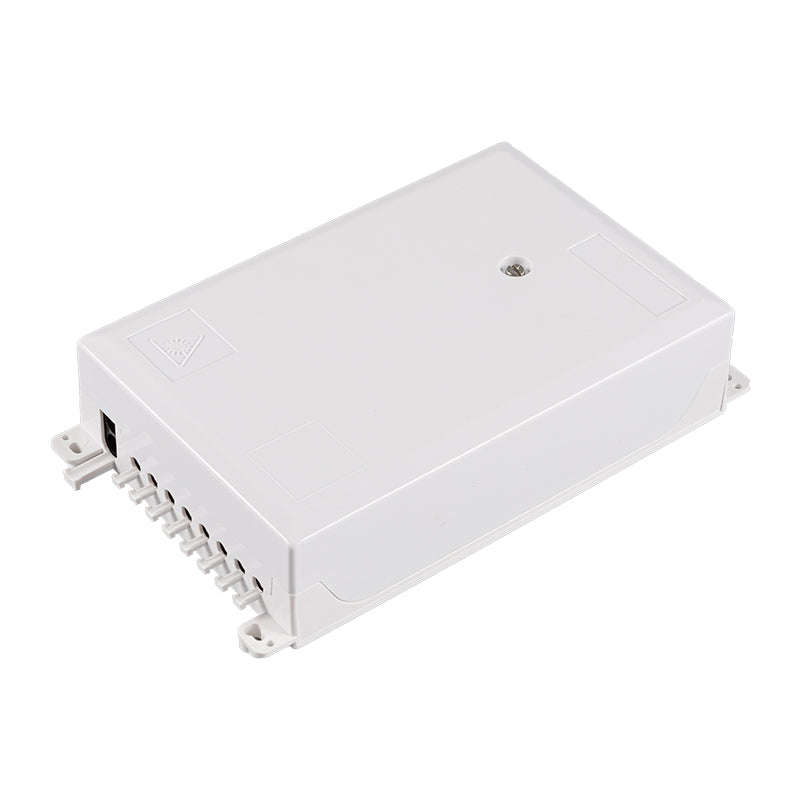

FFB-T428 Optical Distribution Terminal Box

FFB-T428 Optical Distribution Terminal Box

  • Designed for connecting optical fibers to pigtails, providing full splice capacity and excellent fiber management.
  • Suitable for indoor use or installation in cabinets.

Specification

Dimension (WxHxD): 215×126×50mm

Inlet / Outlet: 2+2(In-line) × Ø10mm / 8 × Ø5mm

Branch (Blind) ports: -

Splicing capacity: 24F

Patching capacity: 8 SC Adapters

Suitable splitter: 1x8 micro PLC splitter

Packing List

Carton Size: 56x25x34CM

Pieces per Carton: 20PCS/CTN

Request for Quotation View full details
  • Description

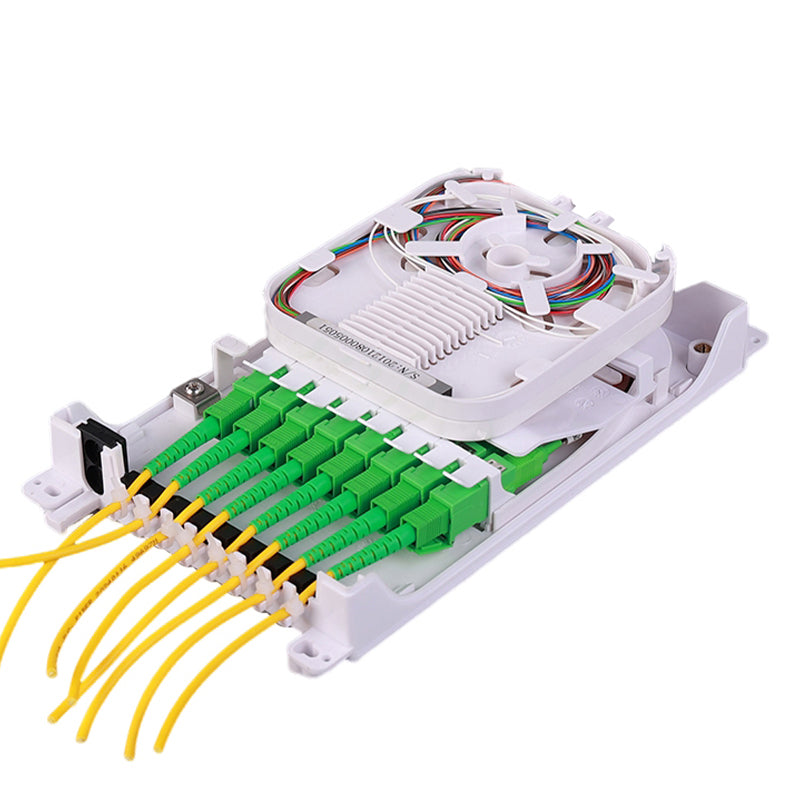

    The FFB-T428 Optical Distribution Terminal offers an efficient and organized solution for fiber optic management. This box is designed for connecting optical fibers to pigtails and provides a full splice area for high-capacity fiber installations. With clear fiber routing and dedicated spaces for components like micro PLC splitters, the FFB-T428 ensures optimized fiber organization and protection.

    The terminal features two protection covers—one for the customer area and another for the splice area—ensuring double protection for your fiber connections. It is made from brand-new LSZH (Low Smoke Zero Halogen) plastic, providing durability and safety in both residential and commercial settings. The terminal can support up to 12 fibers per tray and is compatible with 1x8 micro PLC splitters, offering flexibility in fiber distribution.

  • Feature & Benifits

    Port capacities of the FFB-T428 Optical Distribution Terminal Box:
    • Splicing capacity: 24F
    • Patching capacity: 8 SC Adapters
    • Splitter capacity: 1x8 micro PLC splitter
    Key features for the FFB-T428 Optical Distribution Terminal Box:

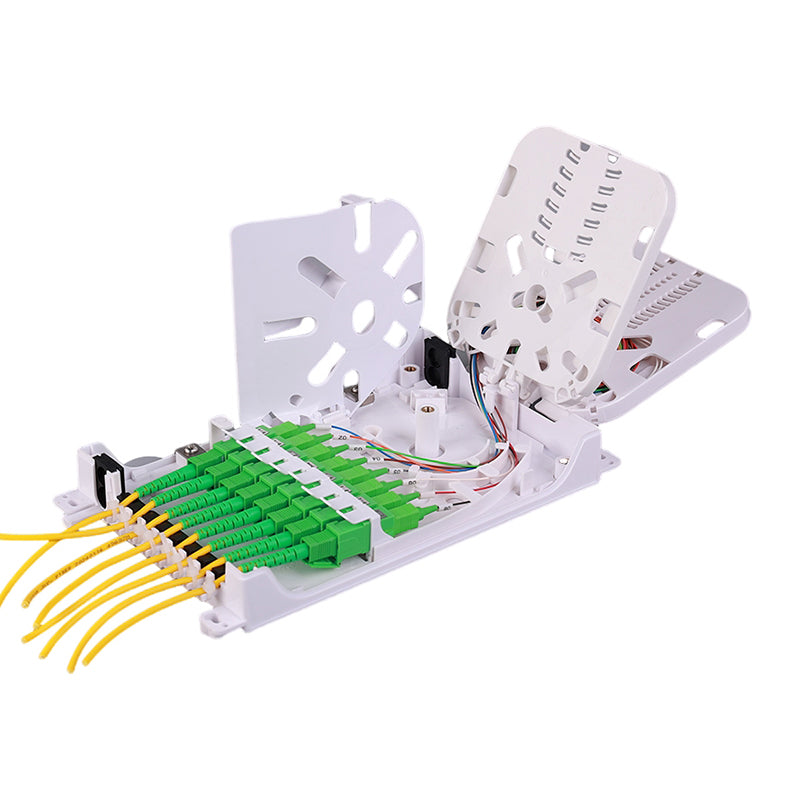

    • Double Protection: Dual covers protect both the customer area and the splice area, ensuring secure fiber connections.
    • Clear Fiber Management: Designed with clear fiber function area divisions and fiber routing paths for easy organization.
    • Micro Splitter Slot: Special slot for integrating a 1x8 micro PLC splitter in the splice tray.
    • Wall-Mounting Flexibility: Splice tray can hold at a 120-degree angle when wall-mounted with full load.
    • Easy Installation: Adaptor holders are adjustable, making installation straightforward.
    • Efficient Fiber Storage: The storage tray can be held at a 90-degree angle, improving accessibility and organization.

Specifications

Part No. FFB-T428
Color Black / White / Gray / Light Gray
Dimension 215×126×50mm
Material of Housing ABS or PC/ABS
Protection class IP IP53
Main Cable Ports 2+2(In-line) × Ø10mm
Branch Cable Ports -
Drop Cable Ports 8 × Ø5mm
Fusion Splice 24F
Number of Splice Tray 2 Trays (12F/Tray)
Suitable Splitter 1x8 micro PLC splitter
Number of Adapters 8 SC Adapters
Mount Way Wall Mount
