Part No.: FFB-T428i-I

FFB-T428i-I Fiber Distribution Box with Small Flip Cover

FFB-T428i-I Fiber Distribution Box with Small Flip Cover

  • Ideal for indoor fiber optic installations, particularly in cabinets or controlled environments.
  • Provides reliable fiber connectivity with easy access for maintenance and future expansions, suitable for both commercial and residential use.

Specification

Dimension (WxHxD): 215mm × 126mm × 50mm

Inlet / Outlet: 2+2(In-line) × Ø10mm / 8 × Ø5mm

Branch (Blind) ports: -

Splicing capacity: 24F

Patching capacity: 8 SC Adapters

Suitable splitter: 1x8 Micro PLC Splitter

Packing List

Carton Size: 56x25x34CM

Pieces per Carton: 20PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FFB-T428i-I Fiber Distribution Box is a versatile and compact solution for managing fiber optic cables in indoor environments. Designed for wall-mounted applications, this box provides efficient fiber management, with a special window for drop cable access, allowing easy access without opening the entire box. It features a strong, brand-new plastic LSZH construction, ensuring both durability and environmental safety.

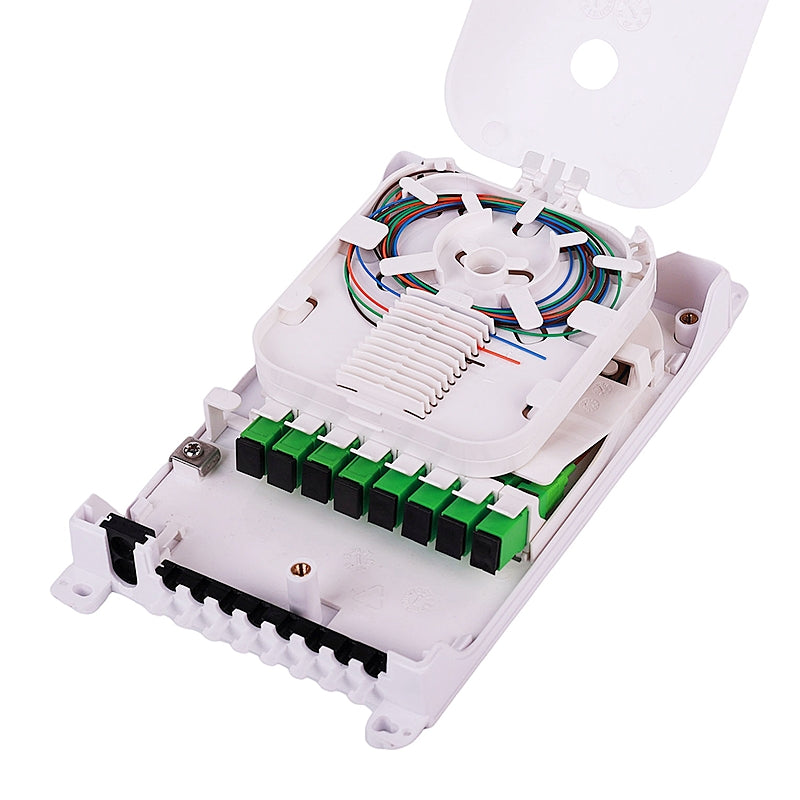

    The FFB-T428i-I comes equipped with two splice trays that support up to 24 fibers and offers clear function area divisions for organized routing. Its design includes a dedicated slot for a micro splitter (1:8), making it an excellent choice for fiber-to-the-home (FTTH) and other optical distribution networks. The box also features a unique flip cover on the lid for easy operation, while the cable entry points are reinforced with a secure cable holding fixture for added stability.

  • Feature & Benifits

    Port capacities of the FFB-T428i-I Fiber Distribution Box with Small Flip Cover:
    • Splicing capacity: 24F

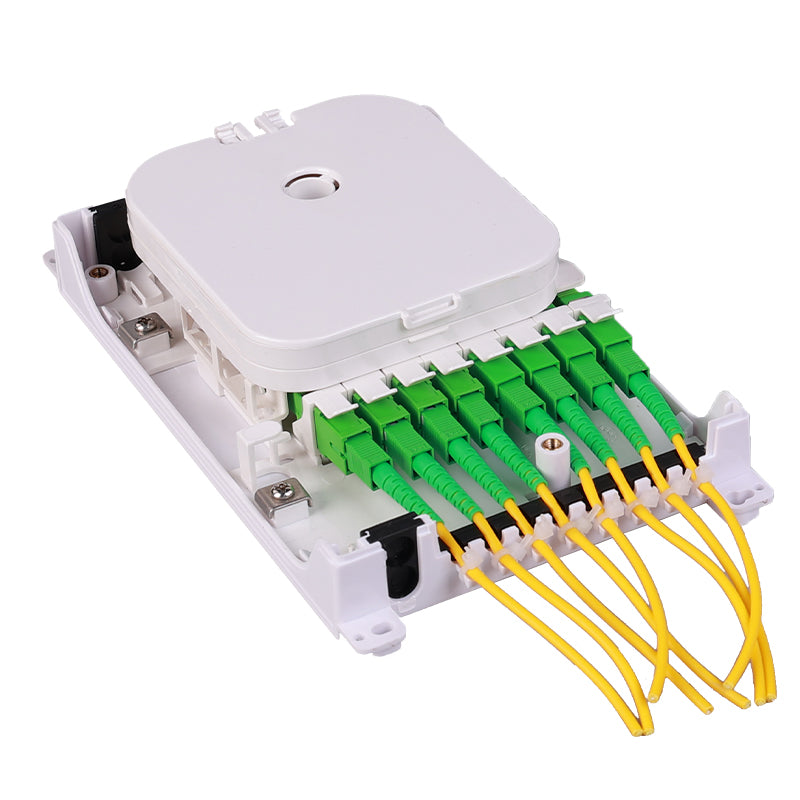

    • Patching capacity: 8 SC Adapters
    • Splitter capacity: 1x8 Micro PLC Splitter
    Key features for the FFB-T428i-I Fiber Distribution Box with Small Flip Cover:

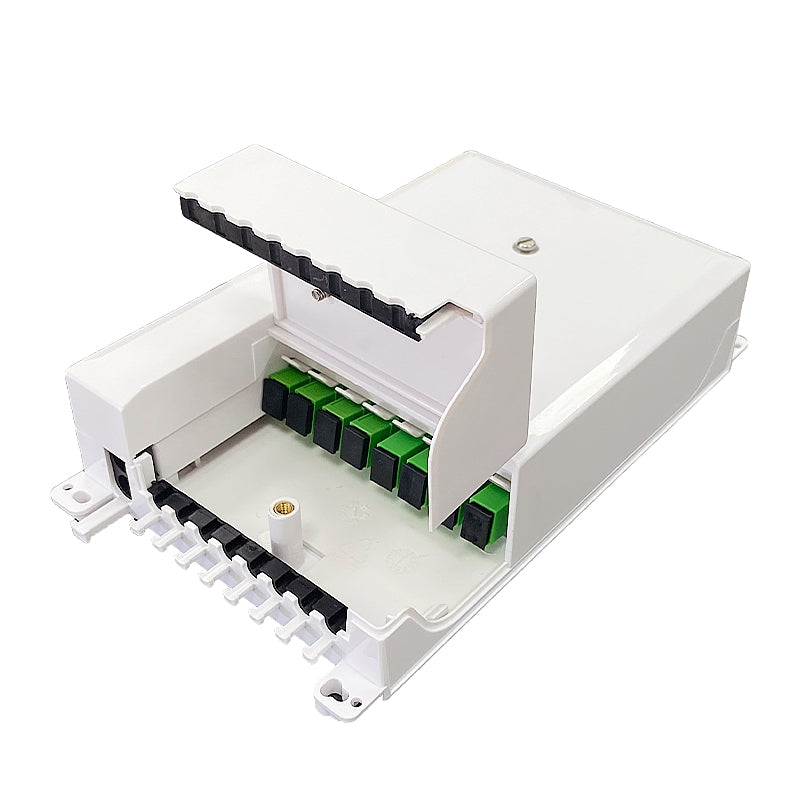

    • Small Flip Cover: Unique lid design allows easy access without opening the entire box.
    • Reinforced Cable Entry: Features a strengthened cable holding fixture at the cable entry points for secure installation.
    • Made of LSZH Plastic: Constructed from brand-new, low smoke zero halogen (LSZH) plastic for enhanced safety and environmental friendliness.
    • Clear Fiber Management: Well-organized internal layout with clear fiber function area division for easy cable routing.
    • Micro Splitter Slot: Includes a dedicated slot in the splice tray for 1:8 micro PLC splitters.

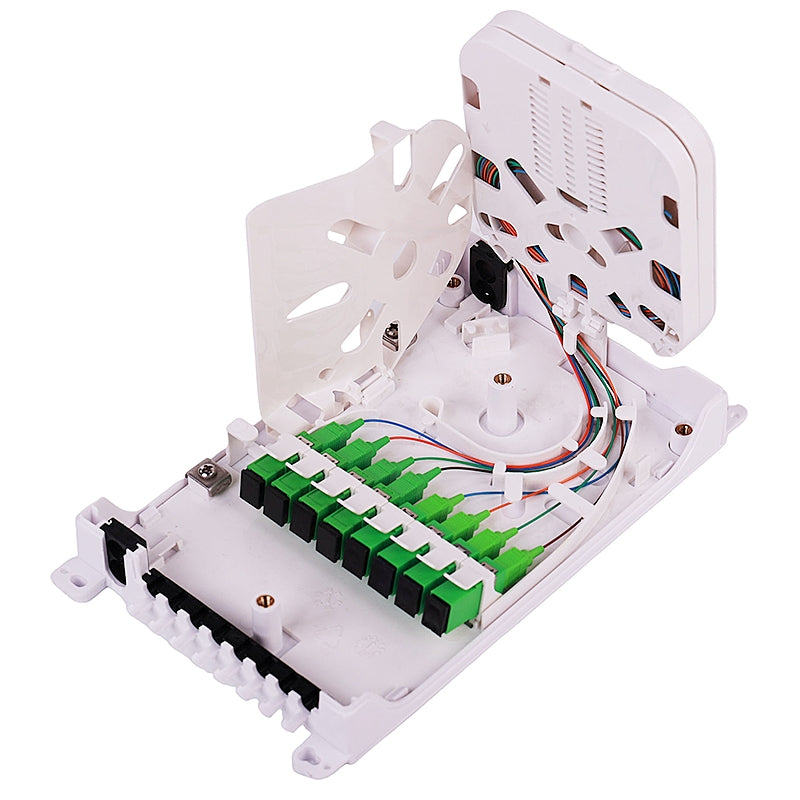

    • Wall-Mount Design: Supports easy wall mounting with splice trays that can hold at a 120-degree angle when fully loaded.

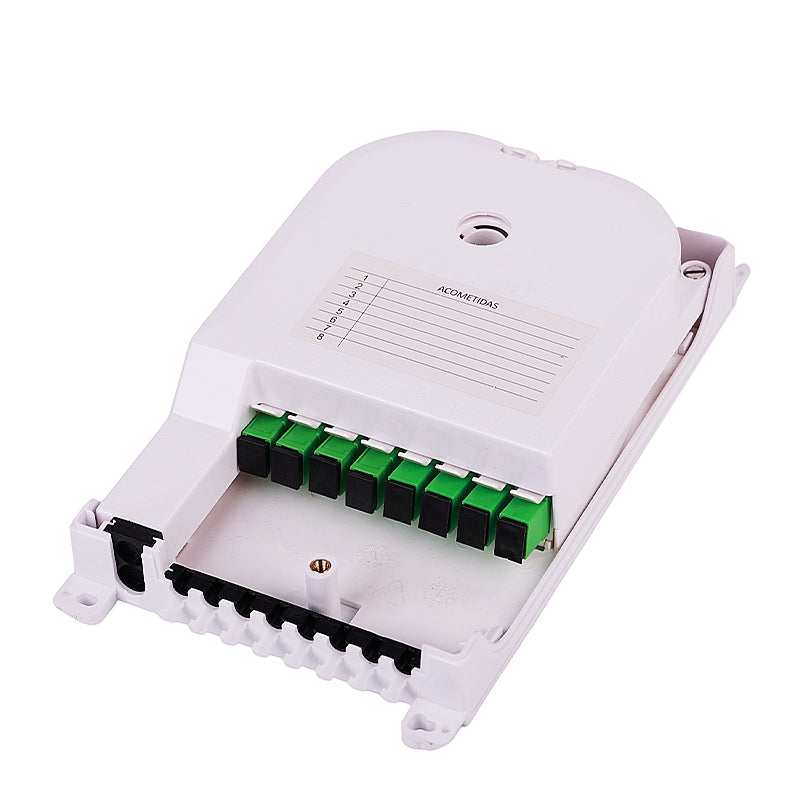

    • Adaptor Holders: The SC adapter holders are slightly elevated for easier installation and access.
    • Storage Tray: Storage tray can hold at a 90-degree angle for effective fiber management.

Specifications

Part No. FFB-T428i-I
Color Black / White / Gray / Light Gray
Dimension 215mm × 126mm × 50mm
Material of Housing ABS or PC/ABS
Protection class IP IP53
Main Cable Ports 2+2(In-line) × Ø10mm
Branch Cable Ports -
Drop Cable Ports 8 × Ø5mm
Fusion Splice 24F
Number of Splice Tray 2 Trays (12F/Tray)
Suitable Splitter 1x8 Micro PLC Splitter
Number of Adapters 8 SC Adapters
Mount Way Wall Mount
