Part No.: FFB-T433

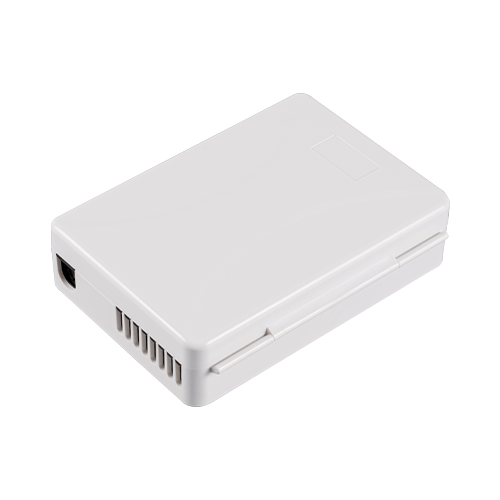

FFB-T433 Fiber Optic Floor Box

FFB-T433 Fiber Optic Floor Box

  • Designed for providing complete splice management and efficient fiber organization in various fiber optic installations.
  • Ideal for use in buildings or small street cabinets where a compact and organized solution is needed for fiber splicing.

Specification

Dimension (WxHxD): 150mm ร— 108mm ร— 36mm

Inlet / Outlet: 1+1(In-line) ร— ร˜13mm / 8 ร— ร˜4mm

Branch (Blind) ports: -

Splicing capacity: 16FO

Patching capacity: -

Suitable splitter: 1x4 or 1x8 Micro PLC Splitter per Tray

Packing List

Carton Size: 60x34x25CM

Pieces per Carton: 50PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FFB-T433 Fiber Optic Floor Box is a specialized solution for fiber splicing, designed to ensure optimal fiber protection and efficient management. This box is specifically built for splicing purposes and can accommodate up to 16 fibers, offering a neat and organized method for managing optical fibers in small spaces. It features a compact structure with full splice capabilities, designed for easy installation and maintenance.

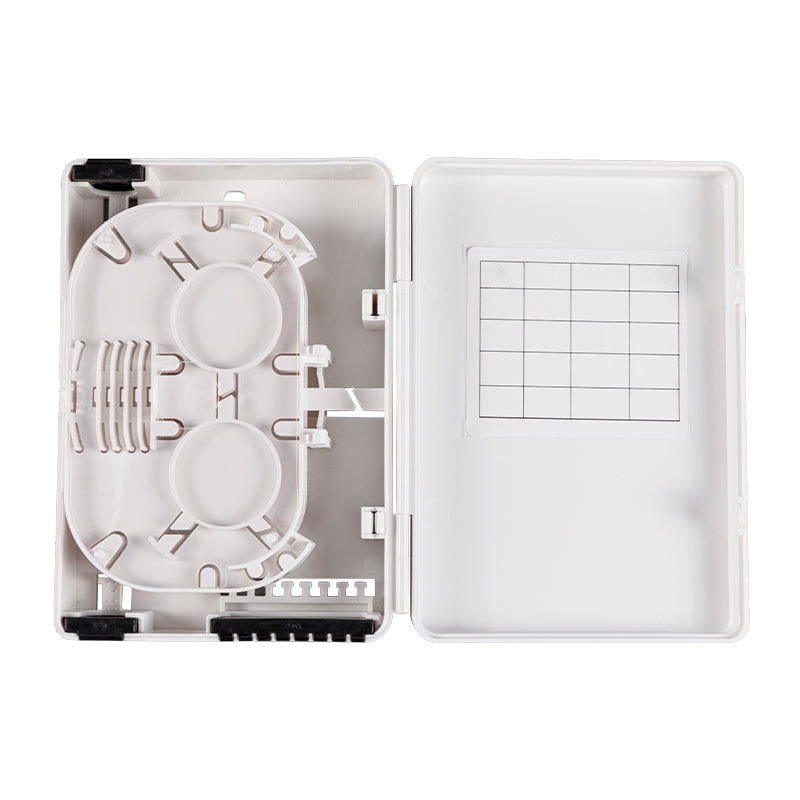

    The box includes two splice trays, each capable of holding up to 8 fibers, and is equipped with transparent plastic covers to protect the fibers during operation. The unique flip design of the splice trays makes access and maintenance easier. Additionally, the cover with a hinge and snap joint makes installation and removal quick and straightforward.

    Please note, this model is designed for splicing purposes only and does not support the installation of adapters.

  • Feature & Benifits

    Port capacities of the FFB-T433 Fiber Optic Floor Box:
    • Splicing capacity: 16FO
    • Patching capacity: -
    • Splitter capacity: 1x4 or 1x8 Micro PLC Splitter per Tray
    Key features for the FFB-T433 Fiber Optic Floor Box:
    • Splicing Only: Specifically designed for fiber splicing, with no support for adapter installation.
    • Compact Design: Provides efficient fiber management in a small, space-saving unit.
    • Hinged Cover with Snap Joint: Easy installation and removal, offering convenient access to the fiber splicing area.

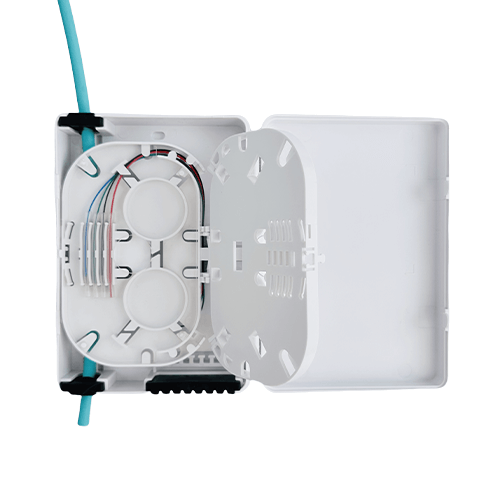

    • Divided Operating Space: Clear division of space for loop-through cables and pigtail splicing, ensuring an organized and easy-to-maintain setup.
    • Micro PLC Splitter Compatibility: Supports 1x4 or 1x8 micro PLC splitters, enhancing flexibility for fiber distribution.
    • Transparent Splice Tray Covers: Each splice tray is equipped with a transparent plastic cover for fiber protection.

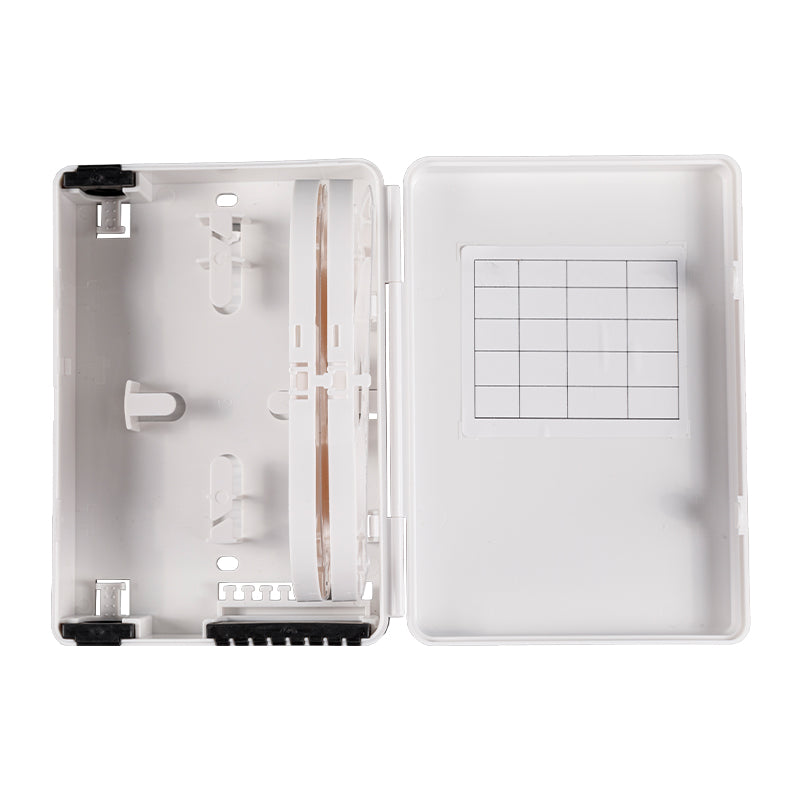

    • Flip Design for Splice Tray: Facilitates easy access to fibers and allows for more efficient splicing.

Specifications

Part No. FFB-T433
Color Black / White / Gray / Light Gray
Dimension 150mm ร— 108mm ร— 36mm
Material of Housing ABS or PC/ABS
Protection class IP IP43
Main Cable Ports 1+1(In-line) ร— ร˜13mm
Branch Cable Ports -
Drop Cable Ports 8 ร— ร˜4mm
Fusion Splice 16FO
Number of Splice Tray 2 Trays (8F/Tray๏ผ‰
Suitable Splitter 1x4 or 1x8 Micro PLC Splitter per Tray
Number of Adapters -
Mount Way Wall Mount
