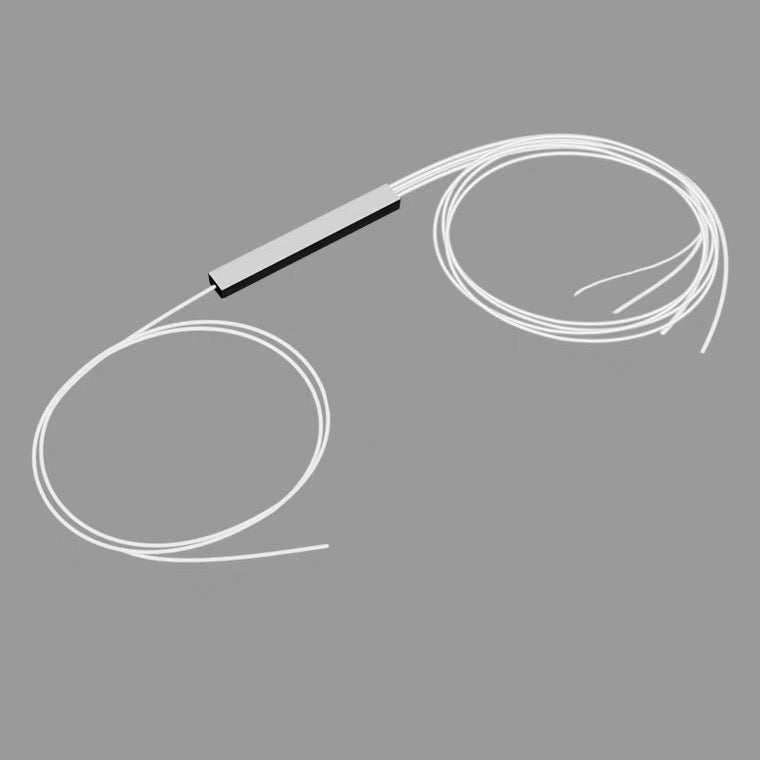

Bare Type Micro PLC Splitter

Bare Type Micro PLC Splitter

Item
Download File
Request for Quotation View full details

  • Features

    • Low insertion loss, Low PDL
      and High reliability
    • High return loss and Good repeatability
    • Wide wavelength range
    • Excellent channel-to-channel uniformity

  • Applications

    • LAN, WAN and Metro Networks
    • FTTH project & FTTX Deployments
    • CATV System
    • GPON, EPON
    • Fiber Optic Test Equipment
    • Data-base Transmit Broadband Net

Encapsulation Size

Item 1x2 1x4 1x8 1x16 1x32 1x64
Length*Width*Height (mm) 40×4×440×4×440×4×4 50×7×450×7×460×12×4

Item 2x2 2x4 2x8 2x16 2x32 2x64
Length*Width*Height (mm) 50×4×450×4×450×4×4 60×7×460×7×460×12×4

Technical Specs for PLC Splitter with Connector

Item 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Fiber Type G.657.A
Working Wavelength 1260nm~1650nm
Standard Insertion Loss (dB) ≤4.0 ≤7.4 ≤10.5 ≤13.8 ≤17.0 ≤20.6 ≤23.8
P- Grade Insertion Loss (dB) ≤3.8 ≤7.2 ≤10.3 ≤13.6 ≤16.8 ≤20.4 ≤23.5
Uniformity (dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
PDL (dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss (dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
Return Loss (dB) ≥50
Directivity (dB) ≥55
Operating Temp. Range (dB) -40℃~ +85℃ 1

Item 2x2 2x4 2x8 2x16 2x32 2x64 2x128
Fiber Type G.657.A
Working Wavelength 1260nm~1650nm
Standard Insertion Loss (dB) ≤4.2 ≤7.8 ≤10.8 ≤14.2 ≤17.6 ≤20.8 ≤24.2
P- Grade Insertion Loss (dB) ≤4.0 ≤7.5 ≤10.6 ≤13.9 ≤17.2 ≤20.5 ≤23.8
Uniformity (dB) ≤0.8 ≤1.0 ≤1.2 ≤1.5 ≤1.8 ≤2.0 ≤3.0
PDL (dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss (dB) ≤0.8 ≤1.0 ≤1.2 ≤1.5 ≤1.8 ≤2.0 ≤3.0
Return Loss (dB) ≥50
Directivity (dB) ≥55
Operating Temp. Range (dB) -40℃~ +85℃ 1
