Part No.: FFB-T418

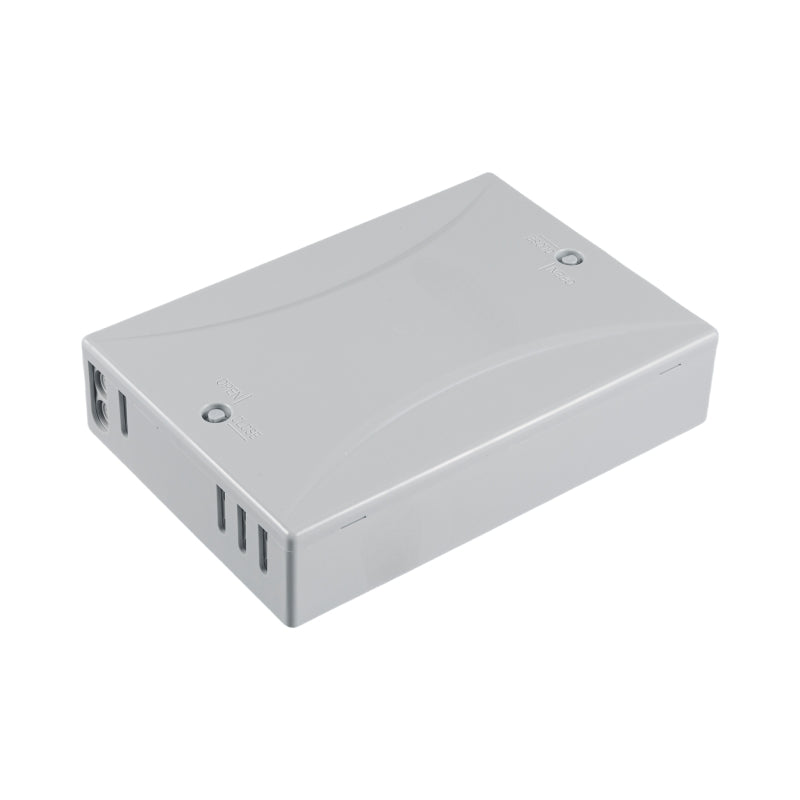

FFB-T418 Optical Distribution Box

FFB-T418 Optical Distribution Box

  • Designed for the connection of optical fibers to pigtails, providing full splicing, adapter patching, and fiber management.
  • Suitable for both indoor installations and street cabinet applications.

Specification

Dimension (WxHxD): 158mm × 204mm × 54mm

Inlet / Outlet: 2+2(In-line) × Ø15mm / 8+8(In-line) × Ø 5mm

Branch (Blind) ports: -

Splicing capacity: 48F

Patching capacity: -

Suitable splitter: 1x8 Micro PLC Splitter per Tray

Packing List

Carton Size: 57x36x36CM

Pieces per Carton: 20PCS/CTN

Download File
Request for Quotation View full details

  • Description

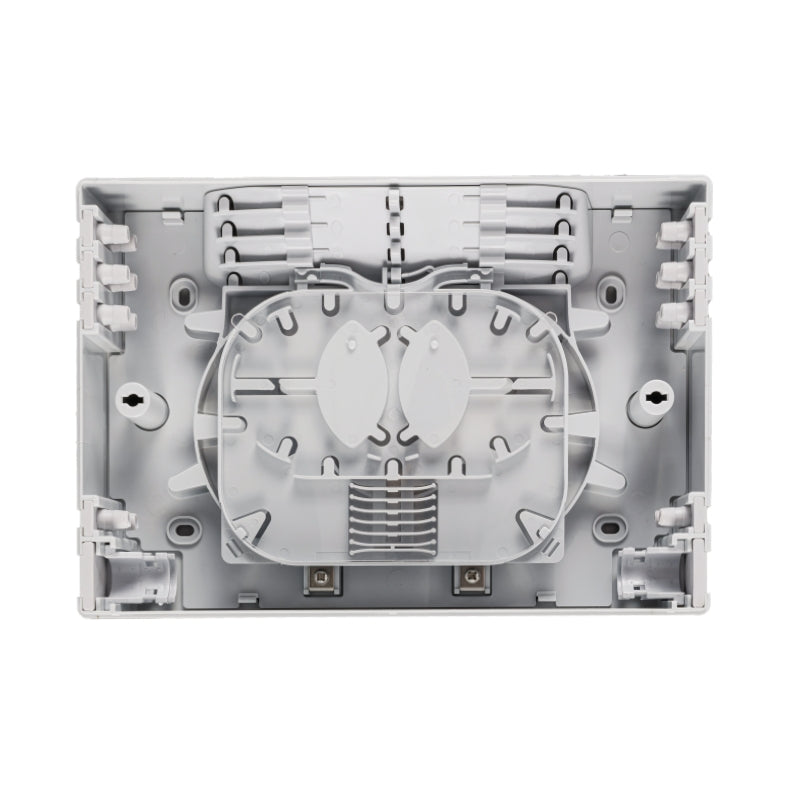

    The FFB-T418 Optical Distribution Unit (ODU) offers a robust and reliable solution for managing optical fiber connections. Made from high-strength engineering alloy plastic, it ensures durability and long service life. The slide-open structure provides easy access with an audible “click” when the cover is securely locked in place. The ODU's operating space is divided into two sections: one for loop-through cables and the other for pigtail splicing. The flip-design splice trays allow for easy maintenance, with each tray capable of being positioned at either 45° or 90°. With capacity for multiple adapters and splice trays, the FFB-T418 is perfect for FTTH projects and street cabinet installations.

  • Feature & Benifits

    Port capacities of the FFB-T418 Optical Distribution Box:
    • Splicing capacity: 48F
    • Patching capacity: -
    • Splitter capacity: 1x8 Micro PLC Splitter per Tray
    Key features for the FFB-T418 Optical Distribution Box:
    • Durable Construction: High-strength engineering alloy plastic for enhanced longevity.
    • Slide-Open Design: Provides easy access with a secure locking mechanism.
    • Dual Operating Spaces: Separate areas for loop-through cables and pigtail splicing.
    • Flip Splice Tray Design: Trays can be adjusted to 45° or 90° for easy maintenance.
    • High Capacity: Supports multiple adapters and splice trays, ideal for high-density installations.
    • Splitter Compatibility: Accommodates 1:4 or 1:8 micro splitters per tray.

Specifications

Part No. FFB-T418
Color Black / White / Gray / Light Gray
Dimension 158mm × 204mm × 54mm
Material of Housing ABS or PC/ABS
Protection class IP IP54
Main Cable Ports 2+2(In-line) × Ø15mm
Branch Cable Ports -
Drop Cable Ports 8+8(In-line) × Ø 5mm
Fusion Splice 48F
Number of Splice Tray 4 Trays
Suitable Splitter 1x8 Micro PLC Splitter per Tray
Number of Adapters -
Mount Way Wall Mount
