Part No.: FFB-T428L

FFB-T428L Optical Distribution Terminal Box – Extended Version

FFB-T428L Optical Distribution Terminal Box – Extended Version

  • Designed for connecting optical fibers to pigtails, providing a full splice and efficient fiber management solution.
  • Suitable for indoor use or installation in cabinets, perfect for environments requiring flexible and organized fiber optic connectivity.

Specification

Dimension (WxHxD): 240mm × 126mm × 49mm

Inlet / Outlet: 2+2(In-line) × Ø10mm / 8 × Ø5mm

Branch (Blind) ports: -

Splicing capacity: 24F

Patching capacity: 8 SC Adapters

Suitable splitter: 1x8 micro PLC splitter

Packing List

Carton Size: 53x32x30CM

Pieces per Carton: 20PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FFB-T428L Optical Distribution Terminal is an extended version of the FFB-T428, offering additional space for enhanced fiber optic management. This terminal is designed to provide a seamless connection for optical fibers to pigtails, making it an ideal solution for fiber optic installations. The FFB-T428L supports full splice management and efficient fiber routing, while also being suitable for indoor use or cabinet installations.

    One of the standout features of this model is its ability to accommodate indoor fiber optic cold splice connectors, thanks to the longer design. It includes a two-layer cover for double protection—one layer to safeguard the customer area and another for the splice area, ensuring durability and security. The box’s clear fiber function area and fiber routing division make the setup clean and easy to manage.

  • Feature & Benifits

    Port capacities of the FFB-T428L Optical Distribution Terminal Box – Extended Version:
    • Splicing capacity: 24F
    • Patching capacity: 8 SC Adapters
    • Splitter capacity: 1x8 micro PLC splitter
    Key features for the FFB-T428L Optical Distribution Terminal Box – Extended Version:
    • Extended Design: A longer version of the FFB-T428, designed to accommodate indoor fiber optic cold splice connectors.

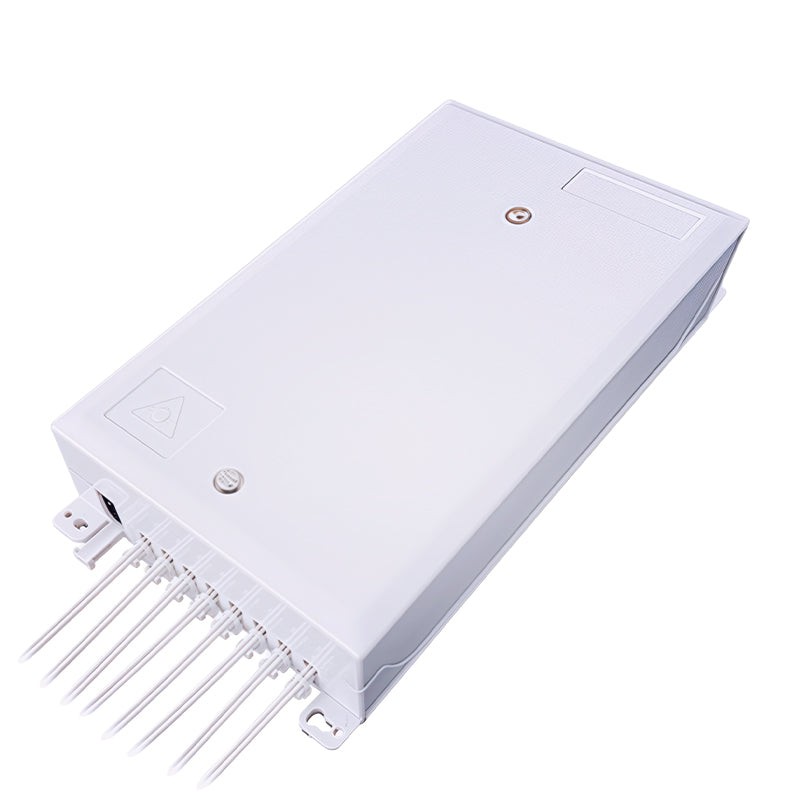

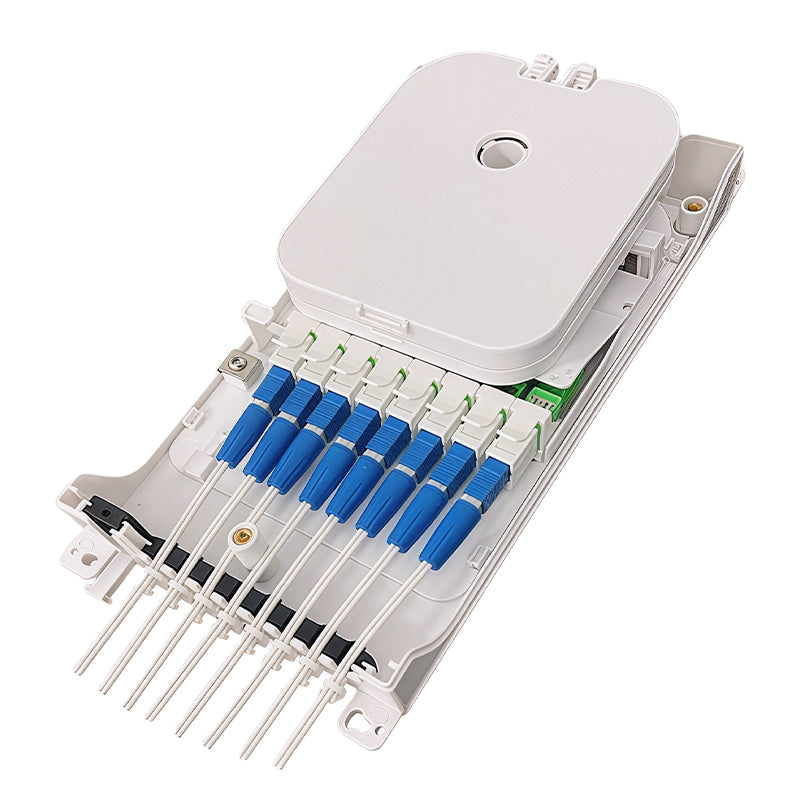

    • Double Protection: Dual cover design offers additional protection, with one cover for the customer area and another for the splice area, enhancing safety and performance.
    • Clear Fiber Function Area: Organized and clear fiber routing for easy installation and management.

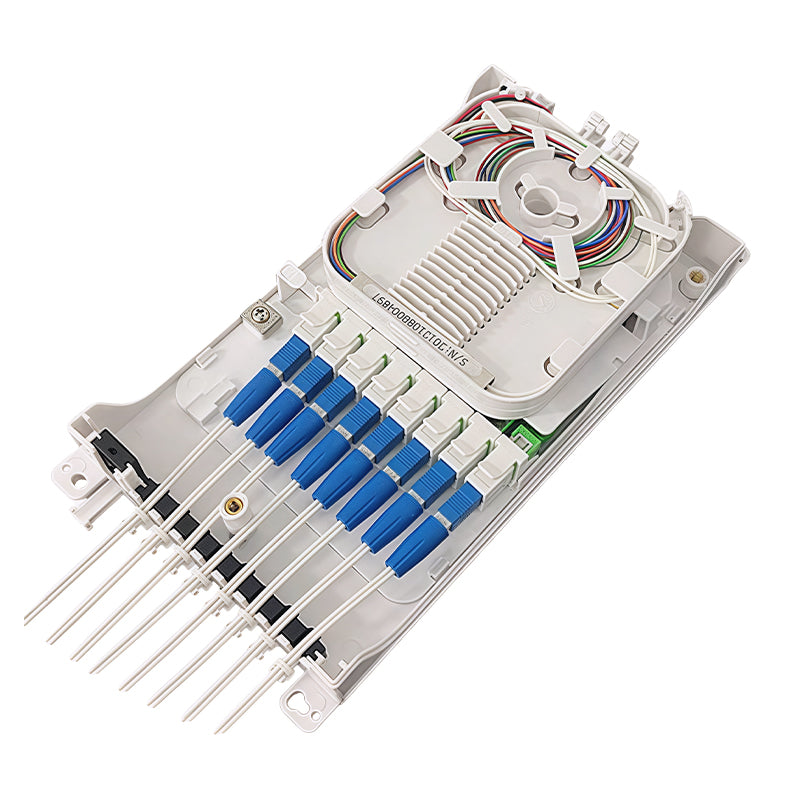

    • Special Slot for Micro Splitter: Dedicated slot in the splice tray for a 1:8 micro splitter.
    • 120° Splice Tray Angle: Splice trays can be angled to 120° when wall-mounted and fully loaded for better accessibility.
    • Liftable Adapter Holders: Adapter holders can be slightly lifted, simplifying the installation process.
    • Uncut Cable Storage Tray: Provides space for storing uncut cables neatly.
    • Extended Cable Distance: The increased distance from the adapter to the drop port is ideal for field connectors.
    • IP45 Protection: Two bolts on the cover ensure enhanced protection, meeting at least IP45 standards.

Specifications

Part No. FFB-T428L
Color Black / White / Gray / Light Gray
Dimension 240mm × 126mm × 49mm
Material of Housing ABS or PC/ABS
Protection class IP IP53
Main Cable Ports 2+2(In-line) × Ø10mm
Branch Cable Ports -
Drop Cable Ports 8 × Ø5mm
Fusion Splice 24F
Number of Splice Tray 2 Trays (12F/Tray)
Suitable Splitter 1x8 micro PLC splitter
Number of Adapters 8 SC Adapters
Mount Way Wall Mount
