Part No.: FFB-T434-4LCD

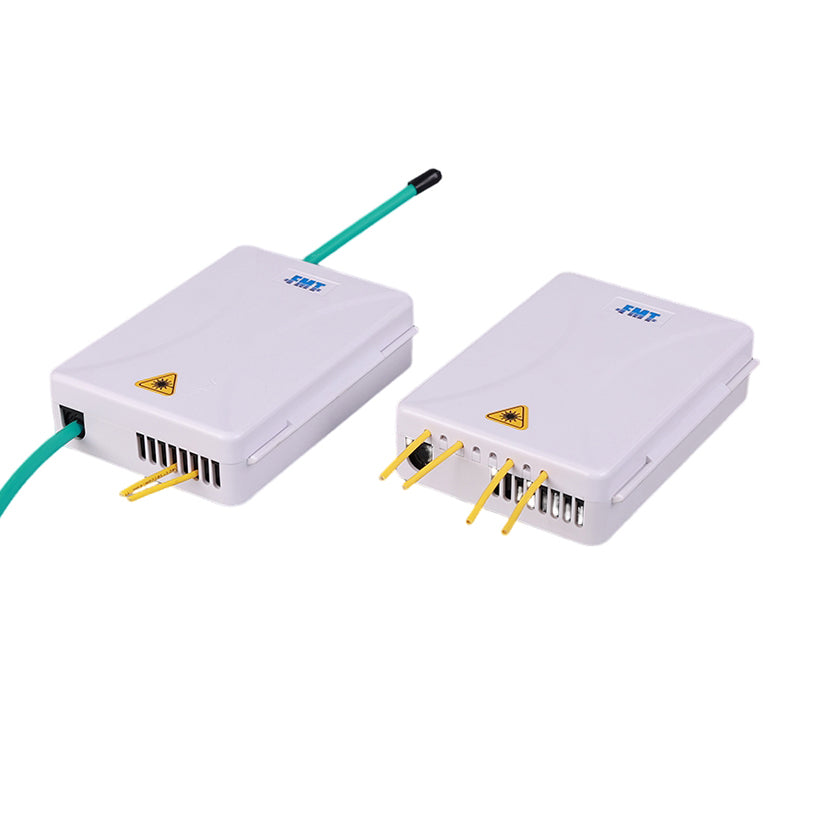

FFB-T434-4LCD Fiber Optic Distribution Box 8-Core

FFB-T434-4LCD Fiber Optic Distribution Box 8-Core

  • Designed for connecting optical fibers to pigtails, providing full splice management and efficient fiber routing.
  • IP43 rated, making it suitable for indoor applications where compact size and organized fiber management are essential.

Specification

Dimension (WxHxD): 150mm × 108mm × 35mm

Inlet / Outlet: 1+1(In-line) × Ø13mm / 8 × Ø3mm

Branch (Blind) ports: -

Splicing capacity: 8F

Patching capacity: 4 LC Duplex Adapters

Suitable splitter: 1x4 or 1x8 Micro PLC Splitter per Tray

Packing List

Carton Size: 60x34x25CM

Pieces per Carton: 50PCS/CTN

Download File
Request for Quotation View full details

  • Description

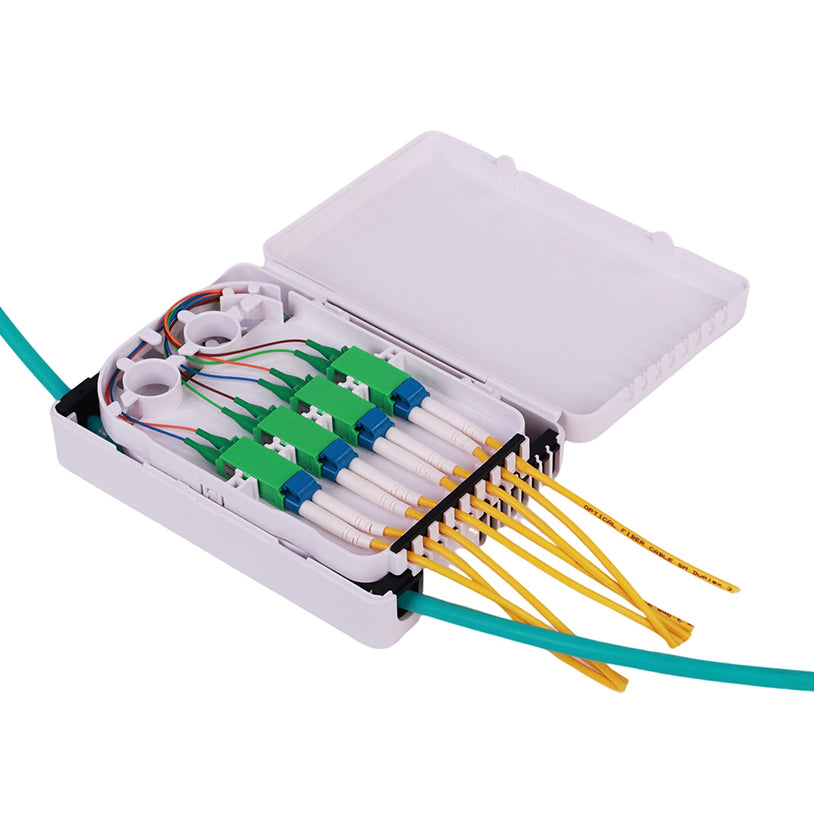

    The FFB-T434-4LCD Fiber Optic Distribution Box is a versatile solution for fiber optic installations, providing both splicing and adapter functionality in one compact design. This model features a splice tray capable of holding up to 8 fibers and an adapter tray that supports 4 LC Duplex adapters, providing an efficient solution for fiber distribution with 8 cores.

    Made from durable LSZH plastic, this box offers safety, reliability, and ease of use in indoor settings. The unit includes a dedicated space for uncut or reserved cables, ensuring organized fiber management. The box’s clear fiber routing and hinged cover make it user-friendly, while its IP43 rating ensures protection from dust and water ingress. The FFB-T434-4LCD is an ideal choice for installations that require both fiber splicing and high-density adapter management in a small form factor.

  • Feature & Benifits

    Port capacities of the FFB-T434-4LCD Fiber Optic Distribution Box 8-Core:
    • Splicing capacity: 8F
    • Patching capacity: 4 LC Duplex Adapters
    • Splitter capacity: 1x4 or 1x8 Micro PLC Splitter per Tray
    Key features for the FFB-T434-4LCD Fiber Optic Distribution Box 8-Core:
    • Compact Design: Space-efficient solution for fiber splicing and adapter management in a single unit.
    • 4 LC Duplex Adapters: Supports up to 4 LC Duplex adapters, offering 8 cores for fiber distribution.
    • Splice Tray: Includes a splice tray capable of handling up to 8 fibers for efficient splicing.
    • Clear Fiber Function Area: Organized fiber routing for easy installation and maintenance.
    • Reserved Cable Storage: Special area for storing uncut cables or reserved fiber for future use.
    • Hinged Cover: Easy to install and maintain, with quick access to the fiber splicing and adapter areas.
    • Micro Splitter Compatibility: Special slot for a 1:8 micro PLC splitter, enhancing flexibility for fiber connections.

Specifications

Part No. FFB-T434-4LCD
Color Black / White / Gray / Light Gray
Dimension 150mm × 108mm × 35mm
Material of Housing ABS or PC/ABS
Protection class IP IP43
Main Cable Ports 1+1(In-line) × Ø13mm
Branch Cable Ports -
Drop Cable Ports 8 × Ø3mm
Fusion Splice 8F
Number of Splice Tray 1 Tray (8F/Tray)
Suitable Splitter 1x4 or 1x8 Micro PLC Splitter per Tray
Number of Adapters 4 LC Duplex Adapters
Mount Way Wall Mount
