Part No.: FFB-T499-10SC

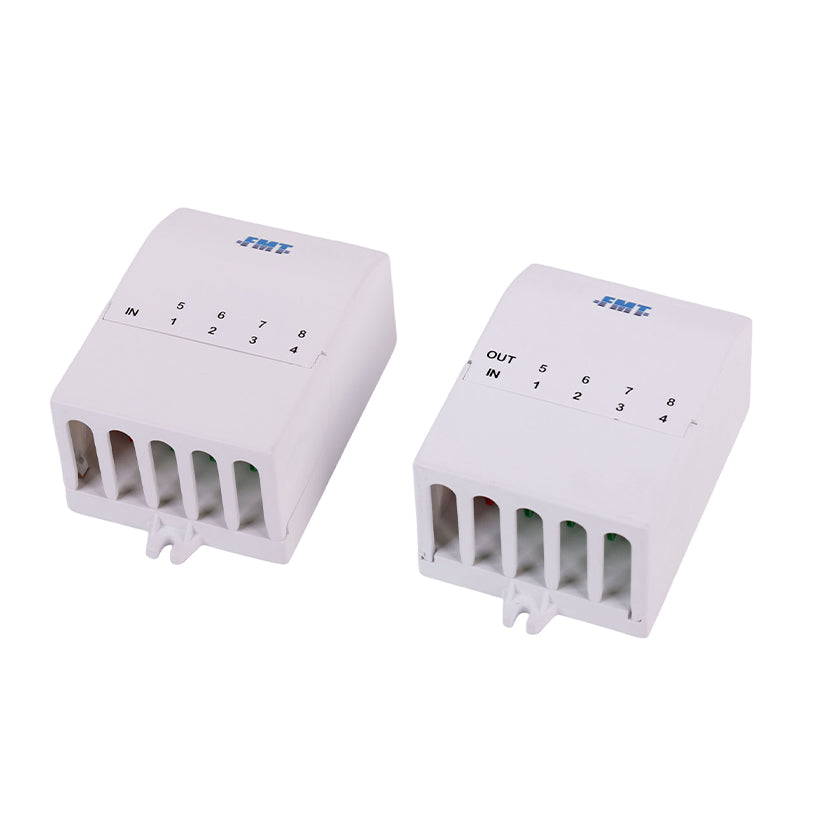

FFB-T499-10SC Mini Fiber Terminal Box

FFB-T499-10SC Mini Fiber Terminal Box

  • Designed for FTTH installations in buildings, providing a transition between distribution cable fibers and customer access cables through a connectorized system.
  • Ideal for connecting one box to another via pre-terminated SC/APC adapters, supporting field-assembled connectors and single-fiber optical drops.

Specification

Dimension (WxHxD): 100mm × 74mm × 51mm

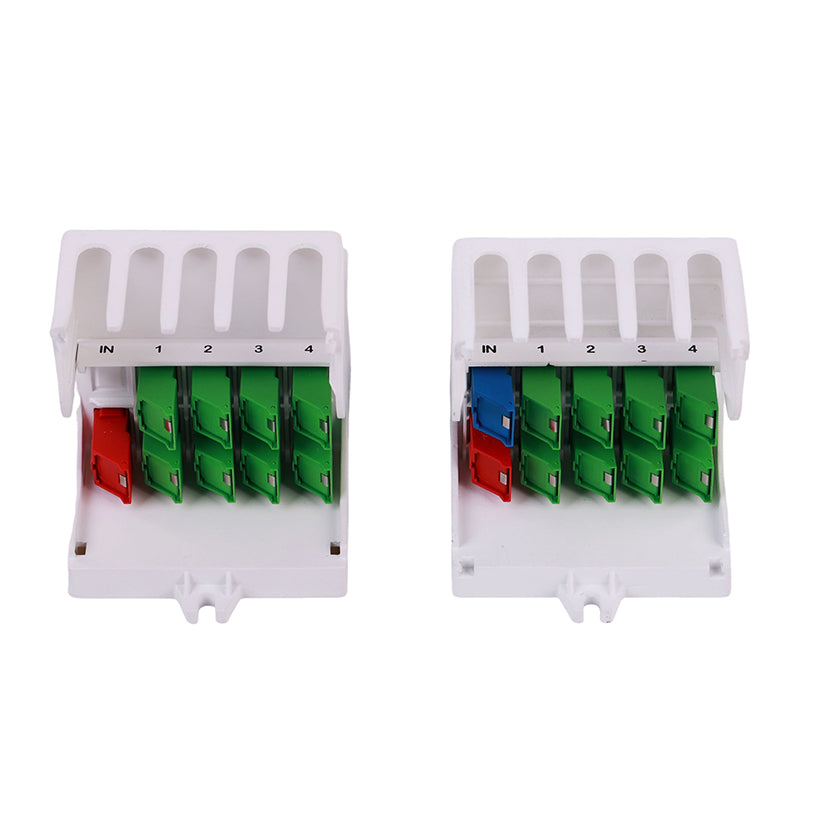

Inlet / Outlet: 1 × SC adapter (Red) / 8 × SC adapters (Green)

Branch (Blind) ports: 1 × SC adapter (Blue)

Splicing capacity: -

Patching capacity: 9 SC Adapter

Suitable splitter: 1×8 Micro PLC Splitter & 1×2 Micro FBT Splitter

Packing List

Carton Size: 22x40x29CM

Pieces per Carton: 50PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FFB-T499-10SC Sealed Mini Optical Terminal Box is a compact, pre-terminated solution for fiber optic connections in building applications. It allows seamless transitions between distribution and customer access cables without the need for splicing, utilizing SC/APC adapters for quick and reliable connections. The box supports up to 10 SC adapters, including a dedicated input and output port, with 8 drop ports for customer access.

    Engineered for durability, the terminal box features a dustproof cover for field connectors, which supports a 90-degree holding position for easy access during maintenance. It is pre-terminated and sealed in the factory, ensuring dustproof and reliable performance. The box is also compatible with 1:2, 1:4, and 1:8 micro PLC splitters, offering flexibility for various network configurations.

  • Feature & Benifits

    Port capacities of the FFB-T499-10SC Mini Fiber Terminal Box:
    • Splicing capacity: -
    • Patching capacity: 9 SC Adapter
    • Splitter capacity: 1×8 Micro PLC Splitter & 1×2 Micro FBT Splitter
    Key features for the FFB-T499-10SC Mini Fiber Terminal Box:
    • Compact Size: Space-efficient design with dimensions of 100mm × 74mm × 51mm.
    • Pre-Terminated Sealing: Operator area is factory-sealed after adapters and splitters are pre-installed, ensuring dustproof reliability.
    • Dustproof Connector Cover: Protects field connectors and supports a 90-degree holding position for easy handling.
    • Splitter Compatibility: Supports up to two 1:2, 1:4, or 1:8 micro PLC splitters for flexible network configurations.
    • Field Assembly Ready: Compatible with field-assembled connectors for optical drop fibers, reducing installation time.
    • High Capacity: Accommodates 10 SC adapters, with 1 input port, 1 output port, and 8 drop ports for customer connections.

Specifications

Part No. FFB-T499-10SC
Color Black / White / Gray / Light Gray
Dimension 100mm × 74mm × 51mm
Material of Housing ABS or PC/ABS
Protection class IP IP43
Main Cable Ports 1 × SC adapter (Red)
Branch Cable Ports 1 × SC adapter (Blue)
Drop Cable Ports 8 × SC adapters (Green)
Fusion Splice -
Number of Splice Tray -
Suitable Splitter 1×8 Micro PLC Splitter & 1×2 Micro FBT Splitter
Number of Adapters 9 SC Adapter
Mount Way Wall Mount
