Streamlining FTTH Deployments with the FB-T423 Floor Terminal Box
As fiber-to-the-home (FTTH) networks continue to expand globally, contractors and network operators face a critical challenge: finding terminal equipment that balances performance, durability, and ease of installation. The FB-T423 Fiber Optic Floor Terminal Box from Fibermint addresses these needs with a compact, versatile design engineered specifically for modern FTTH deployments.
Compact Design, Maximum Functionality

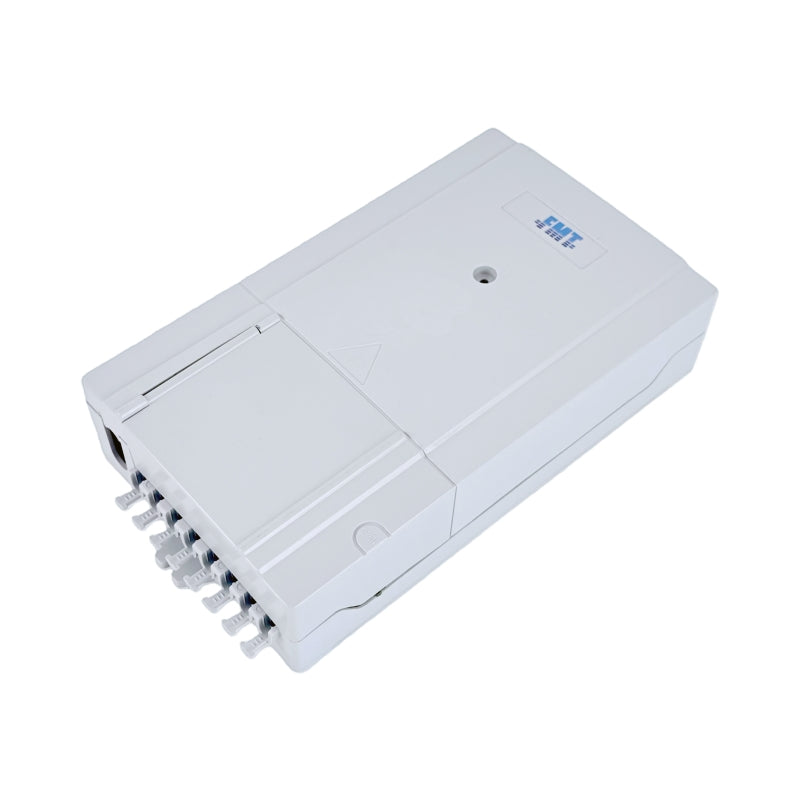

Measuring just 235 × 126 × 52mm, the FB-T423 proves that powerful fiber management doesn't require bulky equipment. Despite its compact footprint, this terminal box accommodates up to 24 fiber splices across two dedicated splice trays, making it ideal for medium-density residential and commercial applications.
The unit features a convenient flip-up distribution panel that provides technicians with unobstructed access during installation and maintenance operations. This thoughtful design element significantly reduces service time and minimizes the risk of fiber damage during routine procedures.
Built for Real-World Conditions
Network equipment rarely operates in ideal environments, which is why the FB-T423 is constructed from high-strength PC+ABS material. This robust composite delivers excellent resistance to moisture, dust, and UV degradation, ensuring reliable performance in both indoor installations and outdoor street cabinet applications.
With an IP43 protection rating, the enclosure provides adequate shielding against water spray and solid objects larger than 1mm. The fully enclosed structure maintains this protection throughout the product's service life, even in challenging environmental conditions.
Versatile Connectivity Options
Modern FTTH networks require flexibility in connectivity options, and the FB-T423 delivers on this front. The unit features two inline cable ports (Ø10mm) for main cable entry and exit, plus eight dedicated drop cable ports (Ø5mm) for connecting subscriber premises.
For fiber termination, the box accommodates up to eight SC adapters or eight duplex LC adapters, providing compatibility with the most common connector types used in access networks today. This versatility simplifies inventory management for contractors who serve diverse customer requirements.
Splitter Integration Capability
Recognizing that many FTTH deployments require signal distribution at the terminal point, Fibermint designed the FB-T423 to support optional 1×4 or 1×8 micro PLC splitters. This integrated splitter capacity eliminates the need for separate splitter housings, reducing both equipment costs and installation complexity.
Each splice tray can accommodate up to 12 fibers, and the carefully designed fiber routing paths maintain a bend radius greater than 30mm throughout the enclosure. This attention to fiber management ensures optimal signal integrity and long-term reliability.
Installation Made Simple
Time is money on construction sites, and the FB-T423 is designed with installer efficiency in mind. Pre-drilled wall mounting holes accommodate standard mounting hardware, while the quick-connect cable fixation system secures butterfly drop cables without requiring specialized tools.
The included wall-mounting kit contains everything needed for a complete installation, eliminating delays caused by missing hardware or incompatible components.
Conclusion
The FB-T423 Fiber Optic Floor Terminal Box represents Fibermint's commitment to delivering practical, reliable solutions for the growing FTTH market. Its combination of compact size, robust construction, and versatile connectivity options makes it an excellent choice for network operators seeking to optimize their access network infrastructure.
For more information about the FB-T423 and other fiber optic solutions, contact Fibermint's technical team or visit our product catalog.
