Part No.: FAT-10B-1

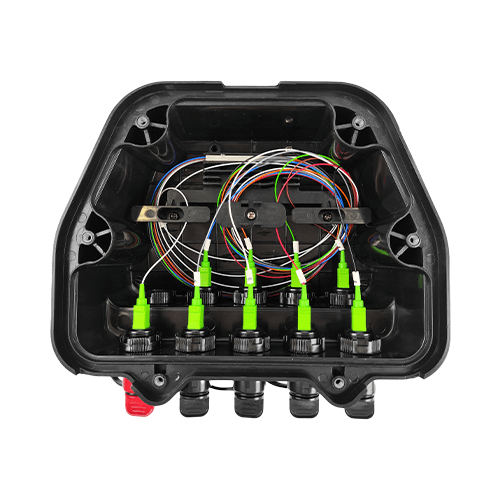

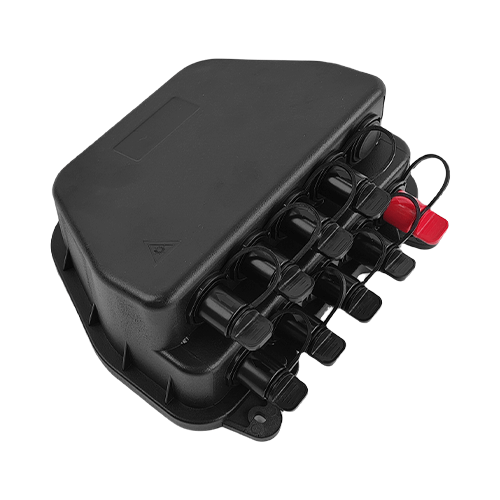

10 Ports Fiber Access Terminal Box with Huawei Hardened Adapters

10 Ports Fiber Access Terminal Box with Huawei Hardened Adapters

The FAT-10B-1 Fiber Access Terminal Enclosure is engineered to manage fiber optic connections at user access points within FTTX networks. It facilitates swift and dependable connections by combining cable splicing, fixation, and distribution in a single unit. Versatile for both outdoor and indoor use, the enclosure can be mounted on walls or poles, making it perfect for installations that demand IP68-rated protection.

Specification

Dimension (WxHxD): 210x210x85 mm

Inlet: 1 Hardened Adapter (Red)

Terminal Capacity: 9 Hardened Adapter (Black)

Splicing capacity: 2/4 F

Suitable splitter: Micro splitter 1:8, uneven splitter 1:9

Packing List

Carton Size: 56x46x60CM

PCS/CTN: 20 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FAT-10B-1 Fiber Access Terminal Enclosure, equipped with Huawei Hardened Adapters, provides an extensive fiber management system for the connection of distribution and drop cables. Its IP68-rated waterproof design guarantees resilience in severe conditions. The enclosure houses up to 10 ports, with 9 dedicated to hardened adapters, enabling swift connections without the need for extra field terminations. Made from superior PC/ABS materials, it accommodates micro and non-uniform PLC splitters and ensures control over the fiber bending radius to preserve signal integrity, thereby enhancing installation efficacy in fiber optic networks.

  • Feature & Benifits

    Port capacities of the 10 Ports Fiber Access Terminal Box with Huawei Hardened Adapters:
    • Terminal capacity: 9 Hardened Adapter (Black)
    • Splitter capacity: Micro splitter 1:8, uneven splitter 1:9
    Key features for the 10 Ports Fiber Access Terminal Box with Huawei Hardened Adapters:
    • High Protection Level: IP68-rated enclosure ensures waterproof and dustproof protection for outdoor use.
    • Integrated Cable Management: Includes splice tray and cable management system to streamline fiber organization.
    • Efficient Connectivity: Supports 9 hardened adapters and 1 hardened inlet, allowing fast connections.
    • Mounting Flexibility: Suitable for both wall and pole mounting for versatile installation options.
    • Material Durability: Constructed from robust PC/ABS material to withstand environmental stress.
    • Splitter Compatibility: Supports 1:8 micro splitter and 1:9 uneven splitter for flexible network configurations.
    • Fiber Protection: Maintains a bend radius of over 40mm to ensure signal quality.

General Specifications

Part No. FAT-10B-1
Color Black / Gray / Light Gray
Dimension 210x210x85 mm
Material of Housing PC/ABS
Protection class IP IP68
Cable Inlet 1 Hardened Adapter (Red)
Branches One Uneven
Terminal Capacity 9 Hardened Adapter (Black)
Fusion Splice 2/4 F
Number of Splice Tray -
Suitable Splitter Micro splitter 1:8, uneven splitter 1:9
Number of Adapters 10 SC
Mount Way Wall / Pole Mounted
