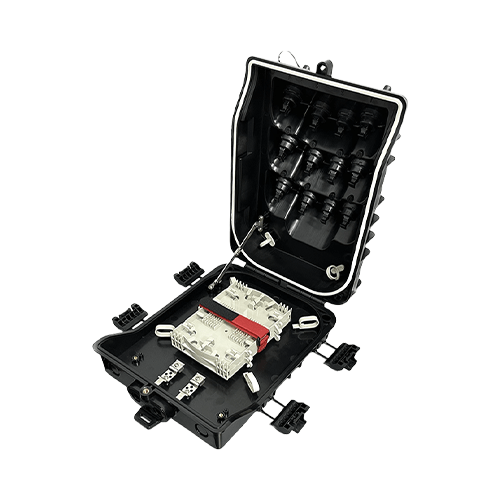

• 12 core fiber access terminal with hardened adapters - inside

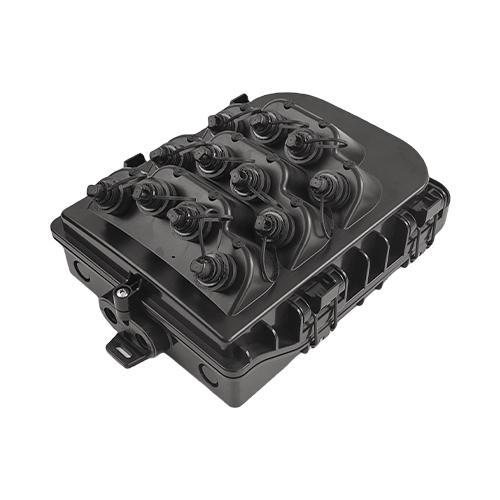

  • hardened adapters
1 3

Part No.: FAT-12Y

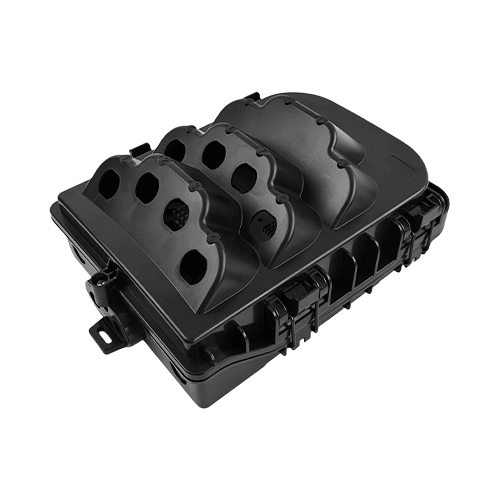

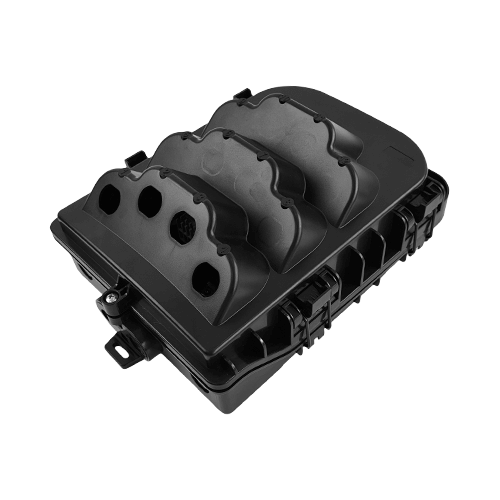

12 Core Fiber Access Terminal Box

12 Core Fiber Access Terminal Box

The FAT-12Y Optical Terminal Enclosure is designed for fiber optic cable management at user access points, facilitating the connection of distribution and drop cables. It integrates fiber cable fixation, storage, splicing, and distribution in a single enclosure, suitable for both indoor and outdoor wall and pole mounting applications. Rated IP65, it provides robust protection in various environmental conditions.

Specification

Dimension (WxHxD): 330x232x127 mm

Inlet / Outlet: 2 Mid-span ports / 12 (with hardened adapters on cover)

Branch (Blind) ports: 2 Blind ports

Splicing capacity: 24/48 Fusion splices

Patching capacity: 12 SC or LC Connectors

Suitable splitter: 1:8 or 1:16 PLC Splitter

Packing List

Carton Size: 51x35.5x53CM

Pieces per Carton: 6 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    This FAT-12Y utilizes pre-connected cables to streamline the deployment and maintenance of fiber-to-the-home (FTTH) systems, making it highly efficient and convenient. It is specifically designed to provide mechanical protection for fiber management systems, including splicing, patching, and passive component integration, making it ideal for the FTTX project. Additionally, it is rated to IP65, making it suitable for both indoor and outdoor applications.

  • Feature & Benifits

    Port capacities of the 12 Core Fiber Access Terminal Box:
    • Splicing capacity: 24/48 Fusion splices
    • Patching capacity: 12 SC or LC Connectors
    • Splitter capacity: 1:8 or 1:16 PLC Splitter
    Key features for the 12 Core Fiber Access Terminal Box:
    • Versatile Port Options: Available with 4, 8, or 12 hardened adapter ports, accommodating 4/8/12 SC or LC Duplex connectors.
    • Efficient Deployment: Enables fast deployment and cost savings by allowing pre-terminated cable assemblies to be plugged directly into matching fiber adapters.
    • Integrated Management: Combines fiber cable fixation, storage, splicing, and distribution in one unit.
    • Flexible Mounting: Suitable for both wall mounting and pole mounting.
    • Durable Construction: Made from PC/ABS material for enhanced strength and durability.
    • Reliable Protection: Rated IP65 for excellent protection against dust and water ingress.
    • Auxiliary Locking Device: Provides additional security and maintains IP65 protection.
    • Flexible Splice and Splitter Options: Supports micro PLC splitters (1x8, 1x16) and accommodates 2x 12/24 FO splices.
    • Convenient Design: The cover can be opened to a maximum angle of 90 degrees for easy access during installation and maintenance.

Specifications

Part No. FAT-12Y
Color Black / White / Gray / Light Gray
Dimension 330x232x127 mm
Material of Housing ABS or PC/ABS
Protection class IP IP65
Main Cable Ports 2 Mid-span ports
Branch Cable Ports 2 Blind ports
Drop Cable Ports 12 (with hardened adapters on cover)
Fusion Splice 24/48 Fusion splices
Number of Splice Tray 2 PCS (Max.)
Suitable Splitter 1:8 or 1:16 PLC Splitter
Number of Adapters 12 SC or LC Connectors
Mount Way aerial/wall/pole mounted
