In multi-dwelling-unit (MDU) FTTH projects, the floor distribution box is more than a passive enclosure. It is the point where building layout, network capacity, technician workflow, and future subscriber growth meet. A box selected only by its headline fiber count can create costly constraints later: congested trays, inaccessible adapters, insufficient cable-entry space, or an upgrade that requires reopening finished walls and risers.
For operators, system integrators, and EPC procurement teams, the right decision is a capacity plan that accounts for real installation conditions. This article provides a practical framework for specifying fiber floor distribution boxes that support a clean first deployment and a dependable expansion path.
Start with the building’s distribution architecture
Before choosing an enclosure, map the route from the building entry point to the subscriber. In a typical MDU design, feeder fiber reaches a main distribution point, riser cables serve individual floors or zones, and drop cables connect apartments through floor boxes, corridors, or compact termination points. The chosen topology determines whether the floor box is primarily a splice location, an adapter field, a splitter location, or a combination of these functions.
Document the number of units per floor, expected take-up at launch, planned take-up after three to five years, and any commercial areas that may need dedicated fibers. Also record where the riser enters, whether cables must be looped through the enclosure, and how much wall depth is actually available. A 144F floor box may offer ample nominal capacity, but the installation must still accommodate the selected cable diameter, slack storage, and technician hand clearance.
Allow for working capacity, not just maximum capacity
A useful rule is to reserve capacity beyond the initial activation forecast. The exact margin depends on local deployment economics and building turnover, but a practical specification separates active ports, spare adapter positions, spare splice positions, and spare cable entries. This prevents every future connection from becoming a rework exercise. It also gives installers room to dress fibers correctly instead of compressing them around a full tray.
Match fiber and port density to the service plan
Fiber count, adapter count, and splice-tray capacity must be considered together. A box described as 72F or 144F should be evaluated against the number of fibers that can be terminated and managed in the intended configuration. Confirm whether the stated count assumes single-fiber splices, ribbon splices, adapters only, or an optional tray arrangement. Request the tray configuration and port layout in the supplier’s drawing rather than relying on a catalog headline.

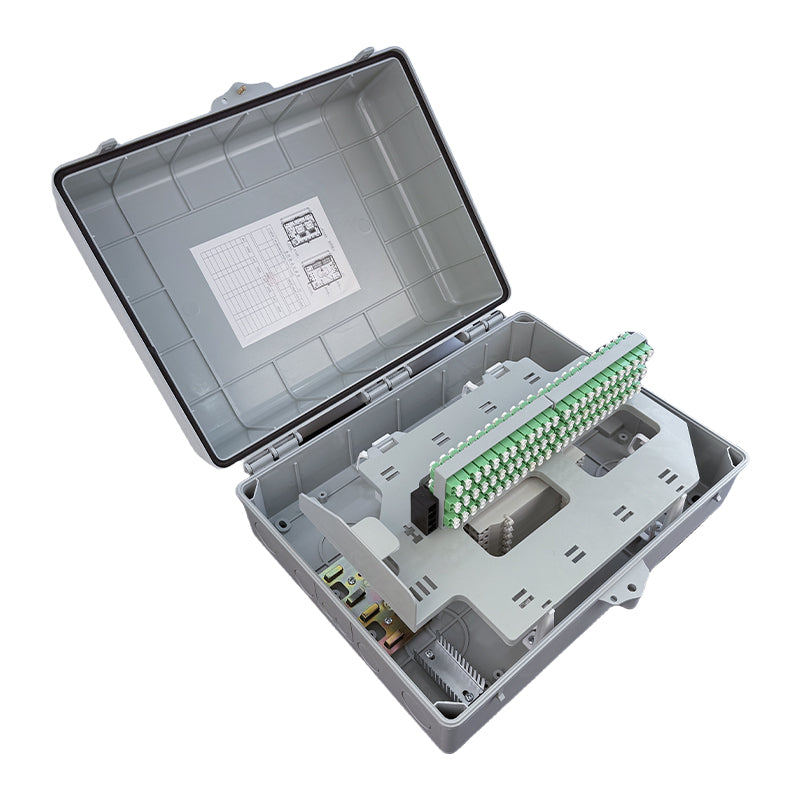

For a building with staged occupancy, modular trays and removable adapter plates are especially valuable. They let a contractor complete the initial distribution frame without buying and installing every connector component on day one. For dense apartment floors, a 144F-class floor distribution box can provide the space to segregate feeder, riser, and drop fibers, reducing the chance that later work disturbs live circuits.
Specify cable entry and sealing for the real route
Cable-entry design is often the hidden constraint in an MDU deployment. Count every feeder, riser, branch, and drop cable that may pass through the box, including transit cables that do not terminate there. Then check the supported cable diameters, entry orientation, sealing method, and strain-relief hardware. If the design includes a mid-span riser access, confirm that the enclosure supports it without exceeding bend-radius limits or compromising the jacket seal.
Indoor floor boxes normally face less severe weather than outdoor ODN closures, but reliable sealing still matters. Dust, corridor cleaning, condensation, and accidental impact can all affect long-term performance. Choose a design with protected entry points, positive cable fixation, and a cover that can be opened repeatedly without damaging seals or disrupting stored fibers.
Protect fiber routing and technician access
A well-designed enclosure guides fibers through clearly separated pathways. Look for rounded routing features, sufficient slack-storage radius, splice trays that open without pulling adjacent fibers, and a service layout that makes port identification visible from the front. These details reduce insertion loss risk during additions and shorten fault-isolation time.
Access is equally important. In residential buildings, the floor distribution box may be located in a riser cabinet, corridor, utility area, or locked telecom closet. Specify whether front-only access is required, what door-opening clearance is available, and which personnel need access. A lockable metal or high-impact enclosure can help protect the network, but it must still allow authorized technicians to complete routine moves, adds, and changes efficiently.
Build labeling and documentation into the purchase order
Clear labeling is one of the lowest-cost reliability measures in a fiber network. Each enclosure should have a durable external identifier, while trays, ports, adapters, and cable entries should follow the project’s naming convention. Labels should remain legible after normal cleaning and should correspond directly to as-built drawings and test records.
Include documentation deliverables in the procurement package: product drawings, port maps, installation instructions, material specifications, test requirements, and a packing list linked to model numbers. For OEM or ODM projects, request pre-applied labels, customized logos, color coding, or tray allocation where these reduce field labor. The goal is to hand the operations team an installation they can understand without reconstructing it from memory.
Use an acceptance checklist before handover
Acceptance should confirm more than whether the cover closes. Inspect cable fixation, entry sealing, grounding where applicable, bend radius, tray latching, port labels, dust caps, and unused-entry plugs. Verify that slack is secured without pinching and that live fibers remain protected when the next tray is accessed. Compare the installed layout against the approved port map and record optical test results for the completed links.
For larger rollouts, use a sample-based inspection at the first buildings to confirm the box configuration is practical for the installation crew. Early feedback can reveal a need for a different adapter plate, tray sequence, cable gland size, or mounting accessory before the same issue is repeated across dozens of floors.
Procure for lifecycle cost
The lowest enclosure price is rarely the lowest installed cost. Consider the time needed for routing, termination, labeling, inspection, and future additions. A floor distribution box with organized routing, expandable capacity, and stable cable management reduces both initial labor and the risk of service disruption. It also makes spares planning simpler when a standardized enclosure family is used across a project.
Fibermint supports FTTH and ODN projects with floor distribution boxes, fiber distribution enclosures, and configurable accessories suited to different building densities and deployment methods. Share your building layout, fiber plan, cable dimensions, and port requirement with our team to develop a specification that works in the field as well as on the bill of materials.
