An FTTH access point can be neatly installed and still be difficult to maintain. If the enclosure label, port numbers, splice schedule, and project database describe different connections, every service visit begins with investigation. For operators, contractors, and procurement teams, consistent identification is a practical way to make delivered hardware easier to operate throughout its service life.
This guide explains how to include labeling and as-built documentation in fiber distribution box and access terminal procurement. The objective is straightforward: a technician should be able to identify the correct asset, locate the intended connection, and record a change without reconstructing the original installation from memory.
Start with an asset identification rule
Define an enclosure identifier before artwork or production begins. A useful rule connects the physical asset to a unique record in the operator's inventory system. It may contain an area, distribution segment, and sequential number, but the exact format should follow the customer's existing system. Avoid a format that depends on information likely to change, such as the current contractor or subscriber name.
Specify where the identifier appears: on the enclosure exterior, inside the lid, on the packaging, and in the delivery data file where required. Decide which locations need identical information and which need separate identifiers. A carton number identifies a shipping package; it should not silently become the permanent network asset number.
Separate asset, cable, tray, and port identities
One label cannot describe every level of an optical distribution network. Treat the enclosure, incoming cables, splice trays, adapter positions, and outgoing drops as related records. A port number should identify a stable physical position. Its connection to a particular customer or cable can then change without requiring the hardware numbering scheme to be rewritten.
Create a simple connection schedule with fields for enclosure ID, cable ID, fiber identification, tray position, splice reference, adapter position, and destination. Use only fields relevant to the selected configuration. For an unpopulated enclosure, record the supplied hardware and reserved positions without inventing optical connections that will be completed later in the field.
Define the viewing direction
Numbering drawings should state the viewing direction, lid orientation, and starting point. A photograph marked with port numbers is often easier to review than a text instruction alone. Check that an installer opening a wall-mounted box sees the same sequence shown in the approved drawing. Resolve mirrored layouts before labels are printed or assemblies are wired.
Specify labels for the actual installation environment
Describe the conditions a label will face, including indoor or outdoor placement, expected handling, sunlight exposure, and the cleaning products permitted by the installation procedure. Ask the supplier to propose a label material, printing method, and attachment approach for those conditions. Agree on evidence or sample checks instead of assuming that any adhesive label will remain readable for the project's intended service period.
Label placement also matters. Keep markings clear of seals, hinges, fastening surfaces, and areas needed for cable routing. An internal label should remain readable after the planned fibers and components are installed. Review the layout with a representative populated sample, because an empty enclosure can hide visibility problems that appear during assembly.
Use machine-readable codes with a human-readable fallback
A QR code or barcode can link a field technician to the correct asset record, but it should supplement a readable identifier. Confirm the scanning application, code format, and permitted destination before defining the artwork. A code that works on an office screen may be inconvenient in a crowded enclosure or with the devices used by field crews.
Keep customer information and access credentials out of printed codes. Prefer a stable asset reference that the authorized maintenance system can resolve. Plan for poor connectivity: the technician should still be able to read the enclosure ID and physical port number, then capture a change for later synchronization under the operator's approved process.
Make the delivery data match the supplied configuration
The handover package should describe what was actually delivered. Request the approved configuration reference, labeling drawing, asset list, and relevant assembly or inspection records. Distinguish enclosure capacity from installed components and from activated connections. A box with spare adapter positions should not be documented as though every position contains an adapter or serves a subscriber.

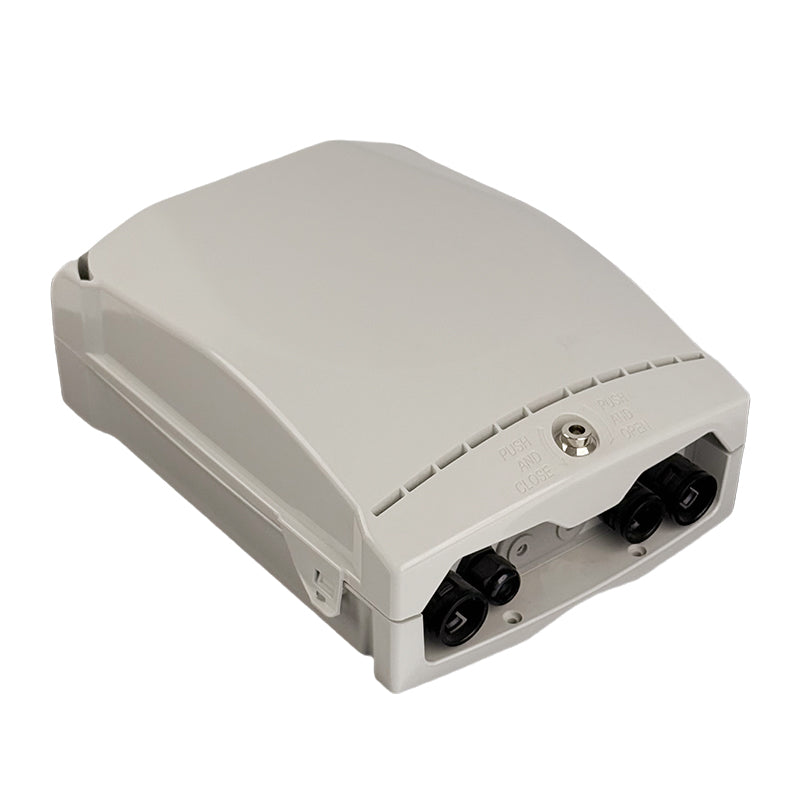

For example, Fibermint's PTE-48 fiber distribution box is a product to discuss when developing a project-specific identification layout. Confirm the ordered population, numbering arrangement, and documentation scope with the quotation. Treat any proposed label customization or data deliverable as a requirement to agree, rather than an automatic inclusion with the standard enclosure.
Choose a usable file structure
Agree on column names, identifier formats, and how unused positions are represented in the delivery spreadsheet or database import. Preserve leading zeros in identifiers. Define whether a blank field means unknown, not applicable, or not yet connected. These small decisions prevent the receiving team from interpreting the same file in several different ways.
Check a complete sample before batch release
Review one representative enclosure together with its carton label and digital record. Follow a selected connection from the drawing to its physical position and back to the delivery file. Scan the code using the intended field device. Confirm that printed identifiers are readable and that no two sample records accidentally share the same permanent asset ID.
Include a change scenario in this review. Ask how the records would be updated if a drop moved to another port or a component were replaced. The purpose is to test whether the identification scheme remains understandable after installation. Capture corrections in the controlled drawing and data template before authorizing the production batch.
Assign ownership of field changes
Factory documentation provides a starting point; the as-built record must reflect the completed network. Specify who records field splices, who verifies changed connections, and who approves the final handover. Where photographs are required, define the useful views and associate each image with the enclosure ID. Avoid collecting unstructured images that nobody can reliably match to an asset.
When requesting an OEM or ODM quotation from Fibermint, include a sample identification rule, annotated numbering drawing, expected label environment, and delivery data template. These inputs turn documentation into a clear procurement deliverable. They also give engineering, assembly, and installation teams a shared reference for building access points that remain understandable after the original project team has moved on.
