Introduction

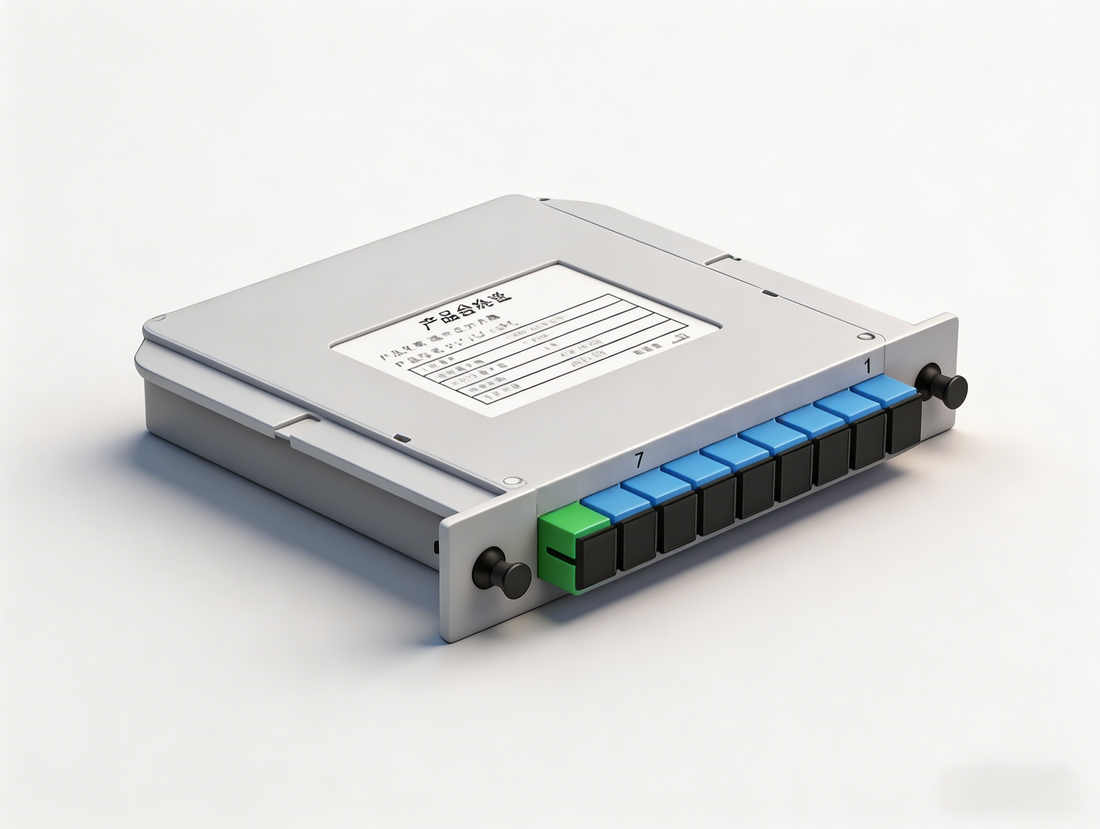

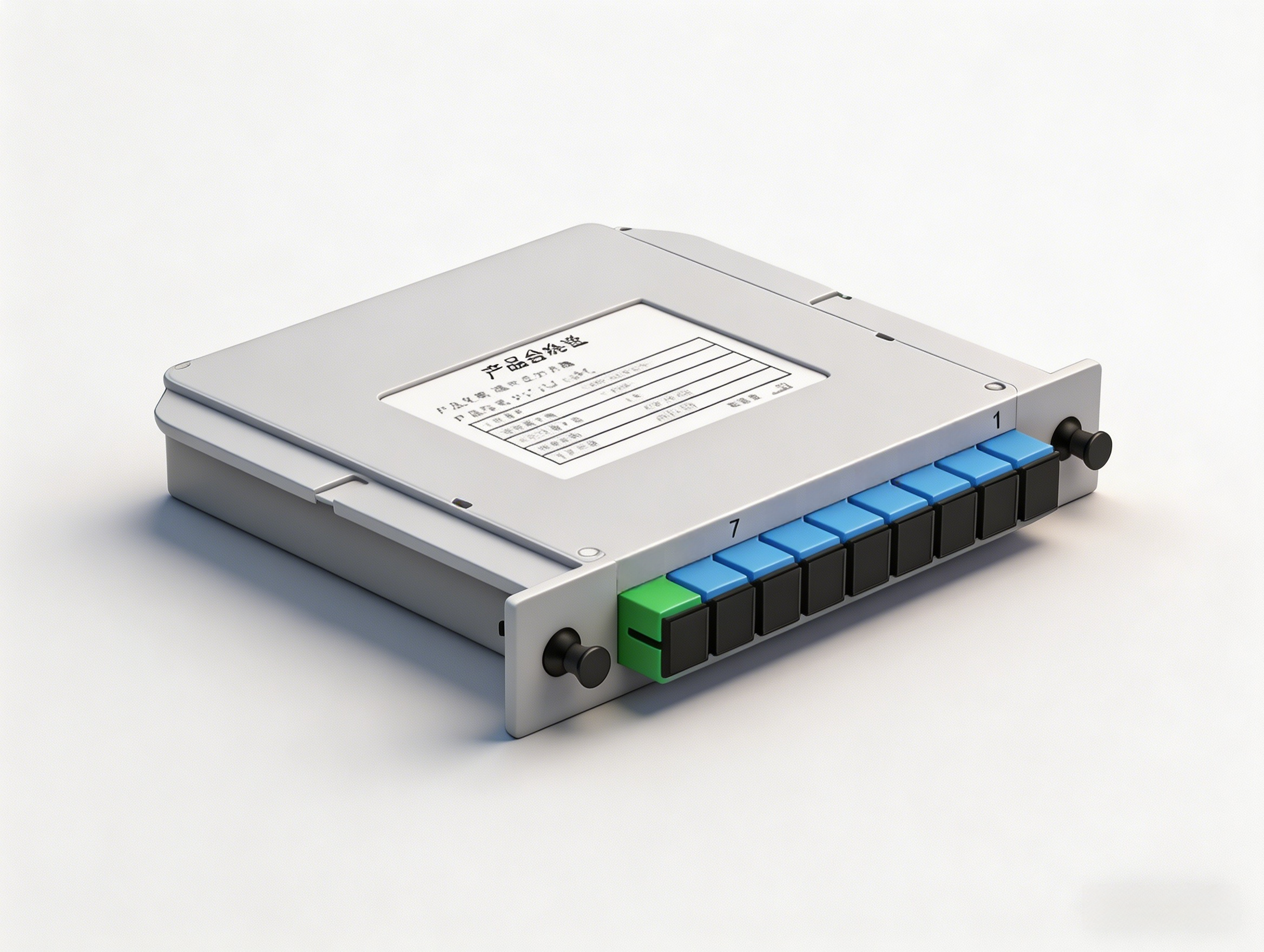

Planar Lightwave Circuit (PLC) splitters are essential passive devices in modern fiber-to-the-home (FTTH) networks. They enable efficient distribution of optical signals from a single optical line terminal (OLT) to multiple subscribers, making high-speed broadband services economically viable. This article explores PLC splitter technology, focusing on working principles, manufacturing processes, key performance indicators, and practical selection guidelines for FTTH deployments.
Working Principles
PLC splitters utilize integrated waveguide technology fabricated on silica substrates. The core mechanism involves cascading Y-branch waveguides that divide incoming optical signals into multiple output paths through precise optical interference.
Key Characteristics:
- Wavelength Independence: Operates across 1260-1650 nm spectrum, supporting multiple PON standards
- Passive Operation: Requires no electrical power or active components
- Uniform Splitting: Even power distribution to all output ports regardless of split ratio
- Compact Design: Semiconductor-like integration enables small form factors
The waveguide arrays are designed to maintain consistent splitting ratios (1×2, 1×4, 1×8, 1×16, 1×32, 1×64) while minimizing optical losses.
Manufacturing Processes
Photolithography
The dominant commercial method uses semiconductor fabrication techniques:
- Core Layer Deposition: PECVD creates doped silica films on quartz substrates
- Pattern Definition: Photolithography transfers waveguide designs
- Reactive Ion Etching: ICP etching forms ridge waveguide structures
- Overcladding: Additional silica layers encapsulate the core
- Annealing: High-temperature treatment reduces optical losses
Ion Exchange
An alternative cost-effective approach:
- Process: Glass substrates immersed in molten salt baths at 400-500°C
- Mechanism: Dopant ions (Ag⁺, K⁺) exchange with alkali ions (Na⁺) in glass
- Result: Localized refractive index increases form waveguides
- Advantage: Lower equipment costs, suitable for standard splitters
Key Performance Indicators
Insertion Loss (IL)
Power attenuation from input to output ports:
| Split Ratio | Typical IL | Maximum IL |
|---|---|---|
| 1×2 | 3.5-4.0 dB | 4.1 dB |
| 1×4 | 7.0-7.2 dB | 7.4 dB |
| 1×8 | 10.0-10.5 dB | 10.7 dB |
| 1×16 | 13.2-13.5 dB | 13.7 dB |
| 1×32 | 16.5-16.9 dB | 17.0 dB |
| 1×64 | 19.8-20.5 dB | 21.0 dB |
Uniformity
Maximum power variation among outputs: ≤0.8 dB for premium splitters
Return Loss (RL)
Reflected power suppression: ≥55 dB (UPC), ≥60 dB (APC)
Polarization Dependent Loss (PDL)
Polarization sensitivity: ≤0.3 dB for advanced designs
Temperature Range
Operating: -40°C to +85°C, ensuring reliability in harsh environments
Application Selection Guidelines
FTTH Network Architectures
Centralized Splitting:
- Deployment: Large splitter (1×32/1×64) at CO/OLT location
- Best For: Dense urban areas with abundant duct infrastructure
- Advantages: Simplified management, easier monitoring
- Limitations: High fiber consumption
Distributed/Cascaded Splitting:
- Deployment: Multiple smaller splitters closer to subscribers
- Best For: Suburban/rural areas with constrained budgets
- Advantages: Reduced feeder fiber count, scalable expansion
- Challenges: Complex fault isolation
Split Ratio Selection
| Scenario | Recommended Ratio | Key Considerations |
|---|---|---|
| Urban High-Density | 1×32 or 1×64 | Strict loss budget control needed |
| Standard Residential | 1×16 | Balanced performance-cost ratio |
| Low-Density/Enterprise | 1×8 or 1×4 | Supports longer distances |
| MDU Buildings | 1×8 with cascading | Simplifies vertical cabling |
PLC vs. FBT Comparison
| Aspect | PLC Splitter | FBT Splitter |
|---|---|---|
| Max Ratio | Up to 1×128 | Typically ≤1×8 |
| Uniformity | Excellent (±0.5 dB) | Moderate (±1.0-2.0 dB) |
| Wavelength | 1260-1650 nm | Specific bands only |
| Temperature | -40°C to +85°C | Limited at extremes |
| Best For | Modern FTTH, data centers | Legacy systems, test benches |
Future Trends
- Silicon Photonics: Higher integration with electronics
- Ultra-Low Loss: Propagation losses <0.1 dB/cm
- Polarization-Maintaining: For quantum communications
- Higher Split Ratios: 1×128 becoming commercially viable
Conclusion
PLC splitter technology is fundamental to scalable, reliable FTTH networks. Key considerations for successful deployment include:
- Technology Choice: PLC preferred for ratios ≥1×8, especially in demanding environments
- Performance Validation: Verify insertion loss, uniformity, return loss, and temperature stability
- Architecture Optimization: Balance centralized vs. distributed splitting based on infrastructure costs
- Power Budgeting: Include ≥2 dB safety margins in optical calculations
- Standards Compliance: Ensure Telcordia GR-1209/GR-1221 certification
For network planners, selecting the appropriate PLC splitter configuration ensures optimal performance while preparing for future bandwidth demands and technology evolution.
