Part No.: FDB-T224B-24

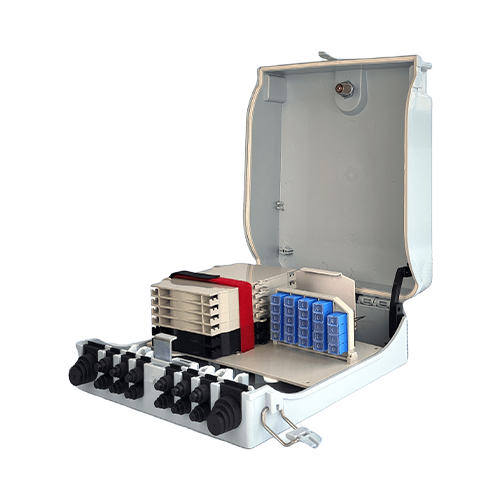

2-In 12-Out 24-Core Fiber Distribution Box

2-In 12-Out 24-Core Fiber Distribution Box

Fibermint FDB-T224B-24 is one of our top sales. Compare it to GP-T224B-144F, not only it supports 144 core, but also an adapter panel to allow customers to assemble 24 SCAPC adapters. Moreover, it has 3 locks to secure the box: one Standard Key-Lock on the cover and 2 hasp lock on both sides, which gives the ability to protect fibers from various environments

Specification

Dimension (WxHxD): 245x296x95mm

Inlet / Outlet: 2 / 12

Branch (Blind) ports: -

Splicing capacity: 144FO (Max)

Patching capacity: 24 (Max)

Suitable splitter: 1:8 or 1:16 PLC Splitter per Tray

Packing List

Carton Size: 53x35x41CM

Pieces per Carton: 6 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    Fibermint FDB-T224B-24 is one of our top sales. Compare it to GP-T224B-144F, not only it supports 144 core, but also an adapter panel to allow customers to assemble 24 SCAPC adapters. Moreover, it has 3 locks to secure the box: one Standard Key-Lock on the cover and 2 hasp lock on both sides, which gives the ability to protect fibers from various environments

  • Feature & Benifits

    Port capacities of the 2-In 12-Out 24-Core Fiber Distribution Box:
    • Splicing capacity: 144FO (Max)
    • Patching capacity: 24 (Max)
    • Splitter capacity: 1:8 or 1:16 PLC Splitter per Tray
    Key features for the 2-In 12-Out 24-Core Fiber Distribution Box:
    • Flame-retardant, impact-resistant engineering plastic, and IP54
    • Tested by SGS and another third party. Ensuring a weather-resistant seal that protects against harsh environmental conditions
    • Lock system Can be locked by a key lock or side hasps.
    • Cover support The box cover can be positioned at 90 or 180 degrees.
    • Cable fixing system Branch cable can be also fixed individually. Drop cable fixing support rubber for custom options.
    • Splitter tray has the same size as a splice tray and suitable for micro PLC splitter 1x8, 1x16.
    • SC adaptor panel Suitable for 24 SC no flange adaptors

Specifications

Part No. FDB-T224B-24
Color Black / White / Gray / Light Gray
Dimension 245x296x95mm
Material of Housing ABS or PC/ABS
Protection class IP IP54
Main Cable Ports 2
Branch Cable Ports -
Drop Cable Ports 12
Fusion Splice 144FO (Max)
Number of Splice Tray 6 (Max)
Suitable Splitter 1:8 or 1:16 PLC Splitter per Tray
Number of Adapters 24 (Max)
Mount Way Wall / Pole Mounted
