Part No.: GJS-HF96-8B

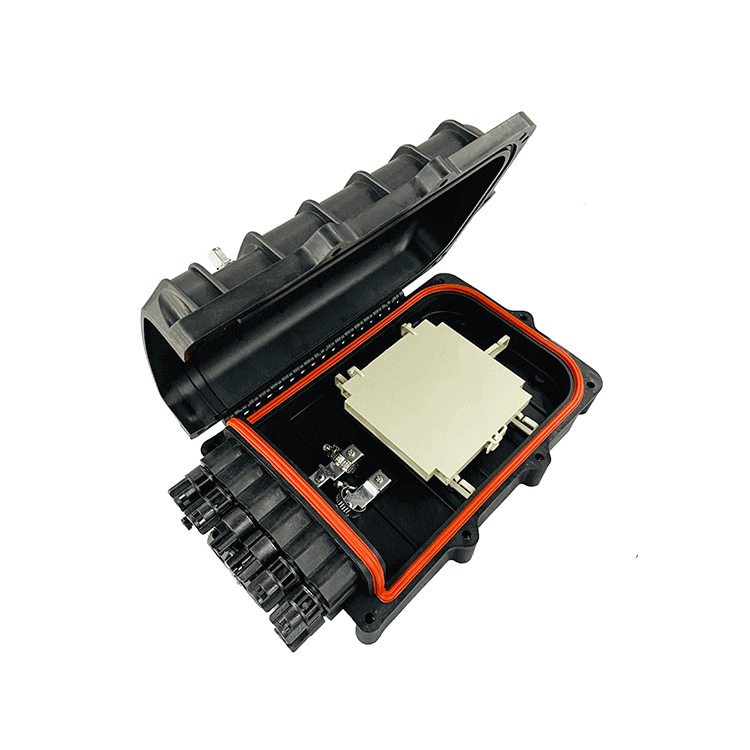

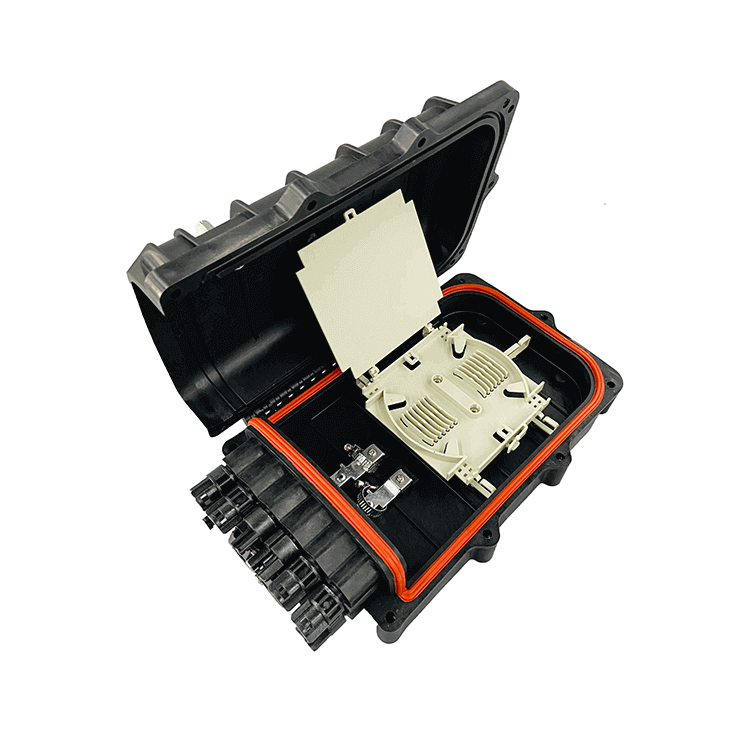

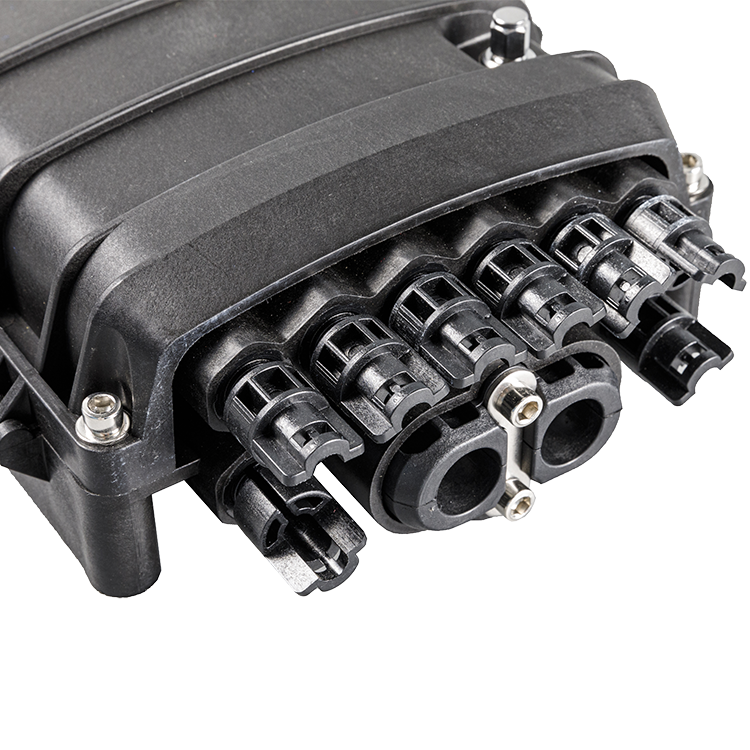

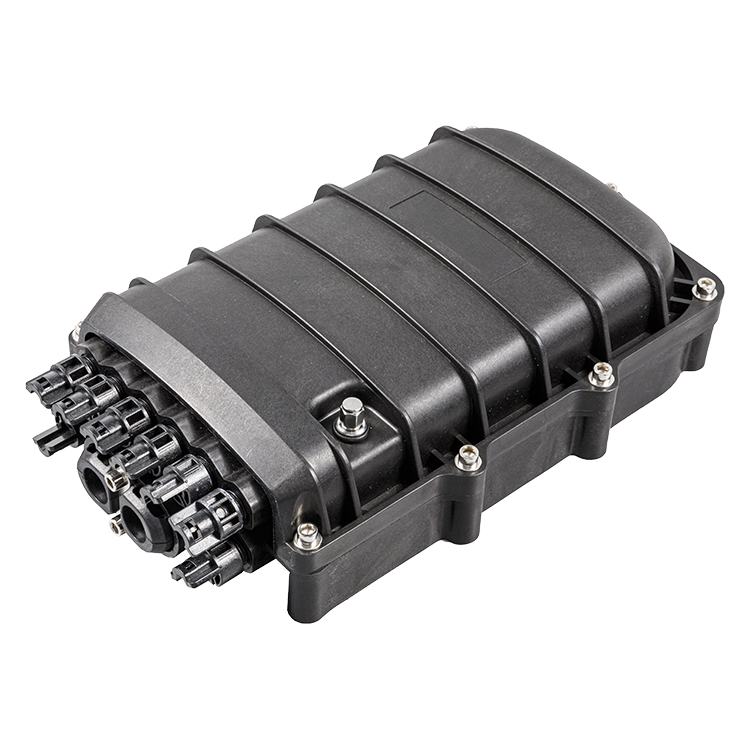

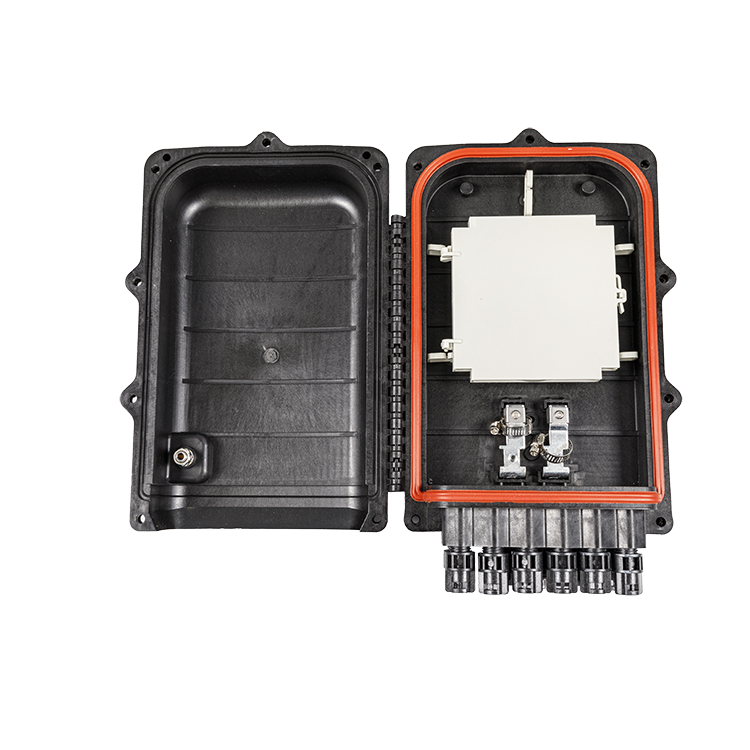

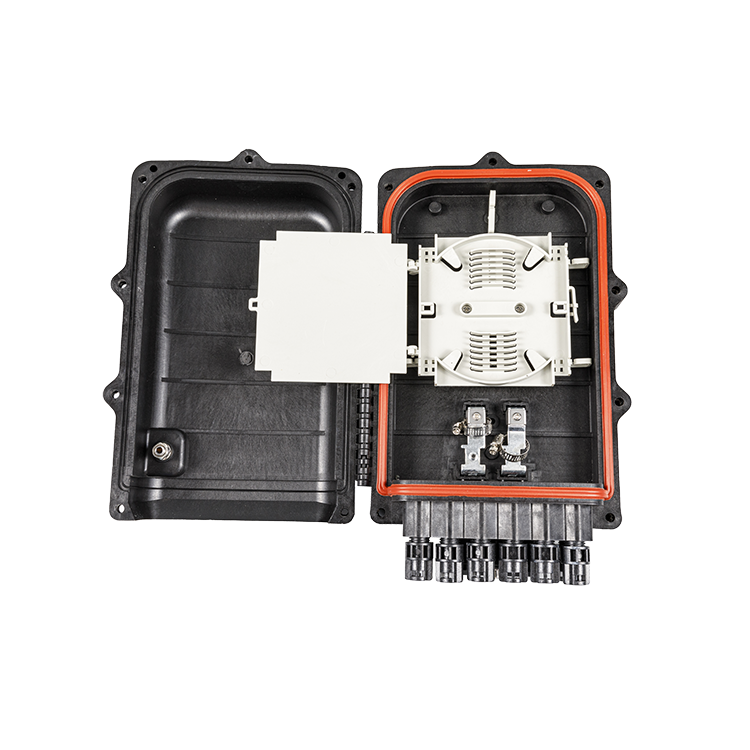

96 Cores Fiber Optic Splice Closure | GJS-HF96-8B

96 Cores Fiber Optic Splice Closure | GJS-HF96-8B

Specification

Dimension (WxHxD): 318×195×82 mm

Inlet / Outlet: 2 Mid-span Port / 8 Drop ports

Branch (Blind) ports: N/A

Splicing capacity: 96 Fusion splices (Max.)

Patching capacity: N/A

Suitable splitter: N/A

Collapsible row

Carton Size: 45*36*53CM

PCS/CTN: 10 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-HF96-8B is a Butt type fiber optic splice closure designed for the FTTx network. It can house up to 96 fusion splices and distribute up to 8 drop cables. The closure is suitable for deployment in direct burial applications.

  • Feature & Benifits

    Port capacities of the 96 Cores Fiber Optic Splice Closure | GJS-HF96-8B:
    • Splicing capacity: 96 Fusion splices (Max.)
    • Patching capacity: N/A
    • Splitter capacity: N/A
    Key features for the 96 Cores Fiber Optic Splice Closure | GJS-HF96-8B:
    • Housing is made of high-quality engineering plastic(MPP), which has good mechanical performance, hydrolysis resistance, and chemical resistance.
    • Support Mold logo on the cover.
    • Perfect fiber management - Clear fiber function division and fiber routing.

General Specifications

Part No. GJS-HF96-8B
Color Black (Customizable)
Dimension 318×195×82 mm
Material of Housing MPP
Protection class IP IP68
Main Cable Ports 2 Mid-span Port
Branch Cable Port N/A
Drop Cable Ports 8 Drop ports
Fusion Splice 96 Fusion splices (Max.)
Number of Splice Tray 4 PCS (Max.)
Suitable Splitter N/A
Number of Adapters N/A
Mount Way Direct Burial
