Part No.:

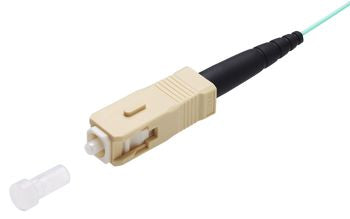

SC/APC Pigtail
SC/APC Pigtail
Inquiry Now
Thank you for your interest in our products/services. For any sales inquiries or to request more information, please reach out to us using the contact details provided below
-
Applications
- ODF, Splice Closure and cross cabinets
- FTTx.
- Data centers.
- Internet of things.
- Connection in fusion splice trays.
-
Features
- Low insertion loss and high return loss.
- Guaranteed repeatability and high reliability.
- FC (PC/APC), SC (PC/APC), LC (PC/APC), ST etc. are available.
- Single-mode, Multi-Mode, G652, G657, Simplex, Duplex, etc.
Specification
| Parameter | Single-Mode | Multi-Mode | |
| Insertion Loss (dB) | ≤ 0.3 | ||
| Return Loss (dB) | UPC ≥ | 50 | 55 |
| APC ≥ | - | - | |
| Repeatability (dB) | 0.1 | ||
| Push – Pull Times(dB) | ＞ 1000 | ||
| Operating Temp | -40℃ ~ 85℃ | ||
| Cable Type | G652, G657, SM, MM, etc. | ||
| Cable Diameter | 0.9mm, 1.8mm, 2.0mm, 3.0mm, etc. (Customizable) | ||
-
Regulatory Compliance/Certifications
