Part No.: FDB-12C

12-Core Fiber Distribution Box

12-Core Fiber Distribution Box

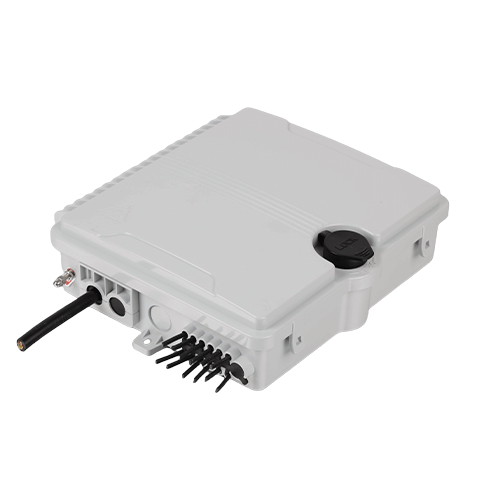

The FDB-12C Fiber Optic Distribution Box is ideal for FTTX projects, providing robust mechanical protection for fiber management systems. It supports splicing, patching, and passive component integration, making it suitable for both indoor and outdoor installations. With an IP55 rating, it ensures reliable performance in various environments. This versatile box can be wall-mounted or pole-mounted, offering flexibility for different installation scenarios.

Specification

Dimension (WxHxD): 225 x 200 x 65 mm

Inlet / Outlet: 2 Un-cut cable ports / 12

Branch (Blind) ports: 1 Blind port

Splicing capacity: 12/24 Fusion splices

Patching capacity: 8 SC Connectors

Suitable splitter: 1:4 or 1:8 Micro PLC Splitter

Packing List

Carton Size: 50.0*48.0*49.0CM

Pieces per Carton: 20 PCS/CTN

Download File
Request for Quotation View full details

  • Description

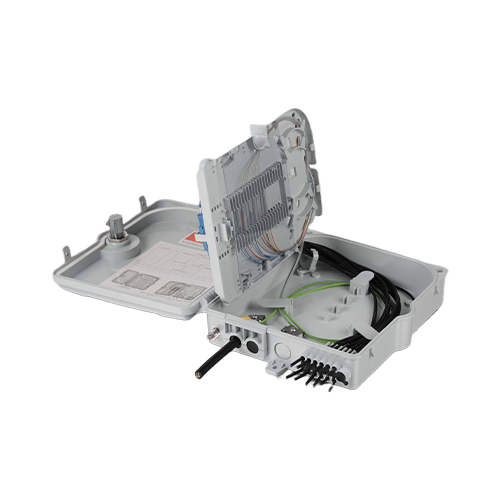

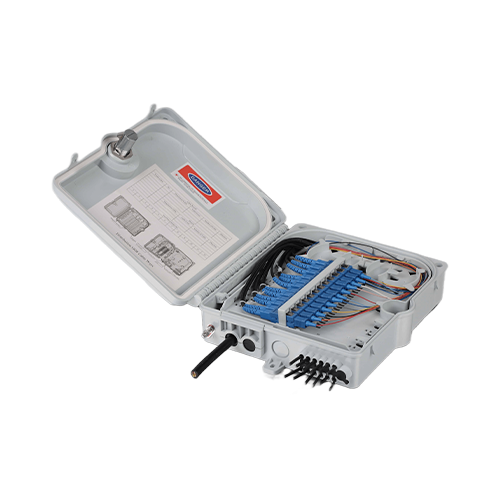

    The FDC-12C is a Fiber distribution box used in FTTH networks to distribute and connect cables. It can hold up to 2 PLC splitters, 8/16 fusion splices, and 12 SC adapters. The closure has 2 main cable ports and 12 drop cable ports. It has separate compartments for splicing and patching, making it easy to connect drop cables without disturbing the spliced fibers. This closure can be used for wall or pole mount applications.

  • Feature & Benifits

    Port capacities of the 12-Core Fiber Distribution Box:
    • Splicing capacity: 12/24 Fusion splices
    • Patching capacity: 8 SC Connectors
    • Splitter capacity: 1:4 or 1:8 Micro PLC Splitter
    Key features for the 12-Core Fiber Distribution Box:
    • Easy Installation: Designed for quick and straightforward setup.
    • Durable Construction: Made from high-quality engineering plastic for long-lasting performance.
    • Secure Access: Equipped with a hinge structure and key lock system for enhanced security.
    • Versatile Usage: Can be used for both splicing and patching.
    • Integrated Tray: Combines splicing, patching, and splitting functions in a single tray.
    • High Capacity: Supports up to 12 SC adapters and 20 splice slots.
    • IP55 Rated: Suitable for both indoor and outdoor applications, providing protection against dust and water.
    • Flexible Mounting Options: Can be wall-mounted or pole-mounted.
    • Micro Splitter Compatible: Accommodates micro splitters for efficient fiber distribution.

    4o

Specifications

Part No. FDB-12C
Color Black / White / Gray / Light Gray
Dimension 225 x 200 x 65 mm
Material of Housing ABS or PC/ABS
Protection class IP IP55
Main Cable Ports 2 Un-cut cable ports
Branch Cable Ports 1 Blind port
Drop Cable Ports 12
Fusion Splice 12/24 Fusion splices
Number of Splice Tray 1 PCS (Max.)
Suitable Splitter 1:4 or 1:8 Micro PLC Splitter
Number of Adapters 8 SC Connectors
Mount Way Wall-mounted or Pole-mounted
