Part No.: FDB-12E

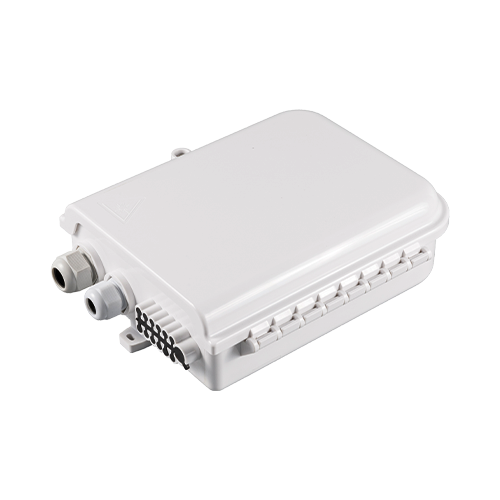

12 Core Optical Fiber Distribution Box

12 Core Optical Fiber Distribution Box

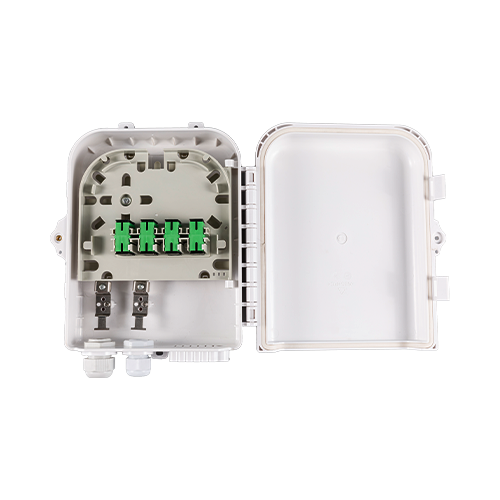

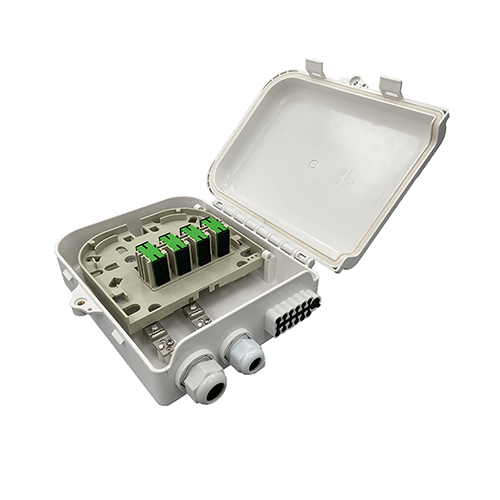

The FDB-12E Optical Fiber Distribution Box is designed for FTTH networks, facilitating the distribution and connection of cables. It accommodates up to 2 PLC splitters, 8/16 fusion splices, and 12 SC adapters. With 2 main cable ports and 12 drop cable ports, it features separate compartments for splicing and patching, allowing easy connection of drop cables without disturbing the spliced fibers. Suitable for wall or pole mount applications.

Specification

Dimension (WxHxD): 225*200*65 mm

Inlet / Outlet: 1 (PG16) / 12

Branch (Blind) ports: 1 Blind ports (PG13.5)

Splicing capacity: 8/16 Fusion splices

Patching capacity: 12 SC or LC Connectors

Suitable splitter: 1:8 or 1:16 PLC Splitter

Packing List

Carton Size: 55.0*42.0*45.0CM

Pieces per Carton: 10 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FDC-12E is an optical distribution box used in FTTH networks to distribute and connect cables. It can hold up to 2 PLC splitters, 8/16 fusion splices, and 12 SC adapters. The closure has 2 main cable ports and 12 drop cable ports. It has separate compartments for splicing and patching, making it easy to connect drop cables without disturbing the spliced fibers. This closure can be used for wall or pole mount applications.

  • Feature & Benifits

    Port capacities of the 12 Core Optical Fiber Distribution Box:
    • Splicing capacity: 8/16 Fusion splices
    • Patching capacity: 12 SC or LC Connectors
    • Splitter capacity: 1:8 or 1:16 PLC Splitter
    Key features for the 12 Core Optical Fiber Distribution Box:
    • Splicing Capacity: Supports 8/16 fusion splices.
    • Patching Capacity: Accommodates 12 SC or LC connectors.
    • Splitter Capacity: Fits 1:8 or 1:16 PLC splitters.
    • Easy Installation: Simplifies the process of installation and connection.
    • Durable Construction: Made from high-quality engineering plastic.

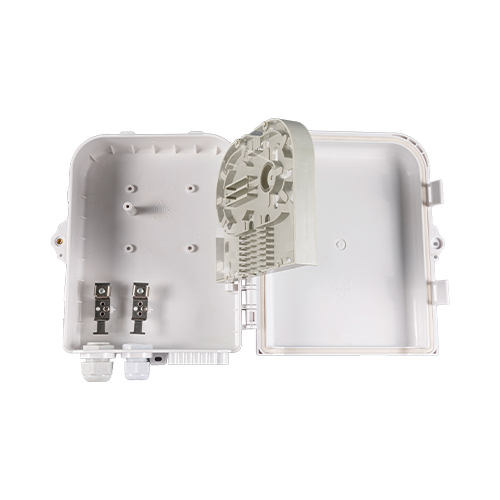

    • Integrated Tray: Combines splice tray, distribution tray, and splitter housing into one tray.
    • Efficient Fiber Management: Ensures clear fiber function division and routing.
    • Flexible Mounting Options: Suitable for both wall-mount and pole-mount installations.
    • IP55 Protection: Provides robust protection in various environments.

Specifications

Part No. FDB-12E
Color Black / White / Gray / Light Gray
Dimension 225*200*65 mm
Material of Housing ABS or PC/ABS
Protection class IP IP55
Main Cable Ports 1 (PG16)
Branch Cable Ports 1 Blind ports (PG13.5)
Drop Cable Ports 12
Fusion Splice 8/16 Fusion splices
Number of Splice Tray 1 PCS (Max.)
Suitable Splitter 1:8 or 1:16 PLC Splitter
Number of Adapters 12 SC or LC Connectors
Mount Way Wall-mounted or Pole-mounted
