Part No.: FDB-T224B-144

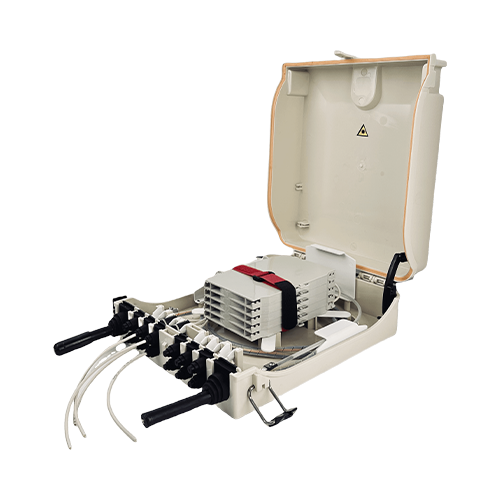

2-In 12-Out 144FO Fiber Distribution Box

2-In 12-Out 144FO Fiber Distribution Box

The FDB-T224B-144 FTTx Terminal Box is designed for FTTx projects that require secure fiber management, offering mechanical protection for splicing, patching, and passive component integration. With an IP54 rating, this terminal box is suitable for both indoor and outdoor installations, providing reliable performance across various environmental conditions.

Specification

Dimension (WxHxD): 245x296x95mm

Inlet / Outlet: 2 / 12

Branch (Blind) ports: -

Splicing capacity: 144FO (Max)

Patching capacity: -

Suitable splitter: 1:8 or 1:16 PLC Splitter per Tray

Packing List

Carton Size: 53x35x41CM

Pieces per Carton: 6 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FDB-T224B-144 Terminal Box provides a comprehensive solution for managing fiber optic connections in FTTx networks. It supports up to 144 fiber splices across 6 trays, each capable of holding 12 or 24 splices. Constructed from durable engineering plastic, the box is designed to withstand challenging environments, with an operational temperature range of -40°C to +70°C and a life expectancy of 20 years. The box is equipped with a hasp lock and an optional key lock for enhanced security, and it offers flexible mounting options for wall or pole installations.

  • Feature & Benifits

    Port capacities of the 2-In 12-Out 144FO Fiber Distribution Box:
    • Splicing capacity: 144FO (Max)
    • Patching capacity: -
    • Splitter capacity: 1:8 or 1:16 PLC Splitter per Tray
    Key features for the 2-In 12-Out 144FO Fiber Distribution Box:
    • IP54 Protection: Provides reliable dust and water protection, suitable for both indoor and outdoor use.
    • High Splice Capacity: Accommodates up to 144 fibers with 6 splice trays, supporting 12 or 24 splices per tray.
    • Durable Construction: Made from flame-resistant V0-rated engineering plastic, ensuring a long lifespan even in harsh environments.
    • Versatile Installation: Compatible with both wall-mounted and pole-mounted setups, offering flexibility in deployment.
    • Enhanced Security: Features two side locks and an optional standard key lock with a dustproof cover for secure access.

Specifications

Part No. FDB-T224B-144
Color Black / White / Gray / Light Gray
Dimension 245x296x95mm
Material of Housing ABS or PC/ABS
Protection class IP IP54
Main Cable Ports 2
Branch Cable Ports -
Drop Cable Ports 12
Fusion Splice 144FO (Max)
Number of Splice Tray 6 (Max)
Suitable Splitter 1:8 or 1:16 PLC Splitter per Tray
Number of Adapters -
Mount Way Wall / Pole Mounted
