Part No.: FDB-T227-144

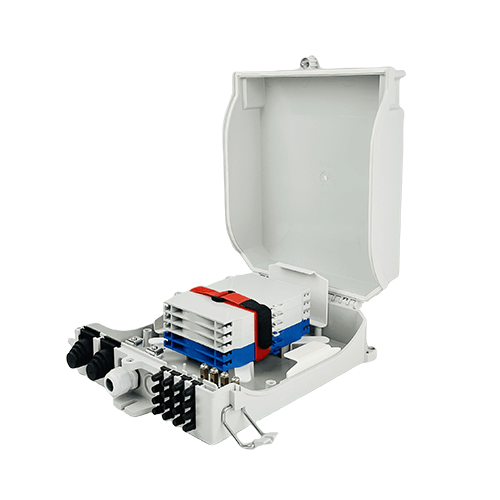

2-In 16-Out 144FO Fiber Distribution Box

2-In 16-Out 144FO Fiber Distribution Box

This outdoor FTTx distribution box is designed for fiber management systems, providing mechanical protection and efficient splicing for FTTx networks. Ideal for outdoor environments, it supports up to 144 fiber splices and is suitable for splicing and passive component integration.

Specification

Dimension (WxHxD): 218x293x95mm

Inlet / Outlet: 2 / 16

Branch (Blind) ports: 2

Splicing capacity: 144FO (Max)

Patching capacity: -

Suitable splitter: 1:8 or 1:16 PLC Splitter per Tray

Packing List

Carton Size: 53x35x41CM

Pieces per Carton: 6 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    This outdoor fiber distribution box offers a compact and efficient solution for managing fiber optic connections in outdoor installations. Designed without an adapter holder, it features 6 splice trays, supporting up to 144 fiber splices. The box is constructed with weather-resistant materials, providing protection with an IP55 rating. The cover opens to a 120-degree angle for easy access, and the unit supports both wall and pole-mounted installations, making it adaptable to various deployment scenarios.

  • Feature & Benifits

    Port capacities of the 2-In 16-Out 144FO Fiber Distribution Box:
    • Splicing capacity: 144FO (Max)
    • Patching capacity: -
    • Splitter capacity: 1:8 or 1:16 PLC Splitter per Tray
    Key features for the 2-In 16-Out 144FO Fiber Distribution Box:
    • 144 Fiber Splice Capacity: Supports up to 144 fiber splices across 6 splice trays, providing high-density fiber management.
    • Outdoor Durability: IP55-rated, offering weather-resistant protection for outdoor installations.
    • No Adapter Holder: Designed without an adapter holder, focused solely on splicing and fiber management.
    • Flexible Installation: Can be mounted on walls or poles, providing installation versatility.
    • Easy Access: Cover opens to a fixed 120-degree angle for convenient access during installation and maintenance.
    • Secure Locking System: Equipped with a secure screw lock system to ensure protection against unauthorized access.

Specifications

Part No. FDB-T227-144
Color Black / White / Gray / Light Gray
Dimension 218x293x95mm
Material of Housing ABS or PC/ABS
Protection class IP IP54
Main Cable Ports 2
Branch Cable Ports 2
Drop Cable Ports 16
Fusion Splice 144FO (Max)
Number of Splice Tray 6 (Max)
Suitable Splitter 1:8 or 1:16 PLC Splitter per Tray
Number of Adapters -
Mount Way Wall / Pole Mounted
