Part No.: FDB-T227-16

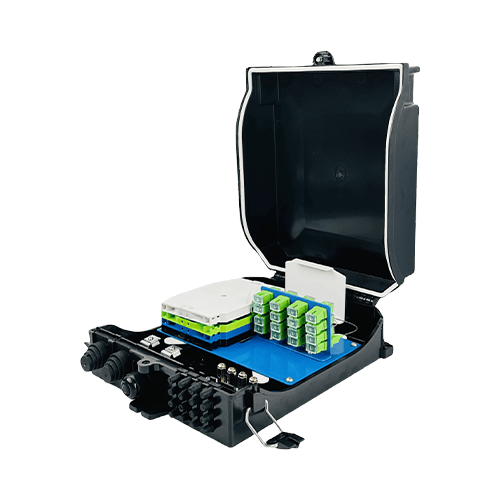

2-In 16-Out 16-Core Fiber Distribution Box

2-In 16-Out 16-Core Fiber Distribution Box

The FDB-T227-16 Outdoor FTTx Distribution Box is designed for FTTx projects, providing robust mechanical protection for fiber management systems. It supports splicing, patching, and passive component integration, making it an ideal solution for outdoor environments, with an IP54 rating for weather resistance.

Specification

Dimension (WxHxD): 218x293x95mm

Inlet / Outlet: 2 / 16

Branch (Blind) ports: 2

Splicing capacity: 144FO (Max)

Patching capacity: 16 (Max)

Suitable splitter: 1:8 or 1:16 PLC Splitter per Tray

Packing List

Carton Size: 53x35x41CM

Pieces per Carton: 6 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FDB-T227-16 is a versatile outdoor fiber distribution box that offers efficient management and protection for fiber optic connections in FTTx networks. Constructed with durable materials and featuring an IP54 rating, it ensures reliable operation in various outdoor conditions. The box accommodates up to 7 trays, including 6 splice trays and 1 splitter tray, supporting up to 16 SC adapters. It is designed with easy access in mind, with a 120-degree cover opening and a secure screw lock system. The unit supports wall and pole-mounted installations, making it adaptable to various deployment scenarios.

  • Feature & Benifits

    Port capacities of the 2-In 16-Out 16-Core Fiber Distribution Box:
    • Splicing capacity: 144FO (Max)
    • Patching capacity: 16 (Max)
    • Splitter capacity: 1:8 or 1:16 PLC Splitter per Tray
    Key features for the 2-In 16-Out 16-Core Fiber Distribution Box:
    • High Capacity: Accommodates up to 7 trays (6 splice trays + 1 splitter tray) with a splice capacity of 12/24 fibers per tray.
    • Outdoor Durability: IP55-rated, providing weather-resistant protection for outdoor installations.
    • Flexible Installation: Supports both wall-mounted and pole-mounted configurations.
    • Secure Locking System: Equipped with a special screw lock and key for enhanced security.
    • Micro PLC Splitter Support: Compatible with 1:8 or 1:16 micro PLC splitters for flexible network configurations.
    • Easy Access: Cover opens to a fixed position of 120 degrees, ensuring easy access during installation and maintenance.

Specifications

Part No. FDB-T227-16
Color Black / White / Gray / Light Gray
Dimension 218x293x95mm
Material of Housing ABS or PC/ABS
Protection class IP IP54
Main Cable Ports 2
Branch Cable Ports 2
Drop Cable Ports 16
Fusion Splice 144FO (Max)
Number of Splice Tray 6 (Max)
Suitable Splitter 1:8 or 1:16 PLC Splitter per Tray
Number of Adapters 16 (Max)
Mount Way Wall / Pole Mounted
