Part No.: FDB-T224C-24

2-In 5-Out 24-Core Fiber Distribution Box

2-In 5-Out 24-Core Fiber Distribution Box

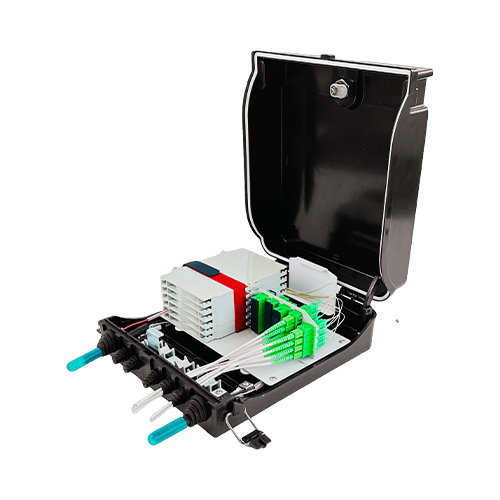

The FDB-T224C-24 Fiber Distribution Box is designed for FTTx projects, providing mechanical protection and fiber management for indoor and outdoor applications. With an IP55 rating, it’s ideal for environments requiring secure splicing, patching, and passive component integration, making it suitable for wall-mounted or pole-mounted installations.

Specification

Dimension (WxHxD): 245x296x95mm

Inlet / Outlet: 2 / 5

Branch (Blind) ports: -

Splicing capacity: 144FO (Max)

Patching capacity: 24 (Max)

Suitable splitter: 1:8 or 1:16 PLC Splitter per Tray

Packing List

Carton Size: 53x35x41CM

Pieces per Carton: 6 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FDB-T224C-24 is a versatile fiber distribution box that offers a robust solution for managing fiber optic connections in FTTx networks. It supports up to 24 SC adapters and accommodates 6 splice trays, each capable of handling 12 to 24 splices. The unit is built to withstand outdoor conditions with an IP55 protection rating, ensuring reliable performance in both indoor and outdoor settings. Its design includes a key lock with a dustproof cover and flexible mounting options, making it a dependable choice for network expansion and maintenance.

  • Feature & Benifits

    Port capacities of the 2-In 5-Out 24-Core Fiber Distribution Box:
    • Splicing capacity: 144FO (Max)
    • Patching capacity: 24 (Max)
    • Splitter capacity: 1:8 or 1:16 PLC Splitter per Tray
    Key features for the 2-In 5-Out 24-Core Fiber Distribution Box:
    • IP55 Protection: Ensures durability and protection against dust and water in both indoor and outdoor environments.
    • High Capacity: Supports up to 24 SC adapters and 6 splice trays with a total splice capacity of up to 144 fibers.
    • Versatile Installation: Compatible with both wall-mounted and pole-mounted configurations.
    • Secure Access: Features a key lock with a dustproof cover for enhanced security.
    • Flexible Fiber Management: Accommodates micro PLC splitters (1:8, 1:16) and offers 90 & 180-degree cover opening positions for easy access.

Specifications

Part No. FDB-T224C-24
Color Black / White / Gray / Light Gray
Dimension 245x296x95mm
Material of Housing ABS or PC/ABS
Protection class IP IP54
Main Cable Ports 2
Branch Cable Ports -
Drop Cable Ports 5
Fusion Splice 144FO (Max)
Number of Splice Tray 6 (Max)
Suitable Splitter 1:8 or 1:16 PLC Splitter per Tray
Number of Adapters 24 (Max)
Mount Way Wall / Pole Mounted
