Part No.: GJS-M3848

384FO 6 Round ports Fiber Dome Closure

384FO 6 Round ports Fiber Dome Closure

Specification

Dimension (WxHxD): 545xØ235mm (Clamp size: Ø305mm)

Inlet / Outlet: 2 Mid-span ports / 6 Round Port

Branch (Blind) ports: N/A

Splicing capacity: 192/384 Fusion splices

Patching capacity: N/A

Suitable splitter: N/A

Collapsible row

Carton Size: 630x630x580mm

PCS/CTN: 4PCS/CTN

Download File
Request for Quotation View full details

  • Description

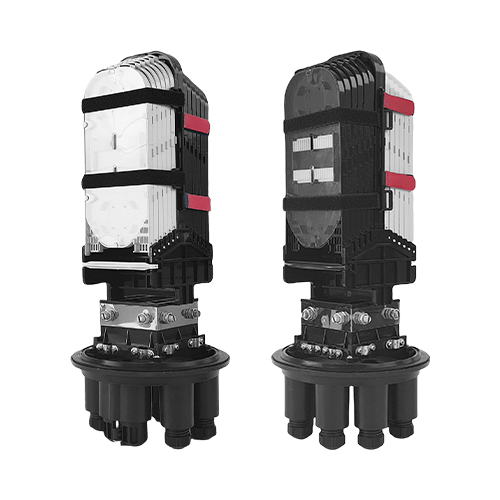

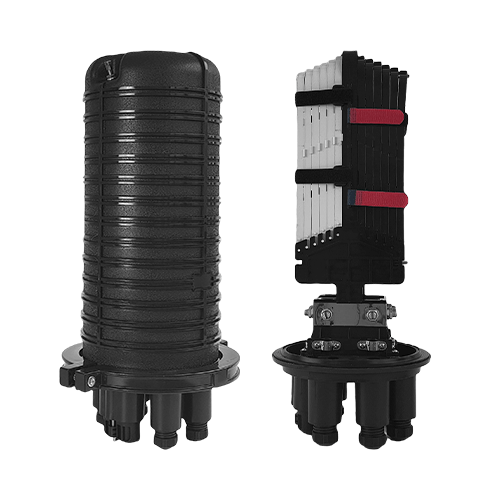

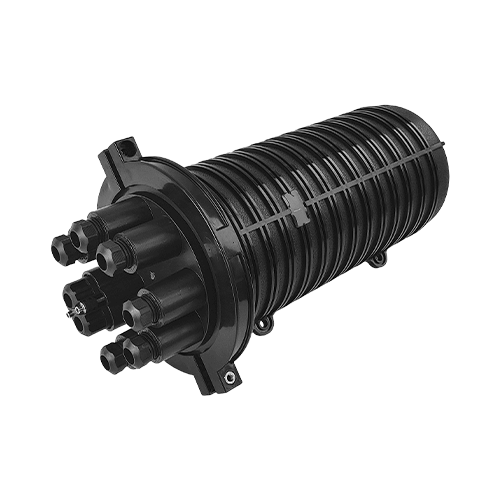

    The GJS-M3848 Fiber Dome Closure is a robust and versatile solution for protecting and managing fiber optic splices in large-scale network deployments. With its single-ended design and secure mechanical sealing system, the closure accommodates 12 splice trays, supporting up to 384 fusion splices. The dome’s durable construction, rated IP68, ensures long-term protection against water, dust, and environmental stresses, making it suitable for direct buried, aerial, or pole-mounted installations. The closure also features two mid-span ports and six drop cable ports, providing flexible cable management options.

  • Feature & Benifits

    Port capacities of the 384FO 6 Round ports Fiber Dome Closure:
    • Splicing capacity: 192/384 Fusion splices
    • Patching capacity: N/A
    • Splitter capacity: N/A
    Key features for the 384FO 6 Round ports Fiber Dome Closure:
    • IP68 Protection: Ensures maximum resistance against water and dust, suitable for outdoor use in harsh environments.
    • High Capacity: Supports up to 384 fusion splices across 12 splice trays, each with 16 or 32 splice slots.
    • Versatile Ports: Includes 6 drop cable ports and 2 mid-span ports for looped cables, allowing flexible network configurations.
    • Single-Ended Design: Simplifies installation and maintenance.
    • Durable Construction: Built from high-quality MPP material, providing long-term reliability and reducing maintenance needs.
    • Flexible Installation: Suitable for direct buried, aerial, and pole-mounted installations.

General Specifications

Part No. GJS-M3848
Color Black (Customizable)
Dimension 545xØ235mm (Clamp size: Ø305mm)
Material of Housing MPP
Protection class IP IP68
Main Cable Ports 2 Mid-span ports
Branch Cable Port N/A
Drop Cable Ports 6 Round Port
Fusion Splice 192/384 Fusion splices
Number of Splice Tray 12 PCS (Max.)
Suitable Splitter N/A
Number of Adapters N/A
Mount Way Underground / Aerial / Pole / Wall Mounted

  • Accessories

    Aerial kit / Pole-mounting kit / Wall-mounting kit * 1 SET

    • Fiber Splice Sleeves (1.2/60mm) * 192/384PCS
    • Nylon Tie ( 3X100 mm) * 24 PCS
    • Buffer Tube (50mm) * 6 PCS
    • Plastic Block (Big) * 6 PCS
    • Hexagon Wrench (Plastic) * 1 PC
    • Hexagon Wrench (L Type, M5) * 1 PC
    • Hexagon Wrench (L Type, M6) * 1 PC
    • Sand pape * 1 PC
    • Branch off Clip * 1 PC
    • Washer * 6 PCS
    • Lubricant * 1 PC
    • Cleaning Wipes * 1 PC
    • Electrical Tape * 1 PC
    • Metal Wrench * 1 PC

  • Packing List

    Configuration - Standard accessories, no adapters nor pigtails included.

    • Carton Size - 630x630x580mm
    • Carton G.W. - 25 KG
    • Carton Capacity - 4PCS/CTN

  • Regulatory Compliance/Certifications
