Part No.: GJS-M2887Q

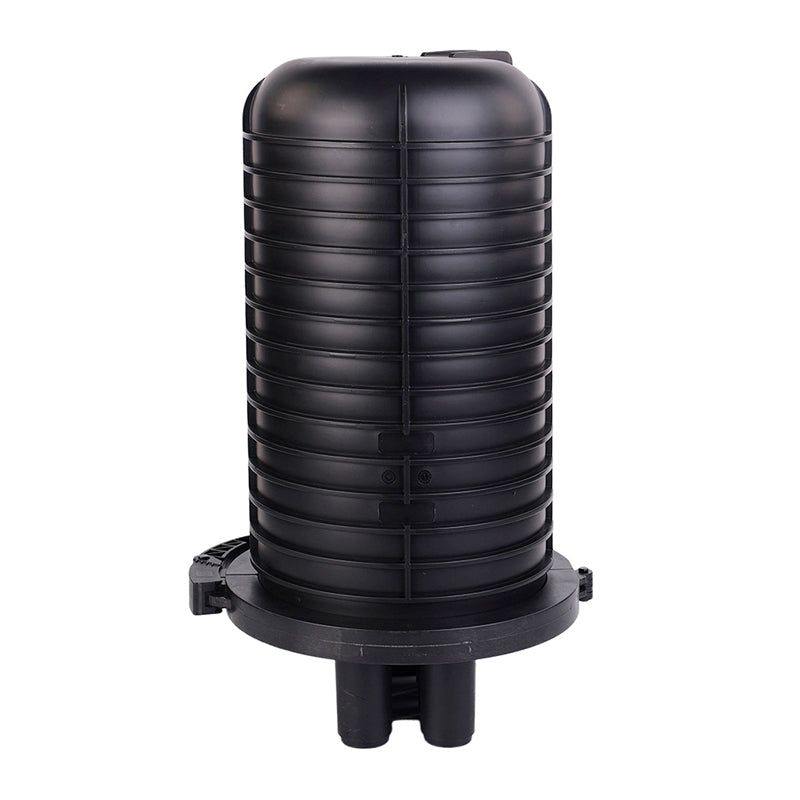

GJS-M2887Q 288F Mechanical Seal Fiber Dome Closure

GJS-M2887Q 288F Mechanical Seal Fiber Dome Closure

The GJS-M2887Q is a robust, IP68-rated fiber dome closure designed for harsh environments like aerial, underground, and duct applications. It securely supports high-density networks with a splicing capacity of up to 288 single-core fibers, ensuring reliable performance and protection for your fiber optic connections.

Specification

Dimension (HxDia.): 512 × Ø310.3 mm (20.2" × 12.2" dia.)

Inlet / Outlet: 2 ports (Ø11-14 mm) / 6 ports (Ø6-8 mm)

Sealing Type:

Splicing capacity: 288 Fibers (Max.)

Packing List

Carton Size: 650x450x380 mm

Pieces per Carton: 4 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-M2887Q Fiber Dome Closure is a high-performance solution designed for secure fiber optic splicing in harsh environments. With a robust IP68 rating, it ensures complete protection against water and dust, making it ideal for underground and duct applications. Supporting up to 288 single-core fibers, its modular design and tool-free mechanical sealing system simplify installation and maintenance, while customizable mounting and grounding options enhance versatility for high-density network deployments.

  • Feature & Benifits

    Port capacities of the GJS-M2887Q 288F Mechanical Seal Fiber Dome Closure:
    • Splicing capacity: 288 Fibers (Max.)
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-M2887Q 288F Mechanical Seal Fiber Dome Closure:

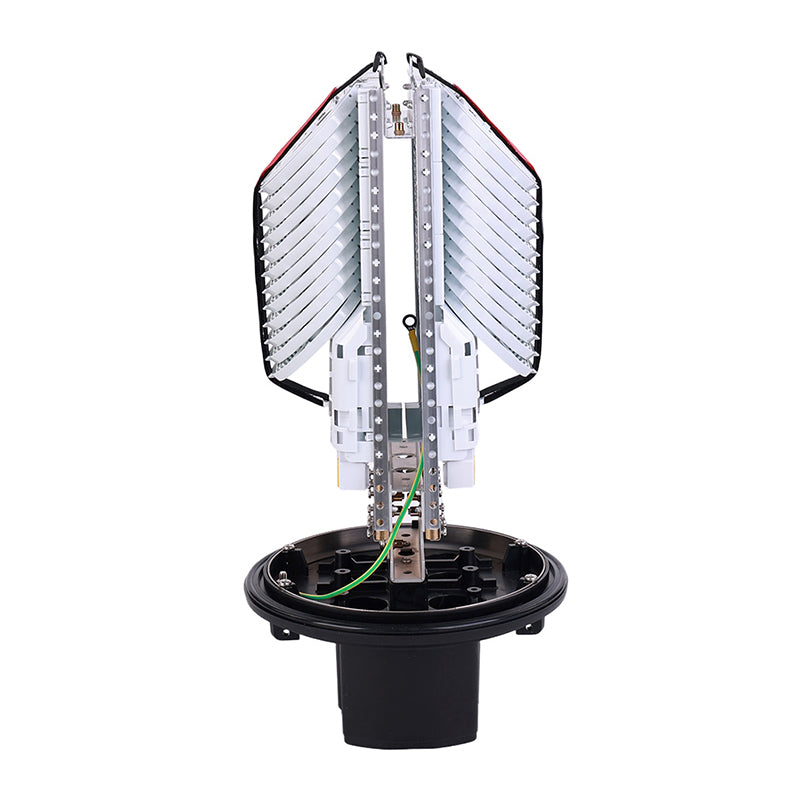

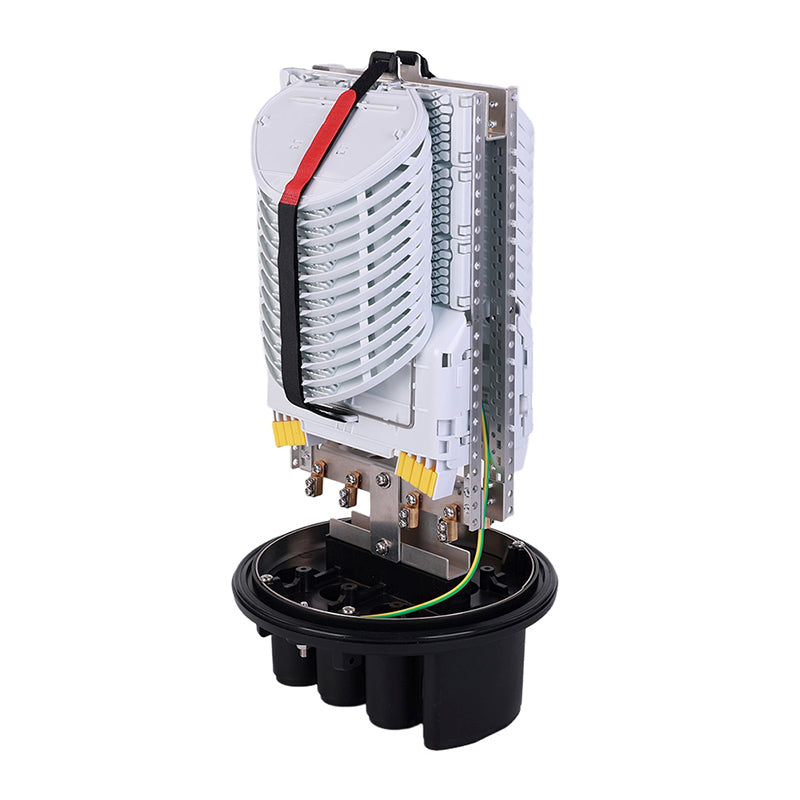

    • High-Capacity Splicing: Accommodates up to 288 fibers with 24 modular 12F splice trays for efficient organization.
    • IP68 Protection: Fully sealed against water and dust for reliable performance in extreme conditions.

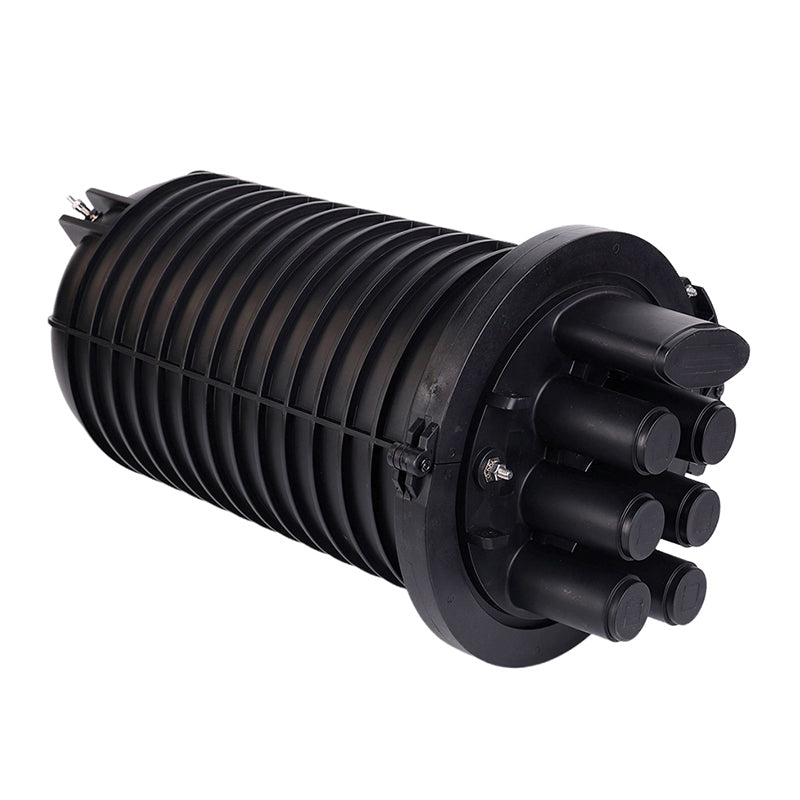

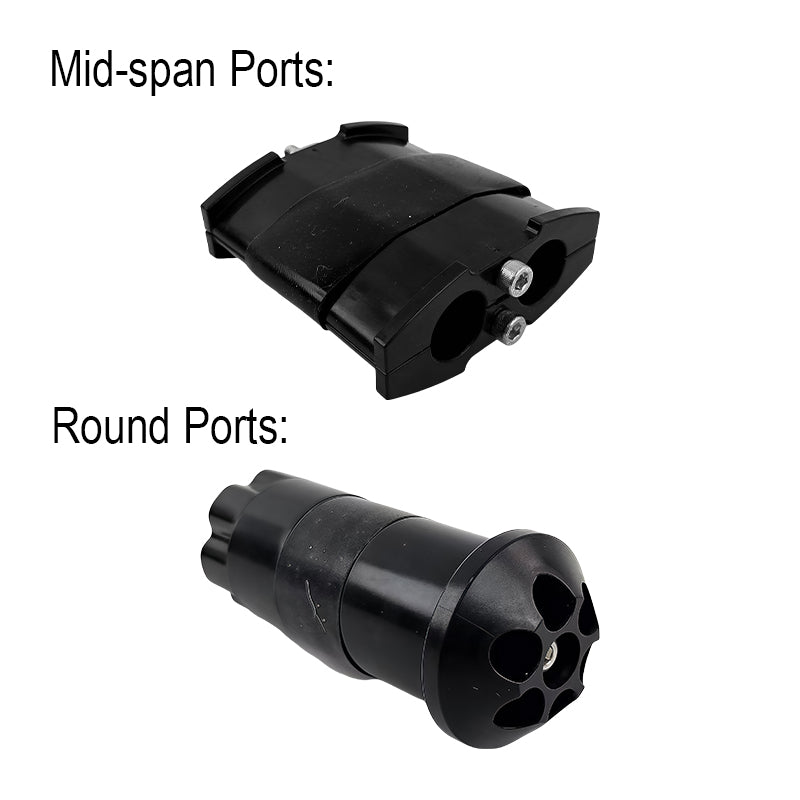

    • Flexible Cable Management: Features 2 mid-span (Ø11-14mm) and 6 exit ports (Ø6-8mm) for versatile cabling.
    • Tool-Free Sealing: Reusable mechanical sealing system eliminates the need for gels or tapes.
    • Customizable Installation: Supports aerial, wall, pole, or direct burial mounting with optional kits.
    • Enhanced Safety: Optional grounding device ensures electrical safety in demanding setups.
    • Pressure Testing: Optional inflating valve verifies sealing integrity for critical applications.
    • Durable Construction: Made from high-quality CPP and engineering plastic for long-lasting reliability.

Specifications

Part No. GJS-M2887Q
Color Black (customizable )
Dimension 512 × Ø310.3 mm (20.2" × 12.2" dia.)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 2 ports (Ø11-14 mm)
Cable Exit port 6 ports (Ø6-8 mm)
Fusion Splice 288 Fibers (Max.)
Number of Splice Tray 24 Trays (Max.)
Suitable Splitter
Number of Adapters
Mount Way Underground / Wall / Pole mounted
