Part No.: GJS-M1446C

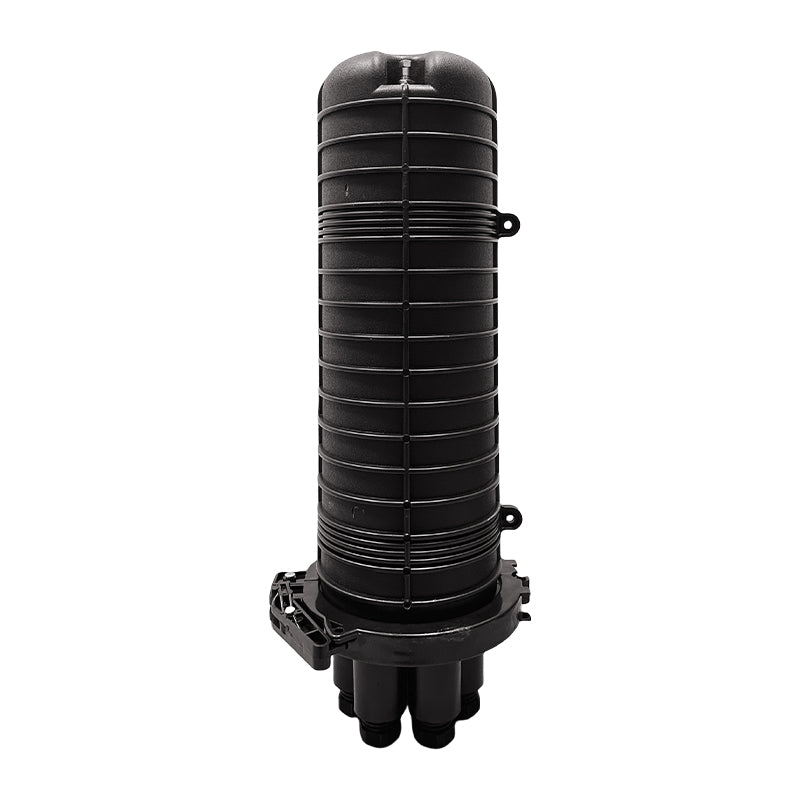

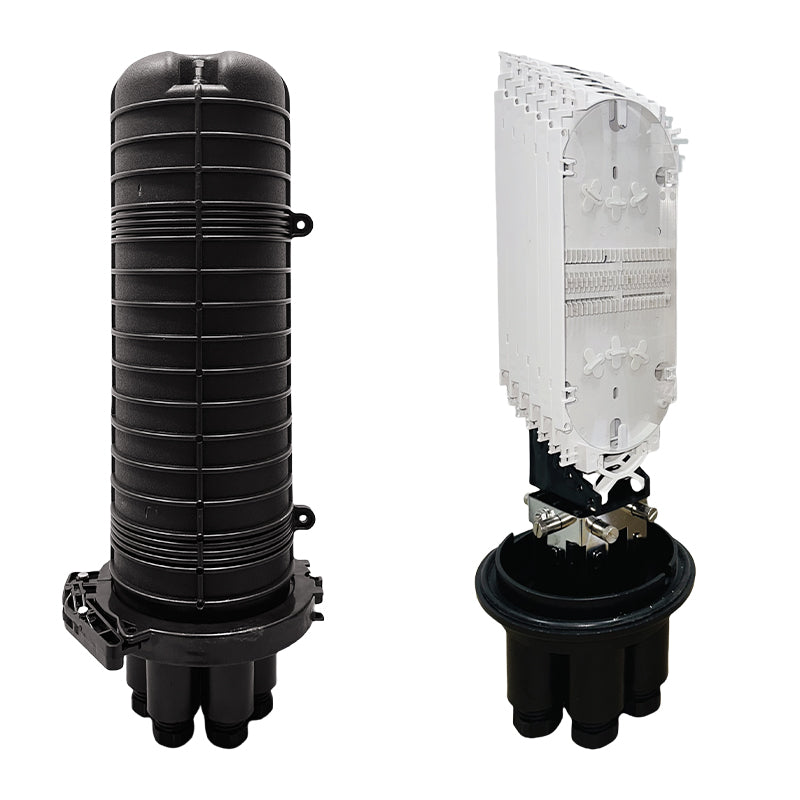

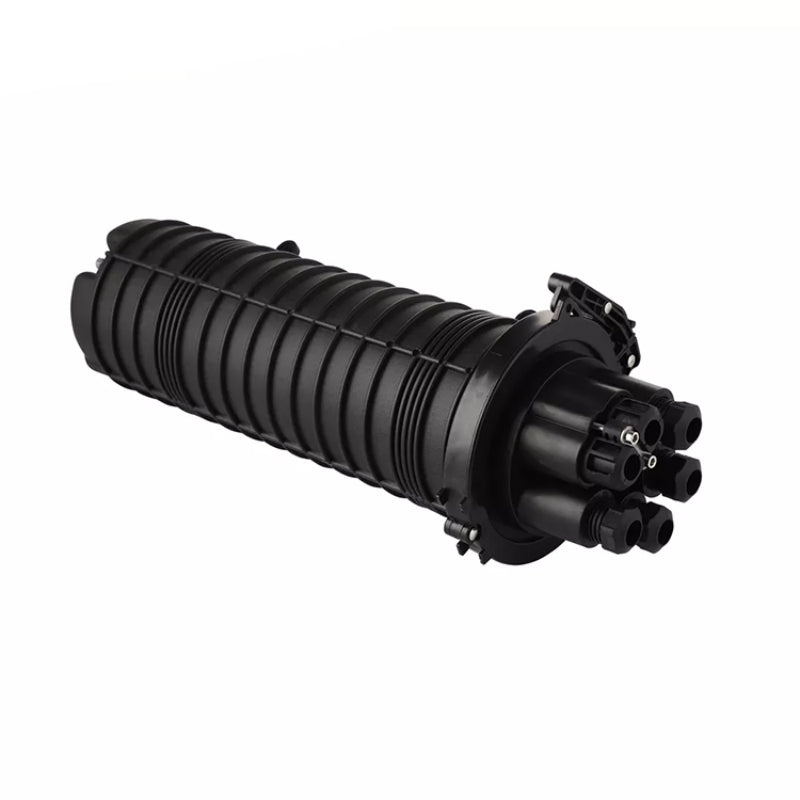

GJS-M1446C Mechanical Seal Dome Closure

GJS-M1446C Mechanical Seal Dome Closure

The GJS-M1446C is a reliable, IP68-rated fiber dome closure designed to protect fiber optic splices in tough environments like aerial, underground, and duct installations. With a splicing capacity of up to 144 single-core fibers, it ensures secure and efficient connectivity for high-density networks, offering robust protection and easy deployment.

Specification

Dimension (HxDia.): 550 × Ø155 mm (21.65 × 6.1 inches)

Inlet / Outlet: 2 × Ø12-19mm / 4 × Ø8-17mm

Sealing Type:

Splicing capacity: 144 FO (Single Core, Max.)

Packing List

Carton Size: 650x450x380 mm

Pieces per Carton: 4 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-M1446C is a high-performance, IP68-rated fiber dome closure built for secure fiber optic splicing in harsh environments, including aerial, underground, and duct applications. Constructed from corrosion-resistant PP+GF material, it supports up to 144 single-core fibers with a gel-free mechanical sealing system for easy, reusable maintenance. Its optimized fiber management and flexible mounting options ensure reliable, high-density network connectivity with minimal signal loss.

  • Feature & Benifits

    Port capacities of the GJS-M1446C Mechanical Seal Dome Closure:
    • Splicing capacity: 144 FO (Single Core, Max.)
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-M1446C Mechanical Seal Dome Closure:

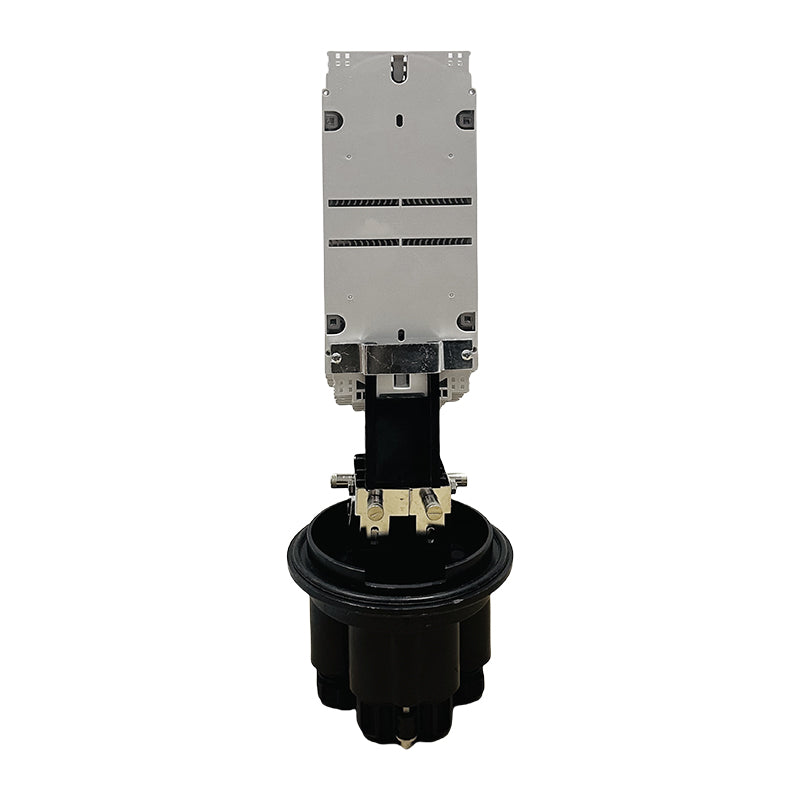

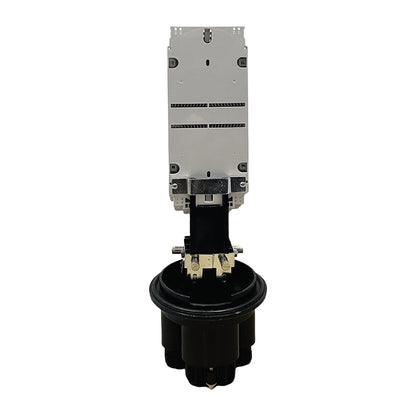

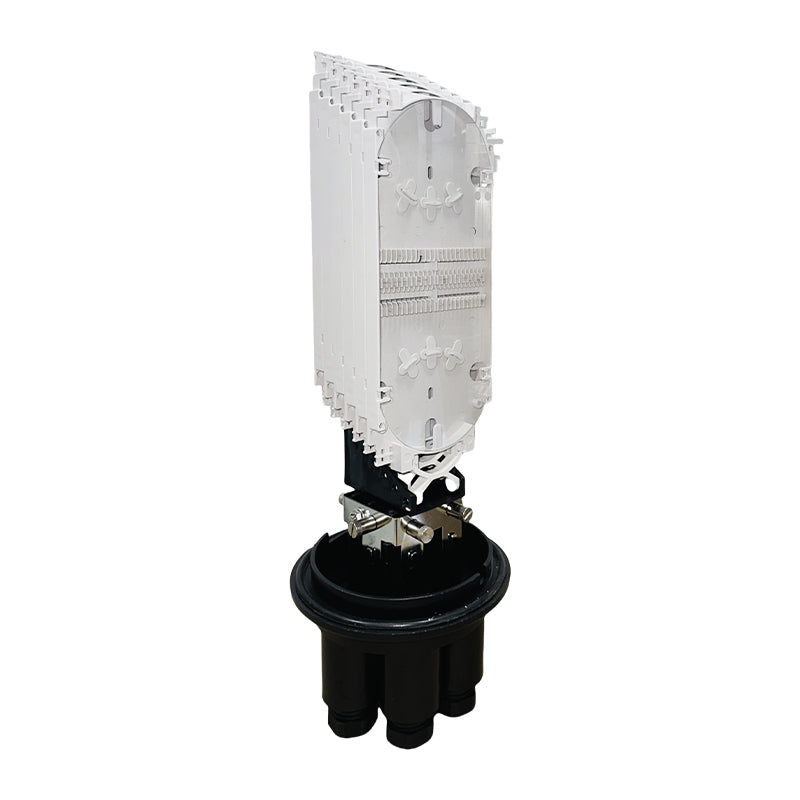

    • High-Capacity Splicing: Supports up to 144 single-core fibers across 24 booklet-style trays.
    • IP68 Protection: Corrosion-resistant PP+GF housing ensures durability in extreme conditions.
    • Gel-Free Sealing: Reusable mechanical sealing with rubber rings simplifies maintenance.
    • Optimized Fiber Management: 40mm bend radius trays minimize signal loss for reliable performance.

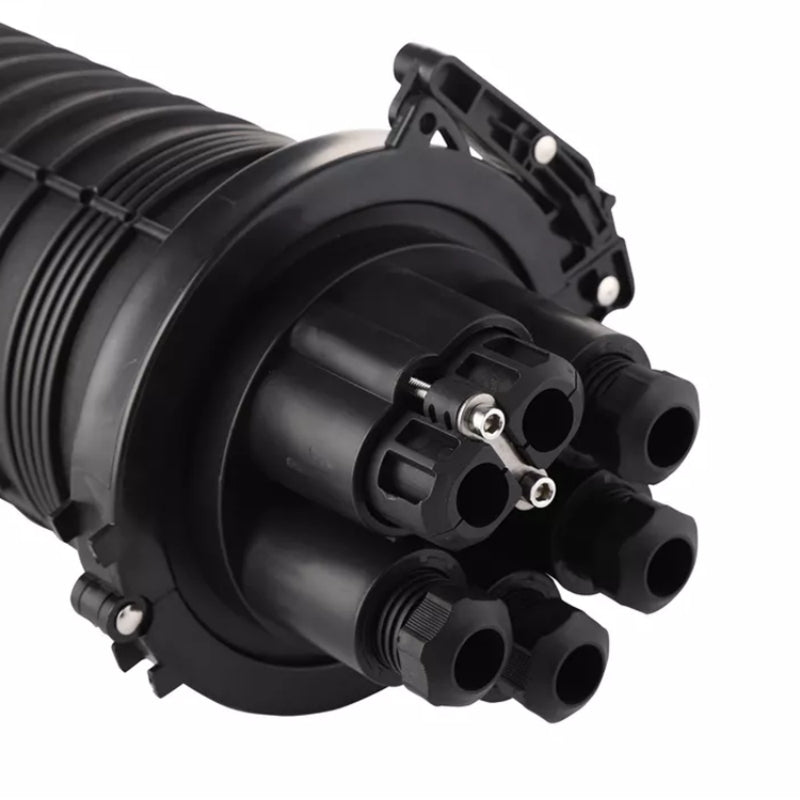

    • Flexible Cabling: Features 2 entry (Ø8-18mm) and 6 exit ports (Ø6-18mm) for versatile configurations.
    • Reusable Design: Non-destructive reopening maintains seal integrity during maintenance.
    • Customizable Mounting: Supports wall, pole, or direct burial with optional kits.
    • Enhanced Safety: Optional grounding device for added electrical protection.
    • Sealing Verification: Optional inflating valve for pressure testing in critical setups.

Specifications

Part No. GJS-M1446C
Color Black (customizable )
Dimension 550 × Ø155 mm (21.65 × 6.1 inches)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 2 × Ø12-19mm
Cable Exit port 4 × Ø8-17mm
Fusion Splice 144 FO (Single Core, Max.)
Number of Splice Tray 6 PCS (Max.)
Suitable Splitter
Number of Adapters
Mount Way Underground / Pole / Wall / Duct / Manhole
