Part No.: FDB-4D

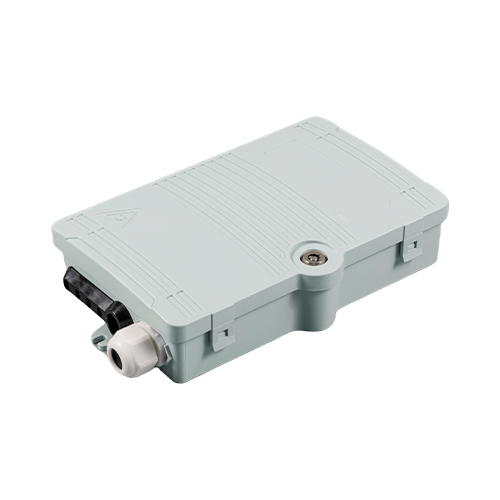

4 Cores 4 Ports Compact Fiber Distribution Box

4 Cores 4 Ports Compact Fiber Distribution Box

The FDB-4D Fiber Optic Distribution Box is designed for FTTH projects, providing mechanical protection for fiber management systems that include splicing, patching, and passive component integration. With an IP55 protection grade, it is suitable for wall-mount or pole-mount installations.

Specification

Dimension (WxHxD): 215 × 132 × 45mm

Inlet / Outlet: 1 (PG13.5) / 4

Branch (Blind) ports: N/A

Splicing capacity: 4 Fusion splices (Max.)

Patching capacity: 4 SC

Suitable splitter: 1:4 PLC Micro Splitter

Packing List

Carton Size:

Pieces per Carton:

Request for Quotation View full details
  • Description

    The FDB-4D is a Fiber Optic Distribution Box designed for the FTTH network. It can house up to 4 fusion splices and 4 SC adaptors and distributed into 4 drop cables. The closure is suitable for deployment in wall-mounted applications.

  • Feature & Benifits

    Port capacities of the 4 Cores 4 Ports Compact Fiber Distribution Box:
    • Splicing capacity: 4 Fusion splices (Max.)
    • Patching capacity: 4 SC
    • Splitter capacity: 1:4 PLC Micro Splitter
    Key features for the 4 Cores 4 Ports Compact Fiber Distribution Box:
    • High-Quality Construction: Made of ABS+PC engineering plastic for excellent strength and durability.
    • Waterproof Design: Suitable for both indoor and outdoor applications with wall-mounted and pole-mounted options.
    • Easy Access: Equipped with a secure shaped lock for easy opening and closing.

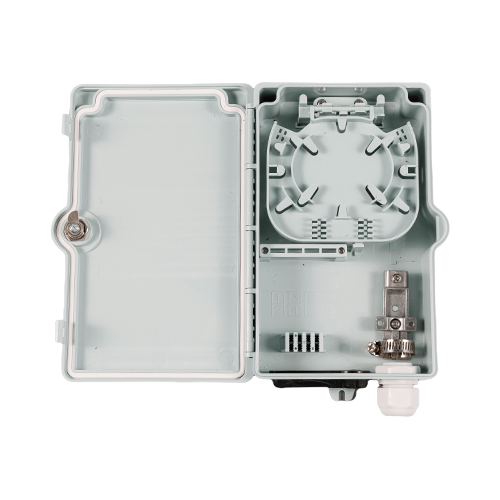

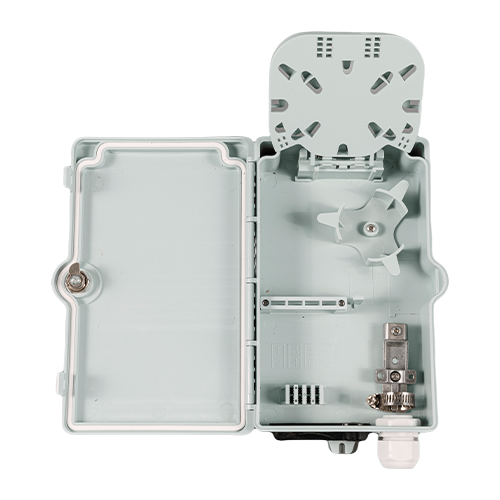

    • Efficient Fiber Management: Features a flip page and double-layer structure splice tray for easy installation and maintenance.
    • Clear Layout Records: Includes a layout record label for tracking main and branch distributions.
    • IP55 Protection: Ensures reliable performance in various environmental conditions.

Specifications

Part No. FDB-4D
Color Black / White / Gray / Light Gray
Dimension 215 × 132 × 45mm
Material of Housing ABS or PC/ABS
Protection class IP IP55
Main Cable Ports 1 (PG13.5)
Branch Cable Ports N/A
Drop Cable Ports 4
Fusion Splice 4 Fusion splices (Max.)
Number of Splice Tray 1 PC (Max.)
Suitable Splitter 1:4 PLC Micro Splitter
Number of Adapters 4 SC
Mount Way Wall-mounted
