Part No.: FDB-4C

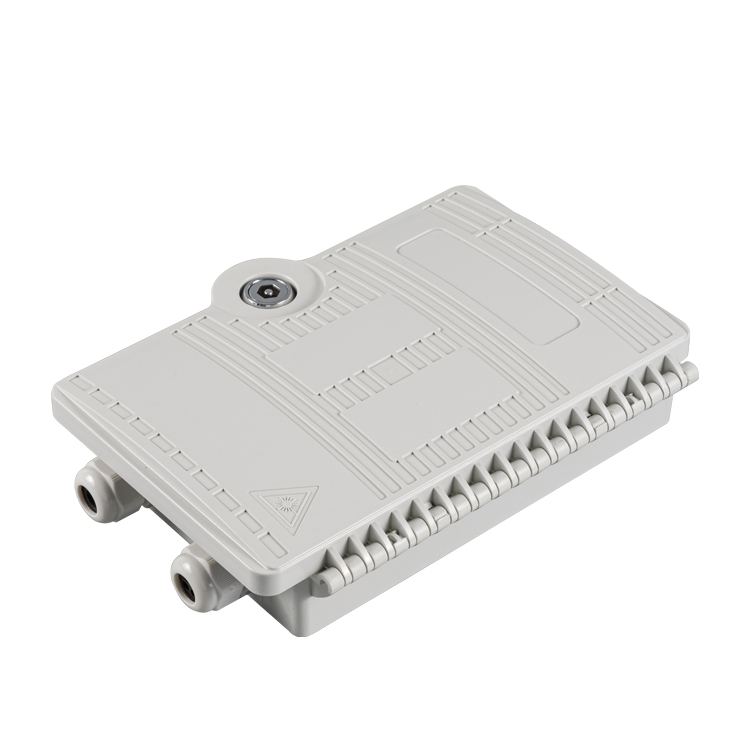

4 Core 3 Ports Fiber Optic Distribution Box

4 Core 3 Ports Fiber Optic Distribution Box

The FDB-4C FTTH Distribution Box is ideal for FTTH projects, providing mechanical protection for fiber management systems that include splicing, patching, and passive component integration. Rated IP65, it is suitable for both indoor and outdoor applications.

Specification

Dimension (WxHxD): 186 × 116 × 40 mm

Inlet / Outlet: 2 (PG13.5) / N/A

Branch (Blind) ports: 1 Blind Port (PG13.5)

Splicing capacity: 4 Fusion splices (Max.)

Patching capacity: 4 SC or 2 LC

Suitable splitter: 1:4 PLC Micro Splitter

Packing List

Carton Size:

Pieces per Carton:

Download File
Request for Quotation View full details

  • Description

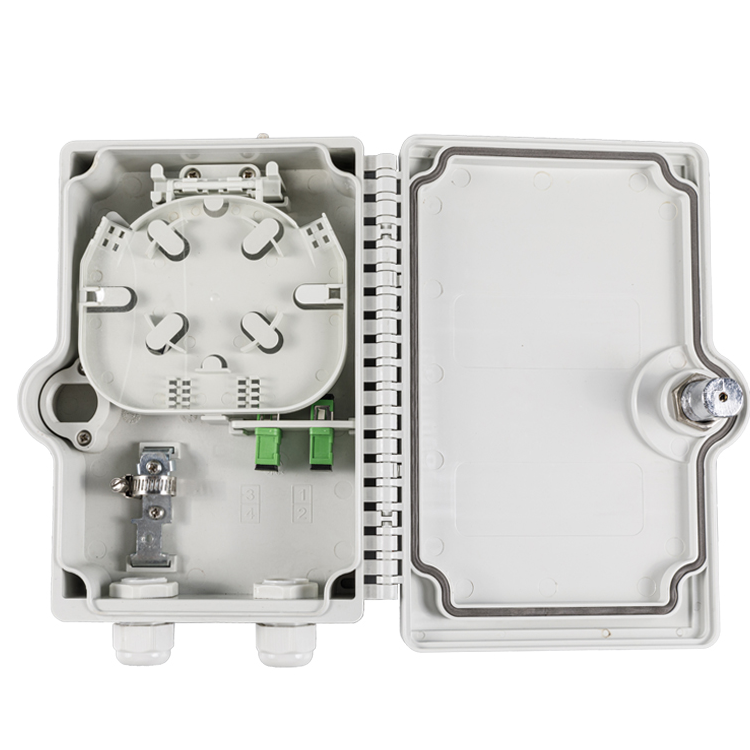

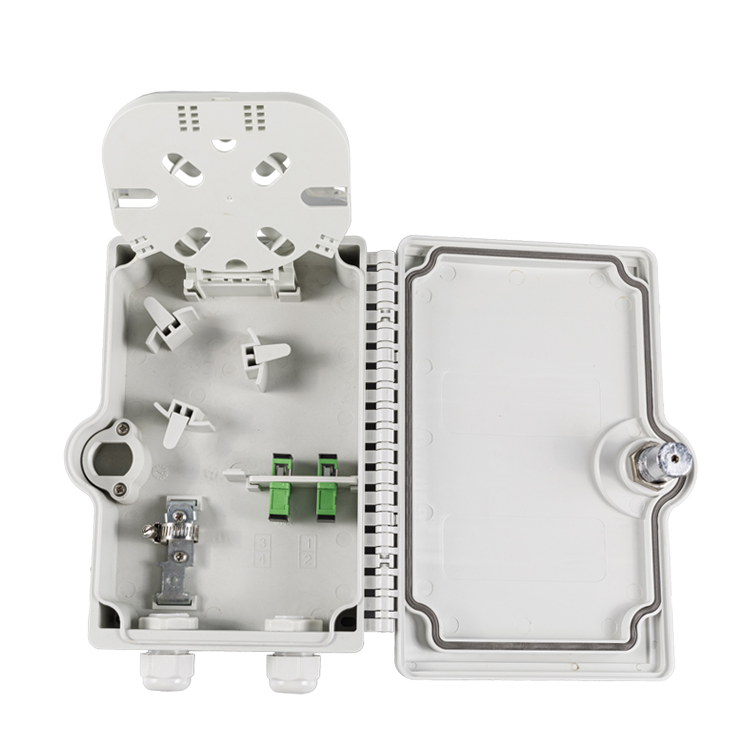

    The FDB-4C is a Fiber Optic Distribution Box designed for the FTTH network. It can house up to 4 fusion splices and 4 SC adaptors. The closure is suitable for deployment in wall-mounted applications.

  • Feature & Benifits

    Port capacities of the 4 Core 3 Ports Fiber Optic Distribution Box:
    • Splicing capacity: 4 Fusion splices (Max.)
    • Patching capacity: 4 SC or 2 LC
    • Splitter capacity: 1:4 PLC Micro Splitter
    Key features for the 4 Core 3 Ports Fiber Optic Distribution Box:
    • High Protection Rating: Rated IP65, ensuring durability and protection in various environments.
    • Versatile Cable Ports: Equipped with 2 PG13.5 cable ports and 1 blind port suitable for PG13.5.
    • Flexible Cable Compatibility: Supports cable diameters of 6-12mm and drop cables of 3-4mm, up to 4 pieces.
    • Splice Capacity: Supports 4 to 8 fusion splices, providing flexibility for different installation needs.
    • Adapter and Splitter Compatibility: Accommodates up to 4 SC or 4 LC Duplex adapters and supports micro PLC splitters (1x4, 1x8).
    • Easy Installation: Designed for straightforward installation with clear cable management and secure fixing options.

Specifications

Part No. FDB-4C
Color Black / White / Gray / Light Gray
Dimension 186 × 116 × 40 mm
Material of Housing ABS or PC/ABS
Protection class IP IP55
Main Cable Ports 2 (PG13.5)
Branch Cable Ports 1 Blind Port (PG13.5)
Drop Cable Ports N/A
Fusion Splice 4 Fusion splices (Max.)
Number of Splice Tray 1 PC (Max.)
Suitable Splitter 1:4 PLC Micro Splitter
Number of Adapters 4 SC or 2 LC
Mount Way Wall-mounted
